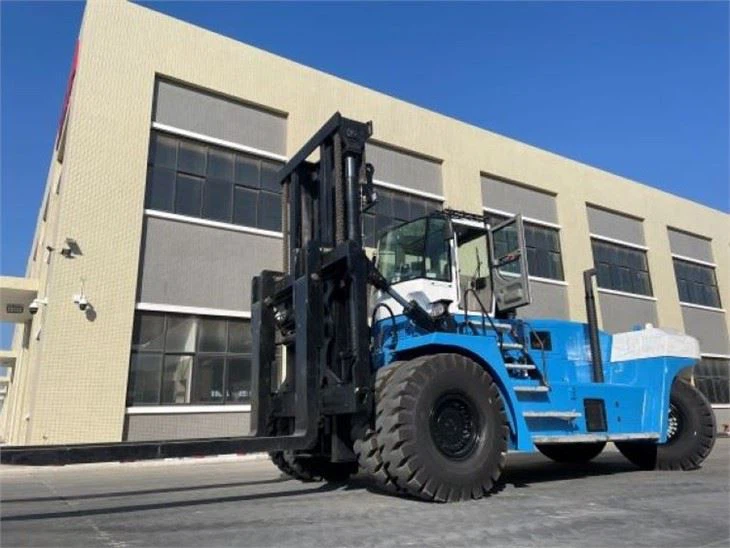

50 Ton High Lift Diesel Forklift
2, domestication parts, standardization, cost-effective, parts commonality good easy procurement, daily maintenance is simple and quick.
3. widely used in airports, ports, docks, train stations, warehouses and other big working intensity occasions for loading and unloading, stacking and short-distance transportation
The advantages of SOCMA 50t forklift
Engine：Cummins engine QSM11
Adopt Cummins engine QSM11, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation. QSM 11, 6 cylinders 11 liters engine producing 250KW.
Meet Singapore’s N.EA. emission regulation.
Transmission：Hangchi hydraulic power shift transmission
1, Hangchi hydraulic power shift transmission, powerful traction in combined operating condition, the transmission system is reliable and proven.
2, Adopt double turbine hydraulic torque converter, stepless speed change, single lever control for the speed changing, easier for operation.
Drive Axle： Kessler heavy duty wet brake driving axle
Adopt imported original Kessler heavy duty wet brake driving axle, Satisfy the continuous operation under harsh working conditions and the user's demand for maintenance-free brake;
Fully enclosed maintenance-free hydraulic wet brake, reliable and safe operation
Hydraulic system：Jinan pump, Haihong valves etc.
1, hydraulic load sensing steering system, rear steering axle with small turning radius, flexible and light steering
2, adopt double pump confluence working hydraulic system, greatly reduce fuel consumption, energy consumption.
3, Hydraulic system equipped with oil radiator and back pressure protection device, ensure the machine heat balance
Main body structure & Mast：
1, cooperated with Haixi institute of Chinese Academy of Sciences "overall structure optimization scheme", verifies the stiffness and strength calculation, fatigue life forecast on the forklift, comprehensive finite element mechanics analysis, structure design optimization, ensure the security of the products use.

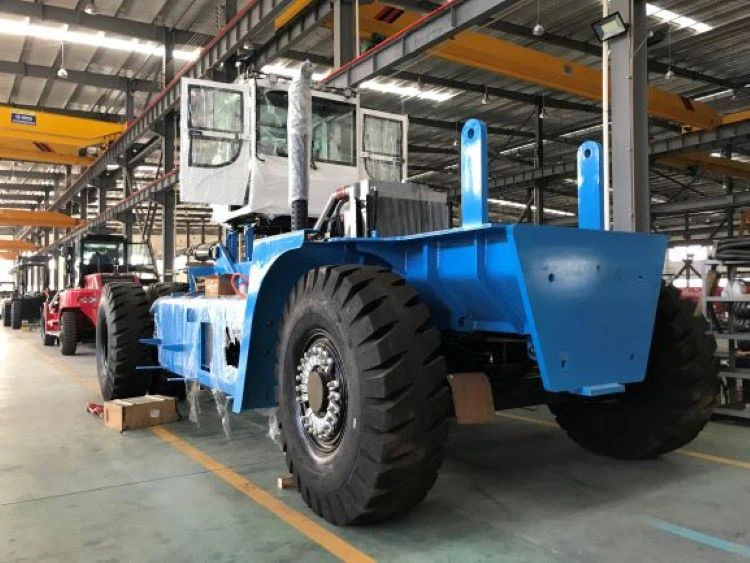

2, adopt long wheelbase, double box beam frame, can provide good rigidity and strength, to ensure the high reliability of forklift truck chassis
3, inner and outer mast adopt roller operate, the mast with roller bearing, movable bearing structure, long service life of the mast, high reliability
4, lifting height is 4 meters, standard mast
Fork carriage：
1, adopted quick hitch shelf, change quickly.
2, Hydraulic fork positioner, ergonomic – control within the cabin.
Tires：
With deep groove tires heavy-duty forklift tire, rear steering axle can swing around the center, have good traction and proven performance.
Closed cabin：
1, adjustable steering column direct, Pilot seat, joystick control distributing valve and working device, flexible and convenient manipulation (ergonomic design)
2, Luxurious wide-vision cabin with skylights, low noise, good sealing, excellent visibility for the operators.
3, Cabin is equipped with fan, radios, air conditioner, reversing display, can match with weighting machine according to customers’ requirements.
4, using domestic high-quality electrical components, maintenance-free battery, the wire resistance of flame-retardant materials, reliable and durable.
Summary：
1, the machine outlook is beautiful with smooth lines. Luxury wide view cabin, along with the skylight, low noise, well enclosed cabin.
2, domestication parts, standardization, cost-effective, parts commonality good easy procurement, daily maintenance is simple and quick.
3. widely used in airports, ports, docks, train stations, warehouses and other big working intensity occasions for loading and unloading, stacking and short-distance transportation
PIC;JOHN CHEN
WA;+86-18106938692
EMAIL;john@socmachinery.com
Related Products Video
PARAMETER
Technical Parameter | |||
Item | Decs. | Unit | Model |
HNF-500 | |||
Features | Rated Load | Q（t） | 50 |
Load center | c（mm） | 1200 | |
Wheelbase | y（mm） | 6000 | |
Weight | Weight | kg | 60000 |
Chassis | Tyre Specs.:Front | 18.00-25-40PR | |
Tyre Specs.:Rear | 18.00-25-40PR | ||
Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
Wheel tread:Front | b10（mm） | 3030 | |
Wheel tread:Rear | b11（mm） | 2786 | |
Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 5\10 |
Mast height(fork lowering) | h1（mm） | 5050 | |
Mast lifting height | h3（mm） | 4000 | |
Max.lifting height | h4（mm） | 6975 | |
Height to head guard(height to cab) | h6（mm） | 3900 | |
Overall length(with forks) | l1（mm） | 11460 | |
Fork front vertical surface to the rear end of the vehicle | l2（mm） | 8600 | |
Overall width | b1/b2（mm） | 4200 | |
Fork dimension | s/e（mm） | 3400X320X150 | |
| b3（mm） | 3400 | |
Mast min ground clearance (with load) | m1（mm） | 300 | |
Wheelbase center min ground clearance (with load) | m2（mm） | 460 | |
Minimum Turning radius | Wa（mm） | 8200 | |
Travel speed (with load/without load) | km/h | 22/24 | |
Performance | Maximum lifting speed (with load/without load) | mm/s | 150/200 |
Maximum Lowering speed (with load/without load) | mm/s | 300 | |
Traction | N | 250000 | |
Gradeability (with load/without load) | ％ | 25 | |
Driving brake | | ||
Engine | Engine brand/model | Xi'an Cummins QSM11 250kW Cylinder No. 6 | |
Others | | 3/3 | |
Attachments working pressure | bar | 180 | |
Attachments using oil amount | l/min | 80 | |
Related Products Photos
Socma Forlift related news
Precautions before driving the electric forklift:
1. Check whether the water in the radiator is full before driving the electric forklift;
2. Whether the oil level of the engine oil is within the scale of the oil dipstick;
3. Check whether the free stroke of the clutch pedal and foot brake pedal is normal, and whether the brake is flexible and reliable.
4. Check whether the pipelines and joints of each system of the electric forklift are damaged, loose, oil leaking, water leaking, air leaking, etc.
5. Check whether the electrical connectors, wiring, and lighting are intact and firm, whether the electrical equipment and signals are normal; whether the battery liquid level and specific gravity meet the requirements; whether the generator is charged; whether the front and rear tire pressure meets the requirements, and remove the embedded tread pattern Between stones and inclusions.
6. Check whether the fastening bolts and nuts are loose.
7. Before driving, after starting the engine, run the engine idling for about 5 minutes, and allow full-load operation when the water temperature rises above 60°C; when idling, check whether the readings of the various meters meet the specified requirements, or repair it.
8. The brake system should be checked carefully before driving, and it is required to be sensitive and reliable, otherwise it should be adjusted.
Four-wheel electric forklift small rechargeable 1.5 ton-2T cold storage warehouse battery balance weight
1. Adopt AC drive and control technology
Compared with the DC control system, the system efficiency is increased by 10%; the AC motor and electronic control have the characteristics of self-protection and maintenance-free, which improve the system reliability and reduce system maintenance; the performance of the whole vehicle is improved, and the operation efficiency is high.
2. The vehicle has high performance and high working efficiency
Full-load driving speed, fast lifting, full-load climbing ability, main performance indicators meet or exceed similar products of international famous brands.
3. Friendly man-machine interface, interactive multi-function LCD instrument;
The appearance of the instrument is beautiful, the display information is large, and the man-machine interface is friendly;
It can clearly and intuitively display the status of the entire vehicle at all stages, ensuring that the operator fully understands the situation of the vehicle;
With control parameter setting function, it is easy to optimize driving performance and lifting performance;
With the function of speed mode selection, it can meet the operating speed requirements of operators of different driving ages and driving habits, ensuring efficiency while ensuring driving comfort and safety;
The fault and misoperation alarm function better guarantees the safety and reliability of the whole machine.
4. AC motor, no carbon brush, maintenance-free;
AC motor, no carbon brush, maintenance-free. The motors have temperature sensors and speed sensors, which can sense the running status of the motor and feed the information back to the controller for processing to avoid accidental damage to the motor.
5. AC electric control, self-protection, maintenance-free;
The AC electric control has the functions of overcurrent protection, overheating protection, sequence protection, reverse protection and so on. When the temperature of the controller is too high or the current exceeds the working range of the electric control, or the logic relationship is wrong, the controller will give an alarm and even stop working automatically, effectively ensuring that the electric control is not damaged and safety accidents can also be avoided.
