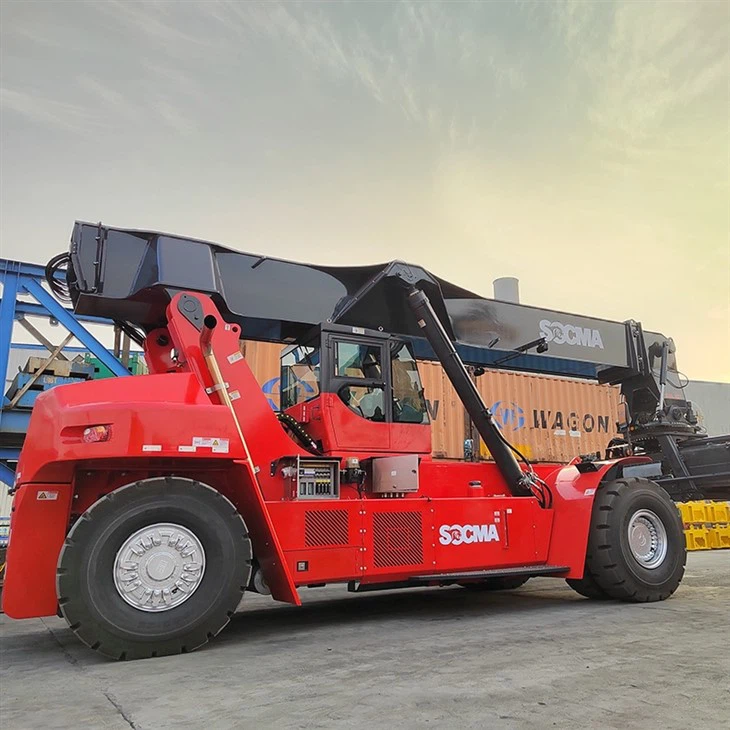

HNRS4531-5E 45 Ton Electric Reach Stacker For Loaded Containers

FULLY-ELECTRIC POWER PACK：High Safty Standard LFP Cell,High Capacity Module,High Strength Frame,High Energy Density,High Ingress Protection 68



LONG ENOURANCE：8 or 10 Hours of Continuous Operation,Option of Battery Changing(Container Handler is available),Wreless Charging and Fast Charging (R&D),Heat Management System, Heating/Cooling/Temperature Balance,Comply with GB/T31467.3-2015



INTELLIGENCE PLATFORM：Remote Management(APPand PC),Operation Assistance System (CCTV),Detailed HMI System,Visualization Parameters,Automatic Fault Detection System



OPERATING AND COMFORT：CAN Bus Communication,Proportional inching Control,Ergonomics Design of Cabin,Wide View of Cabin,Seat Comfort Configuration



ISAFETY AND RELIABILITY：FEA of Main Structure,Dynamic Anti-overturning Control,Anti-collision Technology,Fireproof,Waterproof and Short-circuit Proof,Hydraulic Heat Dissipation and Pipe Explosion-proof



Model	HNRS4531-5E
Battery Module	CATL/BYD
Self-weight	72t
Spreader	SOCMA
Axles	FUWA/KESSLER+CO
Tyre	18-25*40PR
Rated Load	45t/31t/16t,At 1st Row/2nd Row/3rd Row
Max.Lifting Height	15100 mm
Stacking Ability	5*9.5ft, 6 Layers by 6E Series
Hoist Speed(Loaded/Unloaded)	420/250 mm/s
Lowing Speed(Loaded/Unloaded)	450/300 mm/s
Travele Speed (Loaded/Unloaded)	25/21 km/h
Gradeability(Loaded/Unloaded)	39/32%
Overall Size	11300*6053~12185*4625mm
Min. Turning Radius	8000 mm
