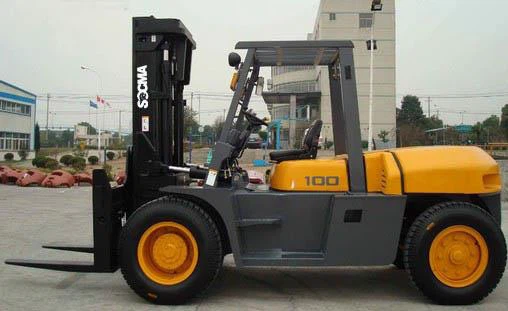

10 Ton Forklift

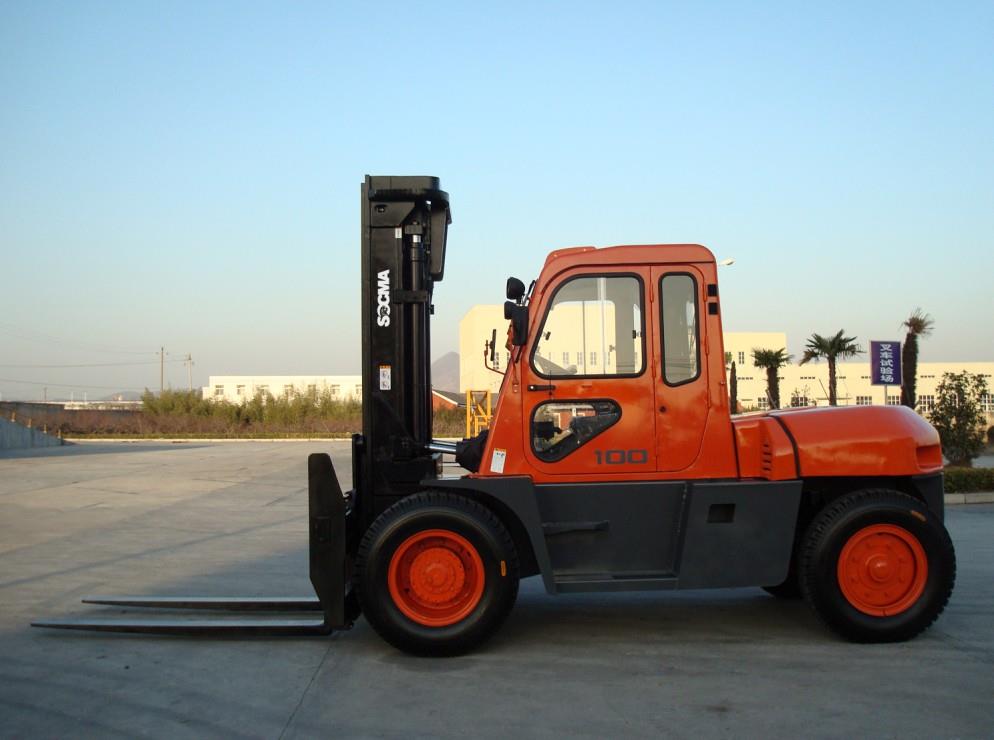

SOCMA 10 Ton diesel forklift


Introduction
SOCMA 10 ton diesel forklift uses CHAOCHAI and ISUZU engine and excellent
hydraulic system. It is well-known for its good stability and flexible
utility. This diesel counterbalance forklift truck is often used for
lifting and transporting cargoes in outdoors. Compared to gasoline
engine, diesel engine enjoys the advantages of better power performance
and low fuel charge. The engine is not easy to flame out even at low
speed. It owns strong overload capacity and long-term working capacity.
10 ton forklifts Parameters
| SPECIFICATION | Item | FD100T | |
| Load capacity | kg | 10000 | |
| Load center | mm | 600 | |
| DIMENSIONS | Max. lifting height | mm | 3000 |
| Free lift | mm | 205 | |
| Fork size | mm | 1220*175*75 | |
| Overall length(without fork) | mm | 4255 | |
| Total width | mm | 2245 | |
| Mast height (fork lowering) | mm | 2850 | |
| Overall height fork raised | mm | 4330 | |
| Height to head guard | mm | 2560 | |
| Truck weight | kg | 12450 | |
| TIRES | front/rear | 4/2 | |
| front axle | 9.00x20-14PR | ||
| rear axle | 9.00x20-14PR | ||
| ENGINE | Model | ISUZU 6BG1 | |
| Rated power | JIS PS | 112/2000 | |
| Rated torque | JIS kg-m | 42.5/1500 | |
| Number of cylinders | 6 | ||
| Dislacement | L | 6.494 | |
10 ton diesel forklifts Optional Engines:chaochai,cummins,Mitsubishi












10-Ton Diesel Forklift: Features, Applications, and Other Aspects
A 10-ton diesel forklift is a common type of lift truck used in industrial production. It is characterized by its large payload capacity, high operating efficiency, and powerful performance. It is widely used in factories, warehouses, railway stations, and ports for loading and unloading packaged goods.
Features
Large payload capacity: The payload capacity can reach 10 tons, which can meet the needs of heavy-duty operations.- Powerful performance: It can be equipped with well-known brand diesel engines such as Isuzu and Cummins to output strong power and ensure operating efficiency.
- Easy to operate: Drivers can quickly get started without professional training.
- Convenient maintenance: It can reduce operating costs.
Applications
10-ton diesel forklifts are widely used in the following places:
- Factories: Used for loading and unloading packaged goods such as steel, wood, and chemical raw materials.
- Warehouses: Used for storage and sorting of packaged goods such as food, beverages, and electronic products.
- Railway stations and ports: Used for loading and unloading goods such as containers and roll-on/roll-off cargo.
10-ton diesel forklifts can also be used in the following special places:
- Mines: Used for loading and unloading ores.
- Construction sites: Used for loading and unloading construction materials.
- Ports: Used for loading and unloading goods from ships.
Other Aspects
The other aspects of 10-ton diesel forklifts include:
- Safety: 10-ton diesel forklifts are equipped with various safety devices such as anti-tilting devices, anti-side-falling devices, and anti-collision devices to ensure the safety of operations.
- Comfort: The cab of a 10-ton diesel forklift is spacious and comfortable, equipped with air conditioning, audio, and other facilities to improve the comfort of the driver.
Purchasing Tips
When purchasing a 10-ton diesel forklift, you should choose the right model and configuration according to your actual needs. The main factors to consider are:
- Payload capacity: Choose the appropriate payload capacity according to your needs.
- Power: Choose the appropriate power according to your needs.
- Operating system: Choose the appropriate operating system according to the level of the operating personnel.
- Maintenance: Choose the appropriate maintenance plan according to the use environment.
10-ton diesel forklifts are indispensable equipment in industrial production and have a wide range of applications. When purchasing a 10-ton diesel forklift, you should choose the right model and configuration according to your actual needs to ensure the safety and efficiency of operations.
