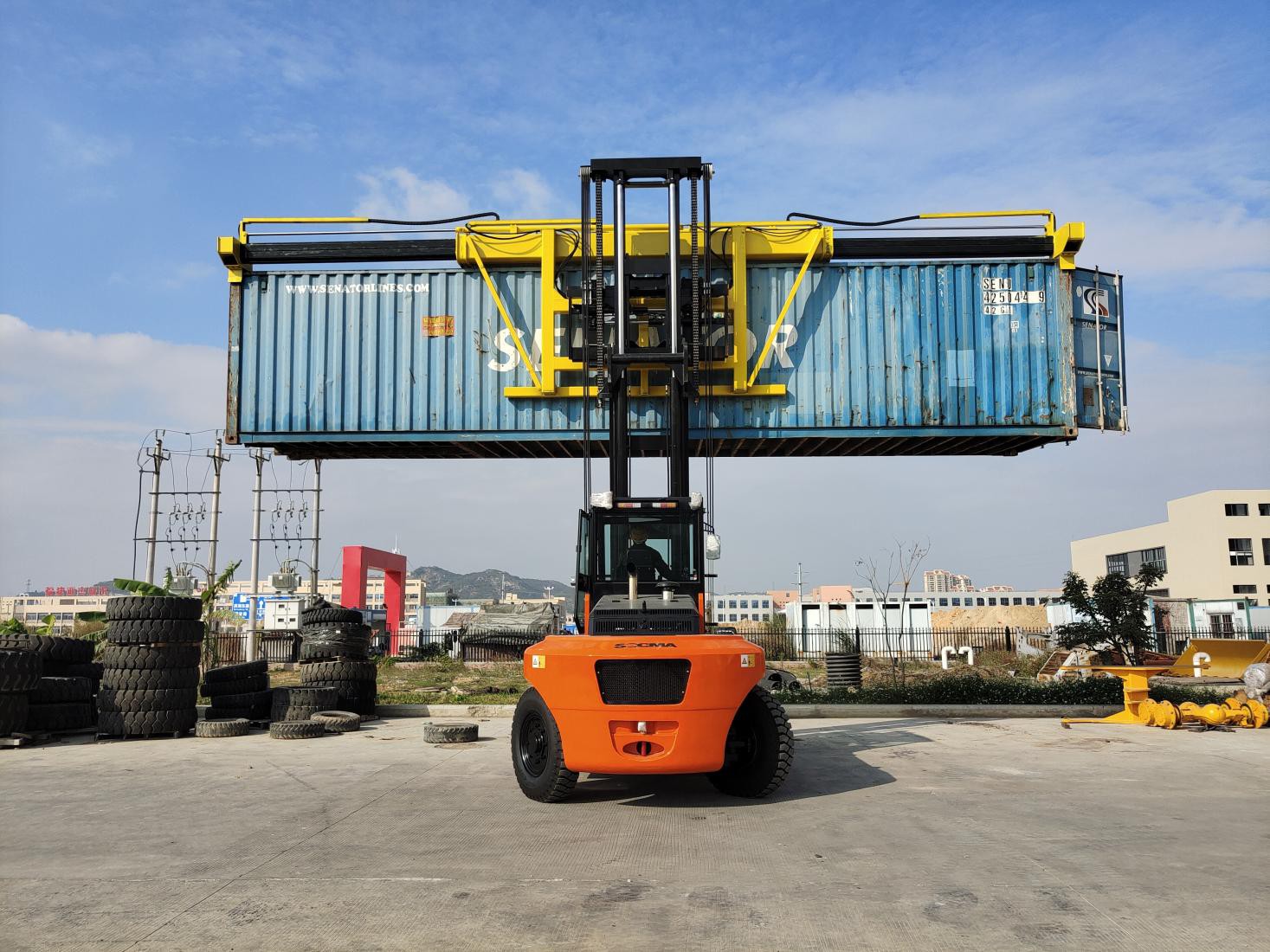

15 Ton Forklift With Empty Container Handler
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of 15 ton forklift with empty container handler in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
|
POS |
ITEM DESCRIPTION |
UNIT |
HNF-150S |
|
Character |
Rated Capacity |
kg |
15000 |
|
Load Centre |
mm |
600 |
|
|
Front Overhang |
mm |
860 |
|
|
Wheelbase |
mm |
3300 |
|
|
Weight |
Self weight |
kg |
19500 |
|
Axle load, full loaded (front/rear) |
kg |
24215/2785 |
|
|
Axle load, without loaded (front/rear) |
kg |
6375/8625 |
|
|
Chassis |
Tyre, front |
|
12.00x20/16PR |
|
Tyre, rear |
|
11.00x20/16PR |
|
|
Wheels, numbers front/rear(x=driving wheel) |
|
4×/2 |
|
|
Wheel tread, front |
mm |
1740 |
|
|
Wheel tread, rear |
mm |
2013 |
|
|
Basic dimension |
Mast Tilt Angle (front/rear) |
° |
6/12 |
|
Mast height (fork lowered) |
mm |
5390 |
|
|
Lifting height |
mm |
7500 |
|
|
Overall length (with fork) |
mm |
6355 |
|
|
Overall width |
mm |
2250 |
|
|
Fork size |
mm |
2400x180x90 |
|
|
Carrier width |
mm |
2280 |
|
|
Min. ground-clearance-mast, full loaded |
mm |
225 |
|
|
Min. ground-clearance-centre of wheelbase |
mm |
350 |
|
|
Min. turning radius |
mm |
4450 |
|
|
Parameter |
Speed (full loaded/without load) |
km/h |
23/26 |
|
Max. lifting speed (full loaded/without load) |
m/s |
220/270 |
|
|
Gradeability (full loaded/without load) |
% |
20/22 |
|
|
Service brake |
|
Disc brake |
|
|
Engine |
Brand |
|
6BT5.9-C130 |
|
Rated power |
KW |
97 |
|
|
Rated rotor speed |
min-1 |
2200 |
|
|
No.of Cylinder |
cm3 |
6 |
|
|
Others |
Transmission gears(front/rear) |
|
2/2 |
| SOCMA FORKLIFT SUITABLE FOR CONTAINER LIFTING | |||||
| MODEL | LIFTING HEIGHT | LOADER CENTR(MM) | FORK LENGTH(MM) | CONTAINER TYPE AND LAYERS | CAPACITY |
| HNF250 | 2STAGE 3.5M | 1250 | 2440 | 2X20GP | 25TON |
| 2STAGE 5.5M | 1250 | 2440 | 3X20GP | 25TON | |
| HNF280 | 2STAGE 3.5M | 1250 | 2440 | 2X20GP | 28TON |
| 2STAGE 5.5M | 1250 | 2440 | 3X20GP | 28TON | |
| HNF300 /HNF320 | 2STAGE 3.5M | 1250 | 2440 | 2X20GP | 30TON/32TON |
| 2STAGE 5.5M | 1250 | 2440 | 3X20GP | 30TON/32TON | |
| 2STAGE 6.3米 W/FIXED CONTAINER SPREADER | 3X20GP（DISTATCH SPREADER） 2X40HQ |
30TON/32TON（3X20GP） 25TON（2X40HQ） |
|||
| HNF300H | 2STAGE 8.1M | 4X20GP | 1ST-3RDLAYER: 30TON 4TH LAYER: 18TON |
||
| HNF350 | 2STAGE 3.5M | 1250 | 2440 | 2X20GP | 35TON |
| 2STAGE 5.5M | 1250 | 2440 | 3X20GP | 35TON | |
| 2STAGE6.3M W/FIXED CONTAINER SPREADER | 3X20GP（DISTATCH SPREADER） 2X40HQ |
35TON（3X20GP） 30TON（2X40HQ） |
|||
| 2STAGE6.2M，W/ADJUSTALBE CONTAINER SPRADER （WEIGHT INCREASED: 3.5TON） |
2X40HQ 2X20GP |
25TON | |||
| 2STAGE9.2M,W/ADJUSTALBE CONTAINER SPRADER （WEIGHT INCREASED: 3.5TON） |
3X40HQ 3X20GP |
25TON | |||
| HNF450 | 2STAGE6.2M，W/ADJUSTALBE CONTAINER SPRADER （WEIGHT INCREASED: 3.5TON） |
2X40HQ | 30TON | ||
| 2STAGE9.2M,W/ADJUSTALBE CONTAINER SPRADER （WEIGHT INCREASED: 3.5TON） |
3X40HQ | 30TON | |||
| 2STAGE12.2M,W/ADJUSTALBE CONTAINER SPRADER （WEIGHT INCREASED: 3.6TON） |
4X40HQ | 30TON | |||
| HNF120 | 2STGE7.5M W/ADJUSTIBLE CONTAINER SPRADER | 3X40HQ | EMPTY CONTAINER | ||
| HNF160 | 2STGE7.5M W/ADJUSTIBLE CONTAINER SPRADER (WIDEN BRIDGE） |
4X40HQ | EMPTY CONTAINER | ||
