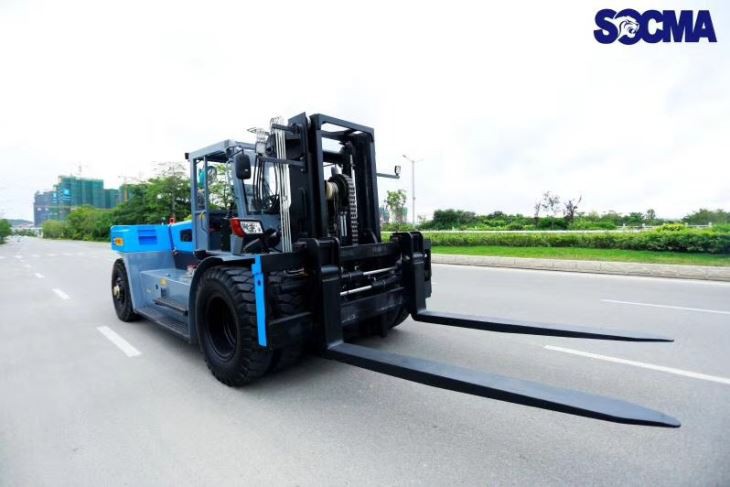

16 Ton Forklift wz CUMMINS Diesel Engine
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of 16 ton forklift wz cummins diesel engine in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.

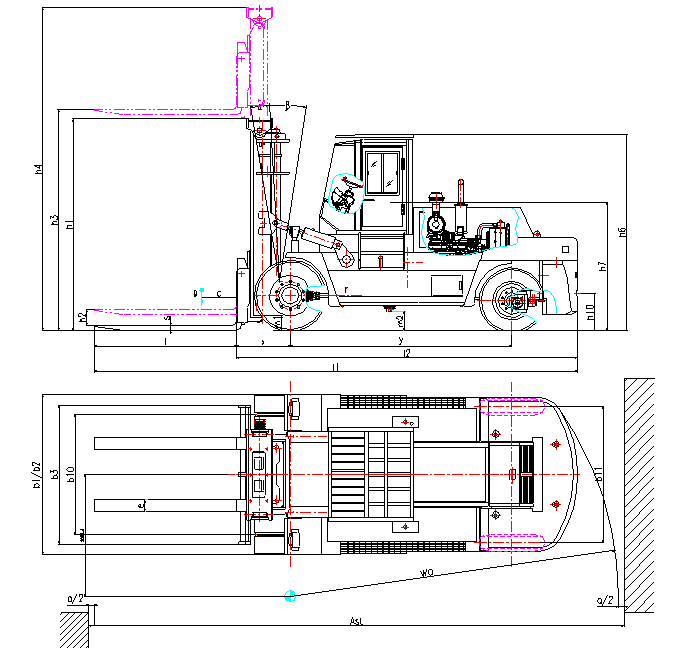

Rated Load | Q（t） | 16 |
Load center | c（mm） | 900 |
Wheelbase | y（mm） | 3800 |
Weight | kg | 22500 |
Tyre Specs.:Front | 12.00-24-18PR | |
Tyre Specs.:Rear | 12.00-20-18PR | |
Wheel front/rear | 4\2 | |
Wheel tread:Front | b10（mm） | 2060 |
Wheel tread:Rear | b11（mm） | 2330 |
Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
Mast height(fork lowered) | h1（mm） | 3675 |
Mast lifting height(Max) | h3（mm） | 3500 |
Overall Mast Height | h4（mm） | 5375 |
Height to head guard | h6（mm） | 3365 |
Overall length (with forks) | l1（mm） | 7640 |
Overall length(without fork) | l2（mm） | 5840 |
Overall width | b1/b2（mm） | 2750 |
Fork size | s/e（mm） | 2440X220X110 |
Fork carriage width | b3（mm） | 2700 |
Mast min ground clearance(with load) | m1（mm） | 265 |
Wheelbase ground clearance(with load) | m2（mm） | 325 |
Min.Turning radius | mm | 5800 |
Travel speed(with load/without load) | km/h | 26/30 |
Max.lifting speed(with load/without load) | mm/s | 250/260 |
Max.Lowering speed(with load/without load) | mm/s | 430/330 |
Traction | kN | 150 |
Gradeablity (with load/without load) | ％ | 20/21 |
Brake | Hydraulic clamp disc | |
Engine Manufacurer/model | Optional 1 | WEICHAI |
| Model: WP12G340 /250KW | ||
Optional 2 | CUMMINS | |
Model | QSB6.7-C190 | |
Displacement | 6700 cc | |
Power output | 142KW 2200rpm | |
Cylinder No. | 6 | |
Transmission gears (Front/rear) | F/R | 2\1 |
Attachments working oil pressure | Mpa | 16 |
Attachments using oil amount | L/min | 60 |
