10 TON FORKLIFT ENGINE ISUZU

Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of 10 ton forklift engine isuzu in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.



PIC:John  Email:John@socmachinery.com Whatsapp:+8618106938692







PRODUCT PARAMETER:



Model			UNIT	FD100T
Specifications	Power Unit			Diesel
	Operator Type
	Transimission Box Type
	Rated Capacity		kg	10000
	Load Center		mm	600
	Max.Lifting Height		mm	3000
	Tire Type
	Tire Number	Front		4
		Rear		2
	Tire Size	Front		9.00×20-14PR
		Rear		9.00×20-14PR
Performance	Lifting Speed	Loaded	mm/s	380
		Unloaded		410
	Lowering Speed	Loaded	mm/s	450
		Unloaded		400
	Travelling Speed	Loaded	km/h	26
		Unloaded		30
	Max.Gradeability (Loaded)		%	20
	Max.Drawbar Pull (Loaded)		kg	5850
	Mast Tilting Angle (Fwd/Bwd)		deg	6/12
	Free Lifting Height		mm	180
	Turning Radius		mm	3900
Dimensions	Overall Length (with fork)		mm	5480
	Overall Width		mm	2160
	Overhead Guard Height		mm	2560
	Fork Size (LxWxT)		mm	1220x175x80
	Mast Height (Fork lowered)		mm	2850
	Battery (Voltage/Capacity)		V/Ah	2×12/90
	Truck Weight		kg	12500
	Fuel Tank Capacity		L	143
Engine	Brand			ISUZU	CHAOCHAI
	Model			6BG1	6102
	Rated Power		kw/rpm	82.3/2000	80.8/250
	Rated torque		n-m/rpm	418/1500	354/1650
	Number Of Cylinder			6	6
	Displacement			6.49	5.78

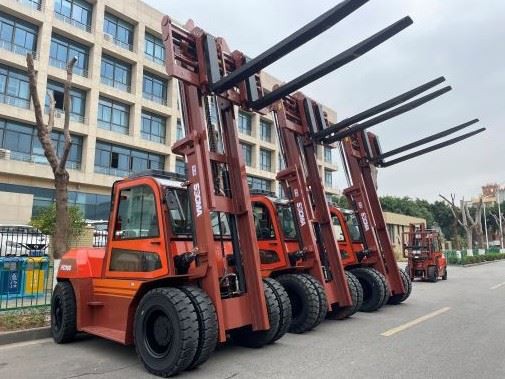

Products Photos:
