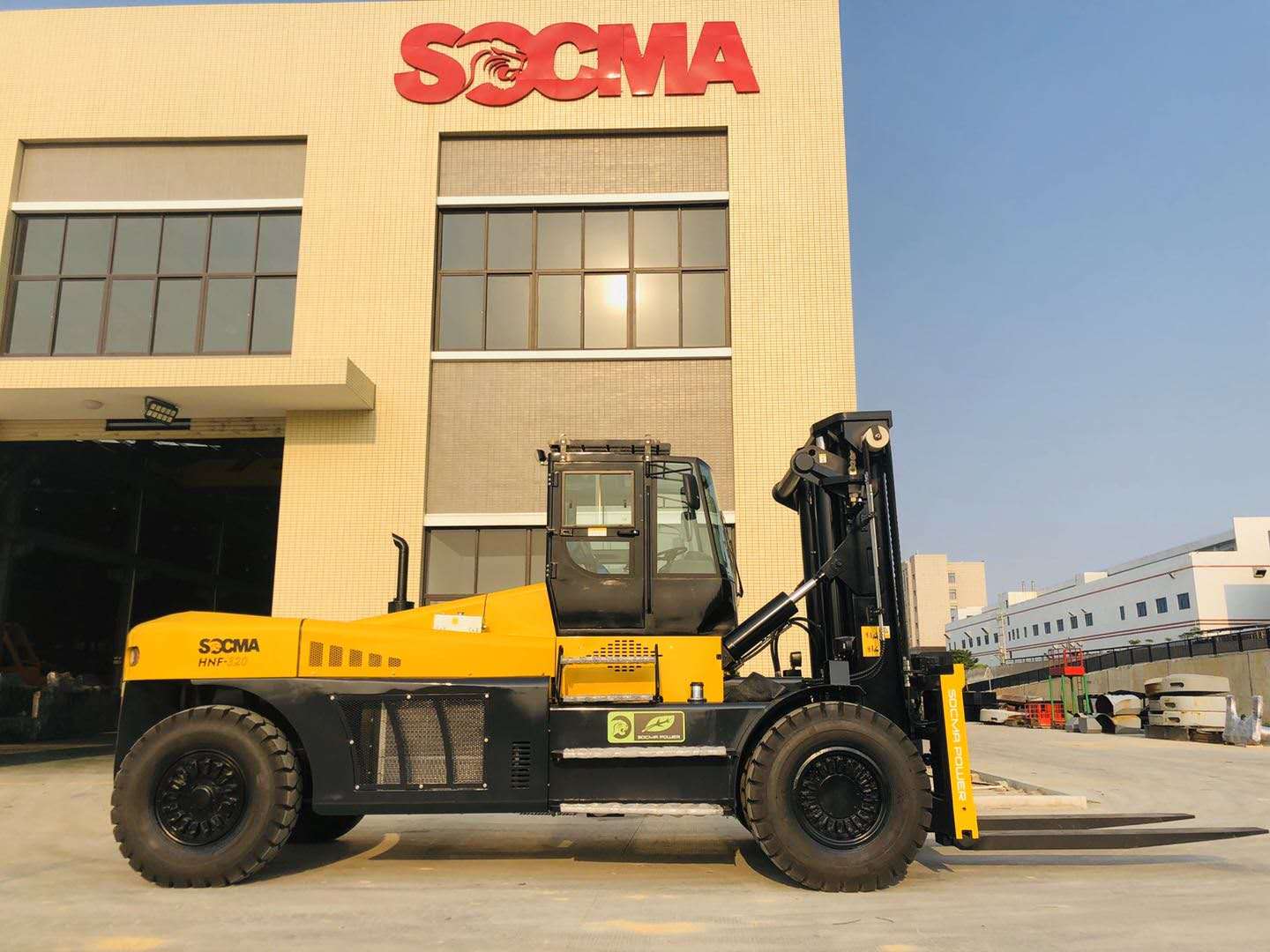

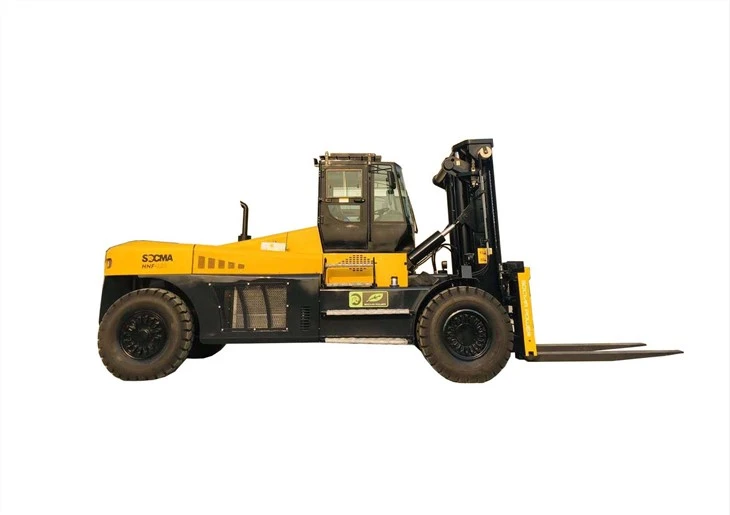

32 Ton Heavy Duty Counterbalance Forklift Truck
Weichai/Cummins engine
SOCMA brand Electro-controlled transmission
Luxury cab with A/C and reverse monitor
Quick change shelf with side shifter
With weight scales
2440mm fork length
6200mm lifting height
Pneumatic tires (4/2)
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of 32 ton heavy duty counterbalance forklift truck in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
Configuration | Model | Unit | CPCD320N |
Vehicle configuration | HNF-320N | ||
Character | Rated Capacity | t | 30 |
Load Centre | mm | 1250 | |
Weight | Operation Weight | kg | 41000 |
Chassis | Tyre no. | 4/2 | |
Tyre, front | 14.00-24-32PR | ||
Tyre, rear | 14.00-24-32PR | ||
Wheels, numbers front/rear (x=driving wheel) | 4×/2 | ||
Wheel track, front | mm | 2420 | |
Wheel track, rear | mm | 2390 | |
Basic dimension | Mast Tilt Angle (front/rear) | ° | 6/12 |
Mast height (fork lowered) | mm | 3950 | |
Lifting height | mm | 3500 | |
Mast height (fork lift) | mm | 5700 | |
Height to head guard (height to cab)-h6 | mm | 3800 | |
Overall length (with fork) | mm | 9590 | |
Fork front vertical surface to the rear end of the vehicle-12 | mm | 7150 | |
Overall width | mm | 3200 | |
Fork size | mm | 110x320x2440 | |
Carrier width | mm | 3100 | |
Min. ground clearance-mast, full loaded | mm | 350 | |
Min. ground clearance-center of wheel base | mm | 410 | |
Min. turning radius | mm | 7260 | |
Parameter | Speed (full loaded/without load) | km/h | 24/28 |
Max. lifting speed (full loaded/without load) | m/s | 260/280 | |
Max. lowering speed (full loaded/without load) | m/s | 250/180 | |
Gradeability (full loaded/without load) | % | 20/21 | |
Traction | kN | 220 | |
Service brake | Hydraulic clamp disc | ||
Engine | Option one | Weichai | |
Option two | Dongfeng Cummins | ||
Option three | Dongfeng Cummins | ||
Cylinder No. | 6 | ||
Attachments working pressure | Mpa | 18 | |
Attachments using oil amount | l/min | 80 | |
Fork: standard with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: Full cab with AC, heater and rear-view display.
Engine: low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection.
Steering system: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
