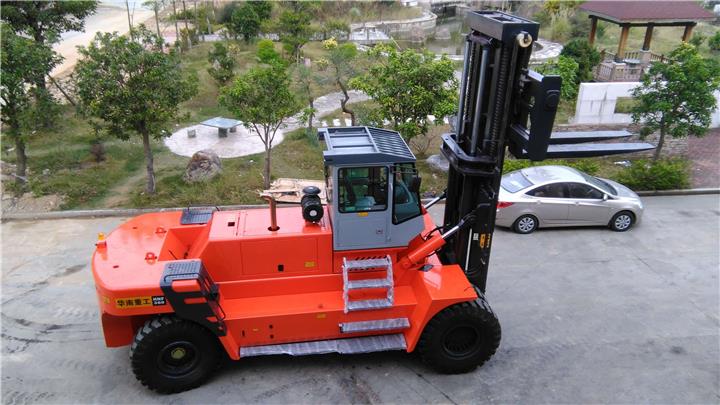

36 ton diesel forklift
Load center:1250 mm
Operating weight: 43,500 kgs
Wheel base: 4,800 mm
1, hydraulic load sensing steering system, rear steering axle with small turning radius, flexible and light steering 2, use Hangchi, Sanchi planet type hydraulic power shift transmission, big...
HNF-360
Rated load: 36,000 kgs
Load center:1250 mm
Operating weight: 43,500 kgs
Wheel base: 4,800 mm
1, hydraulic load sensing steering system, rear steering axle with small turning radius, flexible and light steering
2, use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition, the transmission system more reliable.
3, cooperate with hercynian institute of Chinese Academy of Sciences "overall structure optimization scheme", verifies the stiffness and strength calculation, fatigue life forecast on the forklift, comprehensive finite element mechanics analysis, structure design optimization, ensure the security of the products use
4, Variable speed control valve matched with neutral starter, the machine start more secure.
5, No spokes plate type rim, increase the bearing capacity of hub.
36T ADVANTAGE
1.Equiped with the powerful and efficient engine Weichai or DF cummins engine,makes the forklift high handing performance.Optional original Cummins or Volvo engine suitable for the Europe 3 emission standard.
2.The standard LED lamps and warning lights make it safety,more energy efficient and create better working condition.
3.Noise-isolation and vibration absorber ,Luxury cab with the air-conditioner,back-view camera ensure easy operation and more comfortable
How to choose a 36 Ton Forklift?
Load Capacity:
1) the higher you are lifting a load the lower the capacity will become.
2) if you add an attachment this will also effect the unit's capacity.
3) Non-standard over sized goods will cause load centre move forward to effect capacity.
Lift Height & Collapsed Height:
besides how high you want to lift up your material, you also need to pay attention to forklift collapsed height for reasons: low doors you need to passby, concerning in the building you are working, concerning in the trucks you are loading/unloading.
Environment:
1) depending on enviroment in door or outdoor: diesel, gas/LPG or battery forklift
2) ground in good condition or with stones or scraps everywhere: what types of tire is proper, air tires, solid tires or no-marking tires?
3) special environment: cold storage etc
Application:
wheather or not an attachment needs for working.
Others:
Do I need to stack goods in narrow warehouse? right-angle stack aisle width
Do I need a pressure regulator valve when forklift reserved with 3rd or 4th valve for attachments?
Parameter of 36 Ton Forklift
Item | Item details | Unit | |
HNF-360 | |||
Features | Rated Load | Q（t） | 36 |
Load center | c（mm） | 1250 | |
Wheelbase | y（mm） | 4800 | |
Weight | Weight | kg | 44000 |
Chassis | Tyre Specs.:Front | 16.00-25-32PR | |
Tyre Specs.:Rear | 16.00-25-32PR | ||
Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
Wheel tread:Front | b10（mm） | 2400 | |
Wheel tread:Rear | b11（mm） | 2450 | |
Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
Mast height(fork lowering) | h1（mm） | 4010 | |
Mast lifting height | h3（mm） | 3500 | |
Max.lifting height | h4（mm） | 5760 | |
Height to head guard(height to cab) | h6（mm） | 3860 | |
Overall height(with forks) | l1（mm） | 9700 | |
Fork front vertical surface to the rear end of the vehicle | l2（mm） | 7150 | |
Overall width | b1/b2（mm） | 3320 | |
Fork dimension | s/e（mm） | 2440X340X125 | |
Fork carriage width | b3（mm） | 3000 | |
Mast min ground clearance(with load) | m1（mm） | 400 | |
Wheelbase center min ground clearance(with load) | m2（mm） | 460 | |
Min.Turning radius | Wa（mm） | 7260 | |
Travel speed(with load/without load) | km/h | 25/28 | |
Performance | Max.lifting speed(with load/without load) | mm/s | 260/280 |
Max.Lowering speed(with load/without load) | mm/s | 250/180 | |
Traction | N | 22000 | |
Gradeablity(with load/without load) | ％ | 20/20 | |
Driving brake | Hydraulic clamp disc | ||
Engine brand/model | Optional one | Weichai engine | |
Engine | WO10G240E341 | ||
Optional two | Dongfeng Cummins | ||
QSC8.3-C260 | |||
Cylinder No. | 6 | ||
Others | Transmission gears(Front/rear) | 2\1 | |
Attachments working pressure | bar | 180 | |
Attachments using oil amount | l/min | 80 |
