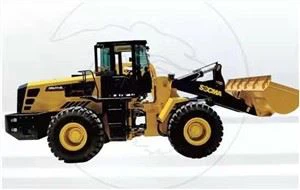

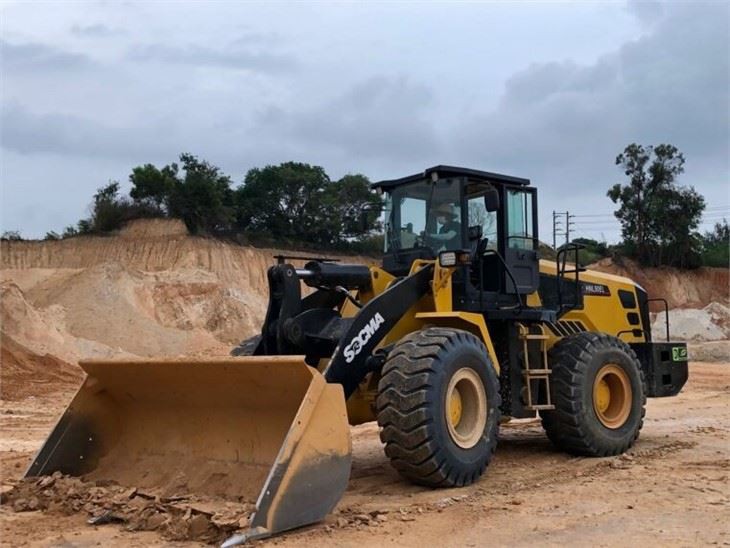

5 Ton Pure Electric Wheel Electric Loader Lithium Battery
5 Ton Pure Electric Wheel Electric Loader Lithium Battery
5 Ton Pure Electric Wheel Electric Loader Lithium Battery
5 Ton Pure Electric Wheel Electric Loader Lithium Battery
5 Ton Pure Electric Wheel Electric Loader Lithium Battery
5 Ton Pure Electric Wheel Electric Loader Lithium Battery
5 Ton Pure Electric Wheel Electric Loader Lithium Battery
5 Ton Pure Electric Wheel Electric Loader Lithium Battery
5 Ton Pure Electric Wheel Electric Loader Lithium Battery
Max. Tractive Force 155±3 KN
Breakout Force ≥170KN
Overall Dimensions (L*W*H) 8015×3000×3380
Battery Type Lithium Iron Phosphate.
Charging Time Fast Charging: 2.0-2.5H/Slow Charging: 8-10H(Based on charger)
Transmission Type Electronic Hydraulic Transmission
1. Independently developed special load positive flow control system with variable speed, Global power matching, on-demand oil supply, reducing throttling and overflow loss.
2. Multi-motor coordinated control, reasonable matching of motor load, optimized energy management, efficient operation; time-sharing, automatic idle stop, reducing energy consumption of the motor and pump at idle.
3. 618V high voltage solution, reducing electric current; high efficiency permanent magnet synchronous motor, intelligent door drives variable speed control, low heat generation, 20% energy saved than asynchronous motor.
4. All kinds of negative load are regenerated for power generation, and the energy utilization rate of the whole machine is improved based on the energy recovery of power lithium battery;
5. Renewable power generation for various negative loads, energy recover based on power lithium batteries, improving energy efficiency of the whole machine.
6. Independent research and development of manual/automatic shift control strategy provides smooth driving, smooth shifting and strong power.
Performance | Parameter | |||
Basic Technical Parameter | Bucket Capacity Range (m³) | 2.7-4.0 | ||
Rated Load (kg) | 5000 | |||
Operating Weight (kg) | ≈17000 | |||
Max. Tractive Force (KN) | 155±3 | |||
Breakout Force (KN) | ≥170 | |||
Overall Dimensions (L*W*H) | 8015×3000×3380 | |||
Dumping Height (mm) | 3062/3458/3600 | |||
Wheelbase (mm) | 3230 | |||
Wheel Tread (mm) | 2240 | |||
Max. Turning Angle (°） | 35 | |||
Max. Gradeability (°） | 28 | |||
Travel Speed (Km/h) | Low Speed Model | High Speed Model | ||
Forward I (Km/h) | 7 | 28 | ||
Forward II (Km/h) | 14 | 36 | ||
Backward (Km/h) | 7 | 28 | ||
Battery Power System | Battery Type | Lithium Iron Phosphate | ||
Ambient Temperature (℃） | -35~60 | |||
Themal Management Mode | Heating film heating, water cooling | |||
Rated Energy Capacity (kWh) | 141/282 | |||
Rated Capacity (Ah) | 282/456 | |||
Charging Time | Fast Charging: 2.0-2.5H/Slow Charging: 8-10H(Based on charger) | |||
Charging Method | Single gun independent charging/Dual guns charging together | |||
Service Voltage Range (V) | 480-700 | |||
Service Life (25℃, 100%SOC ) | 4000 Cycles, Capacity fade ＜30% | |||
Drive System | Travel Motor: | |||
Motor Type | Permanaent Magnet Synchronization | |||
Rated Power (kW) | 120 | |||
Rated Voltage (V) | 540V | |||
Transmission Type | Electronic Hydraulic Transmission | |||
Transmission Gear | 2 Forward 1 Reverse | |||
Main Drive | Spiral bevel gear one stage reduction | |||
Hub Reductor Type | Spur gear planet drive | |||
Tire | 23.5-25-16 PR | |||
Braking System | Hydraulic Cliper Disc Brake | Hydraulic caliper disc brake | ||
Flexible Shaft Control Drum Brake | Flexible shaft control drum brake | |||
Steering Hydraulic System | Type | Full hydraulic on-load | ||
Output Volume (Steering Pump) | 80ml/r | |||
Service Pressure (Mpa) | 15 | |||
Steering Angle | ±35 | |||
Service Hydraulic System | Hydraulic Pump Motor: | |||
Pemanent magnet Synchronization | Permanent magnet Synchronization | |||
Rated power | 90 | |||
Rated voltage | 540V | |||
Output Volume (Variable Piston Pump+Internal gear pump) | 100+80ml/r | |||
System working pressure | 18 | |||
Total Cycle Time | Lift(load) | Dump | Lowing (unload) | Total |
6.0s | 1.2s | 3.8s | 11s | |
Electric System | Battery Voltage (24V) | 24 | ||
Battery Capacity (Ah) | 60 | |||
Lighting Voltage (V) | 24 | |||
Oil Capacity | Hydraulic Oil (L) | 270 | ||
Transmission Oil (L) | 49 | |||
Drive/Steering Oil (L) | 28/28 | |||
