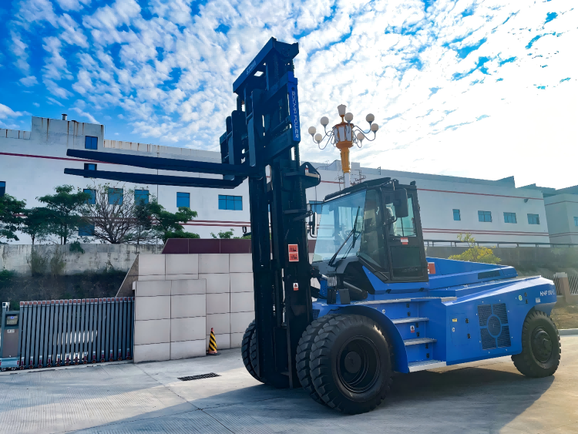

SOCMA 16t Electric Forklift HNF160-EL
2.Kessler drive axle & Danfoss hydraulic system
3.210kWh Lithium battery, 7-9h operation
4.ROPS/FOPS cab with climate control
5.Energy recovery & PMSM motor
1. SOCMA 16t Electric Forklift Introduction
The 16-ton electric forklift is a heavy-duty handling solution for ports, steel mills, and other demanding environments. Powered by lithium-ion batteries, it offers zero emissions and low noise. With a high-performance motor and reinforced mast, it ensures stable operation for loads up to 16 tons, combining eco-friendliness with power.
2. SOCMA 16t Electric Forklift Specification
| Item | Unit |
HNF160-EL |
|
|
Features |
Rated Load |
Q (t) |
16 |
|
Load center |
c (mm) | 1200 | |
|
Wheelbase |
y (mm) | 3800 | |
| Weight | Weight | kg | 27000 |
| Chassis |
Tyre Specs.:Front |
12.00-24-18PR |
|
|
Tyre Specs.:Rear |
12.00-20-18PR |
||
|
Tyres Qty, front/rear (X-drive wheels) |
4\2 |
||
|
Wheel tread:Front |
b10 (mm) |
1940 |
|
|
Wheel tread:Rear |
b11 (mm) |
2330 |
|
| Dimension |
Mast/Carriage tilt angle (front/rear) |
Degree (°) |
6\12 |
|
Mast height (fork lowering) |
h1 (mm) |
3625 |
|
|
Mast lifting height |
h3 (mm) |
3500 |
|
|
Max.lifting height |
h4 (mm) |
5375 |
|
|
Height to head guard (height to cab) |
h6 (mm) |
3365 |
|
|
Overall height (with forks) |
l1 (mm) |
7640 |
|
|
Fork front vertical surface to the rear end of the vehicle |
l2 (mm) |
5840 |
|
|
Overall width |
b1/b2 (mm) |
2750 |
|
|
Fork dimension |
s/e (mm) |
2440X220X110 |
|
|
Fork carriage width |
b3 (mm) |
2750 |
|
|
Mast min ground clearance(with load) |
m1 (mm) |
265 |
|
|
Wheelbase center min ground clearance (with load) |
m2 (mm) |
325 |
|
|
Min.Turning radius |
Wa (mm) |
6500 |
|
|
Travel speed (with load/without load) |
km/h |
20/24 |
|
| Performance |
Max.Lifting speed (with load/without load) |
mm/s |
250/260 |
|
Max.Lowering speed(with load/without load) |
mm/s |
340/320 |
|
|
Traction |
kN |
70 |
|
|
Gradeablity (with load/without load) |
% |
15/20 |
|
|
Driving brake |
Wet disc |
||
| Others |
Transmission gears (front/rear) |
2\1 |
|
|
Battery Capacity |
Ah |
346 |
|
|
Battety Rated Voltage |
V |
608.6 |
|
|
Battery power |
kWh |
210 |
|
|
Drive motor rated power |
kW |
120 |
|
|
Rated power of hydraulic motor |
kW |
80 |
|
3. Other information
Delivery time: 90 days after receipt of deposit
The quality warranty as follows:
1. Battery warranty: 5 years or 2800 times of charges and discharges (battery attenuation is no more than 30%).
2. Motor and Electric Control warranty: 3 years.
3. Hydraulic and Mechanical Transmission warranty: 2 years or 2000 hours. During the warranty period, if the vehicle has a non-human fault. After seller confirm and approve, it is the seller's responsibility to provide the necessary accessories and technical support.
