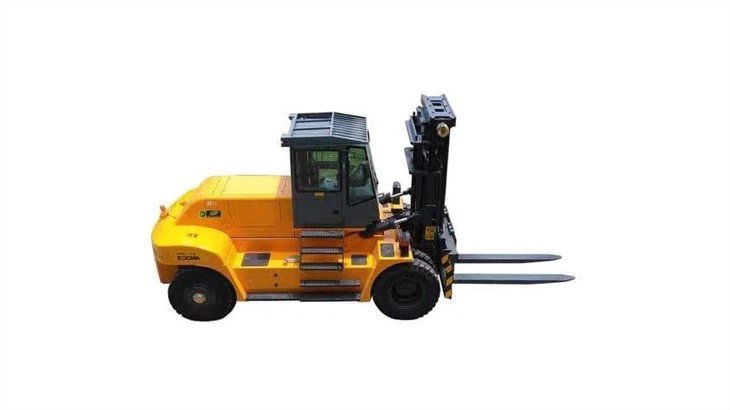

Timber Electric Forklift Truck 16 Ton
16 ton electric forklift trucks HNF120-EL
16 ton electric forklift trucks,heavy duty type,lithium battery,model:HNF160-EL
SOCMA New Energy Construction Machinery-Advantage by comparison
The advantage of SOCMA 16 ton electric forklift,16 ton electric forklift
16 ton forklift truck with Zero emission, not pollution, low noise
The advantage of SOCMA electric forklift, electric construction machinery by comparison
1. High safety standard for battery, not risk of spontaneous combustion and deflagration
2. Adopt high volume lithium iron phosphate Batteries (LFP), as a solution to avoid the risk of spontaneous combustion and deflagration of three element polymer lithium battery (NCM /NCA), which is used by the passenger car. The safety has been improved essentially.
The battery has high-temperature resistance. Even the most refulgent environment does not have any effect to performance and safety.
The battery group and BMS (Battery Management System) is supplied by the domestic leading brand CATL, which guarantee that every group of battery has stable high quality. The battery group is equipped with overcharge protection（OVP）, over discharge protection（UVP）, Over Temperature Protection（OTP）, Over current protection（OCP）.
The power will be cutter off immediately if there is an accident.
The lifespan of the battery is more than 8-years
lithium iron phosphate battery recycle lifespan is more than 4000 times, which is 2.5 times of same level of three lithium battery life and 10 times of lead acid battery.
The volume of lithium iron phosphate battery decreasing during the lifespan will not have the effect of endurance shrinking dramatically like three element lithium battery
Optimizing energy management, excellent energy utilization efficiency and endurance, together with high-volume lithium iron phosphate battery, which guarantee the 6 to 8 working hours after full-charging.
II. Technical Parameter of 16 ton electric forklifts
Item | Unit | HNF160-EL | |
Features | Rated Load | Q(t) | 16 |
Load Center | c(mm) | 1200 | |
Wheel base | y(mm) | 3800 | |
Weight | Operation weight | kg | 25000 |
Tire size | 12.00-24-18PR | ||
Wheel Qty. (Front/Rear) | 4\2 | ||
Wheel track (Front) | b10(mm) | 2060 | |
Wheel track (Rear) | b11(mm) | 2330 | |
Dimension | Mast/Carriage tilt angle(front/rear) | Degree(°） | 6\12 |
Mast height (Fork lowering) | h1(mm) | 3625 | |
Mast Lifting height | h3(mm) | 3500 | |
Max. working lifting height | h4(mm) | 5375 | |
Height to head guard (height to cab) | h6(mm) | 3365 | |
Overall length (with forks) | l1(mm) | 7640 | |
Overall width | b1/b2(mm) | 2750 | |
Fork dimension | s/e(mm) | 2440*320*110 | |
Min. turning radius | Wa (mm) | 5800 | |
Travel speed (with load/without load) | km/h | 26/30 | |
Max. lifting speed (with load/without load) | mm/s | 25/260 | |
Max. lowering speed (with load/without load) | mm/s | 430/330 | |
Performance | Traction | kN | 150 |
Gradeability | % | 20/21 | |
Driving brake | hydraulic clamp disc | ||
Battery | Power Consumption Rate | kwh | 20 |
Power Reserves | kwh | 282 | |
Rated Voltage | 600 | ||
Working Hour | 8~10 | ||
Power of travel Motor | kW | 80 | |
Power of hydraulic pump motor | kW | 50 | |
