SOCMA 16 Ton Crane Forklift HNFC160-1000

1. Dual-Purpose 16 Ton Crane Forklift for Heavy Industrial Lifting and Jib-Boom Precision Work

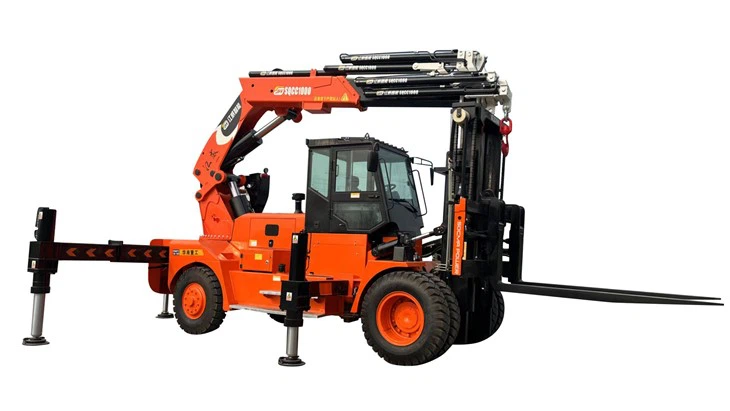

The SOCMA HNFC160-1000 combines the strength of a 16-ton forklift with the reach and precision of a mobile crane, making it a versatile machine for shipyards, infrastructure projects, steel fabrication, and machinery positioning. Engineered to handle extreme weight with high visibility and telescopic outreach, this hybrid forklift crane is ideal for customers who need both robust lifting capacity and flexible, boom-style elevation control in a single solution.



---

2. Powerful Hydraulic Jib Lifting Arm with 17.3m Maximum Height and Multi-Stage Extension Control
This crane forklift features a specialized hydraulic boom with a maximum lifting height of 17,300 mm and a sophisticated jib system capable of accurate articulation. The remote-controlled main and rear outriggers extend up to 6276 mm longitudinally, providing safety and balance during high or offset lifts. Ideal for operations that require height with weight capacity such as electrical maintenance, large mold installations, or mobile generator deployment on site.



---

3. Robust Cummins-Powered Drivetrain and Hydraulic Torque Converter for All-Terrain Stability
Powered by a reliable Yuchai YC6J175-T302 engine delivering 129 kW and 2200 rpm via a torque converter, SOCMA's crane forklift maintains strong working performance under rugged or uneven ground. With a 4×2 drive configuration, 28300 kg vehicle weight, and a turning radius of 7300 mm, it offers the torque, speed, and traction needed for large industrial sites, portside cargo placement, and vertical engineering tasks.



---

4. High-Performance Fork System with 110×220×1800 mm Forks and Wide Lifting Capacity
Beyond its crane capabilities, the HNFC160 functions as a traditional heavy-lift forklift with extended 1800 mm-long forks and 2750 mm carriage width capacity. With a mast lift height of 3500 mm and fork raise height of 5375 mm, it offers extraordinary flexibility for handling steel coils, prefabricated parts, or concrete slabs alongside crane-mode applications-all from the same machine platform.



---

5. Advanced Control System, Safety Features, and Operator Comfort for Precision Handling
Equipped with manual valve-controlled outriggers, clamp disc driving brake, smart load handling speeds (270–300 mm/s), and turn/tilt responsiveness (up to 132° boom turning), this model ensures safe, accurate, and refined load handling. A cold-proof, shock-absorbent operator cabin with onboard control logic and optional remote operation makes it ideal for lifting operations conducted in harsher environments or elevated job sites.
