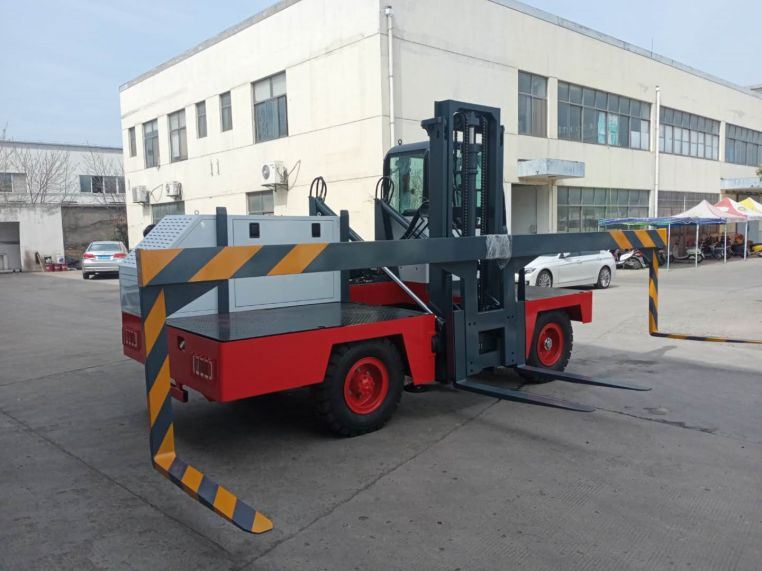

Side Load Forklift Machine Electric Diesel Loader

1

Product model

HNS-60EL

2

Power mode (battery, diesel, gasoline, LPG)

Battery

3

Operator type( seat type, standing type)

Driver/seat

4

Load capacity

kg

6000

5

Load center

mm

600

Weight

6

Operating weight

kg

10900

7

Axle load: no load (front/rear)

kg

8

Axle load: full load (front/rear)

kg

Chassis & Wheels

9

Tire type

Pneumatic

10

Wheels X= Driving wheel (front/rear)

2/2 X

11

Tyres size (front)

3.00-15-18PR

12

Tyres size (rear)

3.00-15-18PR

13

Tread (front)

S

mm

1750

14

Tread (rear)

P

mm

1785

15

Wheelbase

L5

mm

2900

Dimensions

16

Mast lifting height

h3

mm

3600

17

Fork size

L×W×T

L3×W×T

mm

1220×150×60

18

Mast tilt angle

Front/rear

α/β

。

5/5

19

Mast height (fork lowered)

h1

mm

2980

20

Free lifting height

h2

mm

190

21

Overall height fork raised

h4

mm

4740

22

Fork adjusting range (outside forks)

R

mm

1100

23

Overall length

L

mm

4850

24

Width of chassis

B

mm

2100

25

Width of loading

B2

mm

1200

26

Height of head guard

h5

mm

2892

27

Horizontal height of cargo platform

h7

mm

1035

28

Distance from seat surface to roof guard

mm

1030

29

Min. turning radius

Wa

mm

4450

30

Max. inside turning radius

Wb

mm

350

31

Mast min ground clearance

m1

mm

210

32

Chassis min ground clearance

h6

mm

265

33

Front overhang

X

mm

695

34

Rear overhang

L4

mm

1650

Parameter

35

Max. travel speed(with load/without load)

km/h

13/16

36

Max. lifting speed(with load/without load)

mm/s

300/400

37

Max. lowering speed (with load/without load)

mm/s

≥300  ≤600

38

Max. removal velocity (with load/without load)

mm/s

350/370

39

Grade ability (with load)

%

15

Drive line

40

Battery（Voltage/capacity）

Lithium

V/Ah

140.8/210×2

41

Motor power

Operating(traction motor)

Kw

18×2(Wannan)

42

Lifting（oil pump   motor）

Kw

24×2（Wannan）

43

Controller Manufacturer

Brand

CURTIS

44

voltage

V

144

45

Power of charger

kW

36

46

Control mode

Alternating current

Other

52

Hydraulic system working pressure

Mpa

18
