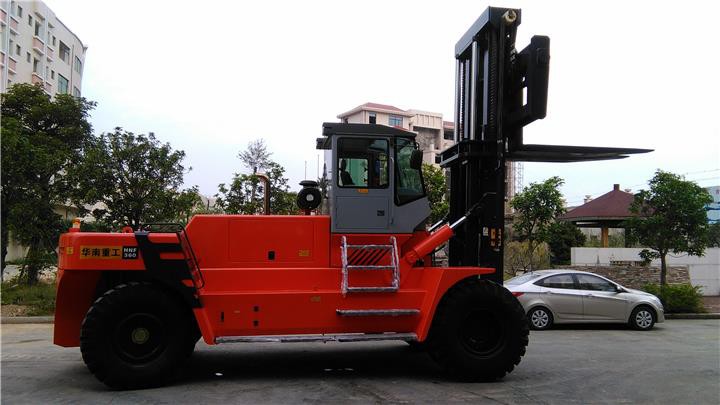

50 Ton Forklift
Load center:1200 mm
Operating weight: 60,000 kgs
Wheel base: 6,000 mm
Automatic Forklift Assembly line in China September 11 , by the Changsha Huaheng Robotics System Co., Ltd. manufacturing the world's first forklift robot welding flexible production line...
HNF-500
Rated load: 50,000 kgs
Load center:1200 mm
Operating weight: 60,000 kgs
Wheel base: 6,000 mm
Automatic Forklift Assembly line in China
September 11 , by the Changsha Huaheng Robotics System Co., Ltd. manufacturing the world's first forklift robot welding flexible production line successfully off the assembly line.
Reporters into the company to see the assembly workshop, located in the front right of the robot handle the workpiece will be placed on the robot positioner, located in the front left of the welding robot in accordance with the procedures have been set for automatic welding, finished , The robot immediately passed the workpiece to the next process, while at the same time, the robot grabbed the workpiece again. So that 24 hours a day without interruption, a production line operation only two employees, completely replace the manual welding. In addition, the welding robot can accurately identify the various types of workpieces, and send it to the most accurate location for welding.
According to the company 50 Ton Forklift welding robot production line project leader Zheng Junwei introduction, the production line planning single class production capacity of 5,000 units / year, the use of welding robot 7 sets, two sets of robots, the other with only 20 workers, and not on the production line before the artificial Welding requires a welding technician 65, a significant reduction in the cost.
"The company has always attached importance to research and development, especially in Hunan Liuyang manufacturing industry base after the rapid development." Changsha Huaheng Robotics System Co., Ltd. Chairman Yan Xiaojun said that due to the shortage of senior welders, coupled with high labor costs and difficult recruitment and other reasons, Many machinery manufacturing enterprises have begun to use robot intelligent automated flexible manufacturing instead of artificial. It is reported that, in addition to welding, the current welding robot has also been applied to the assembly, handling, coating and other fields.
Parameter of 50 Ton Forklift
Item | Item details | Unit | |
HNF-500 | |||
Features | Rated Load | Q(t) | 50 |
Load center | c(mm) | 1200 | |
Wheelbase | y(mm) | 6000 | |
Weight | Weight | kg | 60000 |
Chassis | Tyre Specs.:Front | 18.00-25-40PR | |
Tyre Specs.:Rear | 18.00-25-40PR | ||
Tyres Qty,front/rear (X-drive wheels) | 4\2 | ||
Wheel tread:Front | b10(mm) | 3030 | |
Wheel tread:Rear | b11(mm) | 2786 | |
Dimension | Mast/carriage tilt angle(front/rear) | Degree(°) | 5\10 |
Mast height(fork lowering) | h1(mm) | 5050 | |
Mast lifting height | h3(mm) | 4000 | |
Max.lifting height | h4(mm) | 6975 | |
Height to head guard(height to cab) | h6(mm) | 3900 | |
Overall height(with forks) | l1(mm) | 11000 | |
Fork front vertical surface to the rear end of the vehicle | l2(mm) | 8600 | |
Overall width | b1/b2(mm) | 4160 | |
Fork dimension | s/e(mm) | 2400X300X150 | |
Fork carriage width | b3(mm) | 3400 | |
Mast min ground clearance (with load) | m1(mm) | 300 | |
Wheelbase center min ground clearance(with load) | m2(mm) | 460 | |
Min.Turning radius | Wa(mm) | 8500 | |
Travel speed(with load/without load) | km/h | 22/24 | |
Performance | Max.lifting speed (with load/without load) | mm/s | 150/200 |
Max.Lowering speed (with load/without load) | mm/s | 300 | |
Traction | N | 250000 | |
Gradeablity (with load/without load) | ％ | 25 | |
Driving brake | Oil-cooled multiple wet disc | ||
Engine brand/model | Optional one | Weichai engine | |
Engine | WP12G340(250kWIII) | ||
Optional two | Xi'an Cummins | ||
QSM11 250kW | |||
Cylinder No. | 6 | ||
Others | Transmission gears(Front/rear) | Torque convertor |
