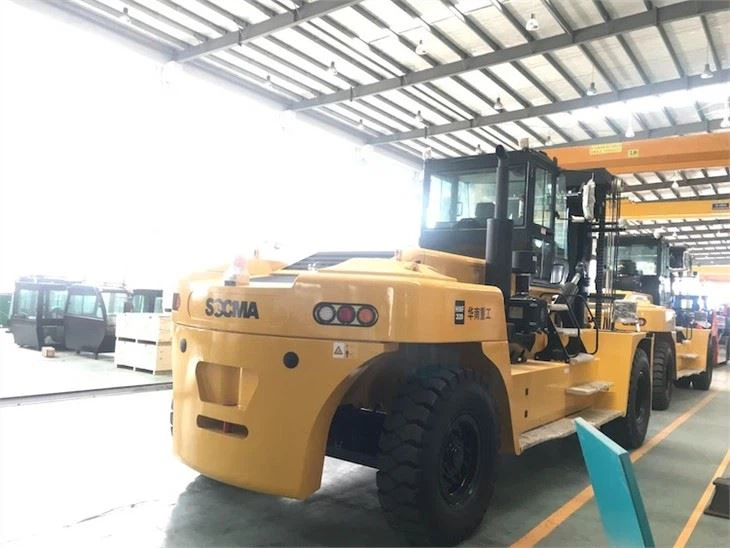

32 Ton Heavy Forklift Truck Engine Diesel
32 Ton Heavy Forklift Truck Engine Diesel
32 Ton Heavy Forklift Truck Engine Diesel
32 Ton Heavy Forklift Truck Engine Diesel
32 Ton Heavy Forklift Truck Engine Diesel
32 Ton Heavy Forklift Truck Engine Diesel
32 Ton Heavy Forklift Truck Engine Diesel
32 Ton Heavy Forklift Truck Engine Diesel
32 Ton Heavy Forklift Truck Engine Diesel
Engine: Famous Brand in China ,low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection.
Steering system: Equipped transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.
PIC:John Chen WA:+86 18106938692, Email: John@socmachinery.com
| Technical Parameter | |||
| Item | HNF-320 | ||
| Features | Rated Load | Q（t） | 32 |
| Load center | c（mm） | 1250 | |
| Wheelbase | y（mm） | 4800 | |
| Weight | Weight | kg | 43000 |
| Chassis | Tyre Specs.:Front | 16.00-25-32PR | |
| Tyre Specs.:Rear | 16.00-25-32PR | ||
| Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
| Wheel tread:Front | b10（mm） | 2400 | |
| Wheel tread:Rear | b11（mm） | 2450 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
| Mast height(fork lowering) | h1（mm） | 4010 | |
| Mast lifting height | h3（mm） | 3500 | |
| Max.lifting height | h4（mm） | 5760 | |
| Height to head guard(height to cab) | h6（mm） | 3860 | |
| Overall Length(with forks) | l1（mm） | 9700 | |
| Fork front vertical surface to the rear end of the vehicle | l2（mm） | 7150 | |
| Overall width | b1/b2（mm） | 3320 | |
| Fork Dimension | s/e（mm） | 2440X340X125 | |
| Fork carriage width | b3（mm） | 3100 | |
| Mast min ground clearance(with load) | m1（mm） | 400 | |
| Wheelbase center min ground clearance(with load) | m2（mm） | 460 | |
| Min.Turning radius | Wa（mm） | 7260 | |
| Travel speed(with load/without load) | km/h | 25/28 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 260/280 |
| Max.Lowering speed(with load/without load) | mm/s | 250/180 | |
| Traction | kN | 220 | |
| Grade ablity(with load/without load) | ％ | 20/20 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine | Engine brand/model | Optional one | Weichai engine |
| WO10G240E341 9.726L 178KW 2200rpm | |||
| Optional two | Dongfeng Cummins | ||
| QSC8.3-C260 8.3L 194KW 2200rpm | |||
| Cylinder No. | 6 | ||
| Others | Transmission gears(Front/rear) | 2\1 | |
| Attachments working pressure | Mpa | 18 | |
| Attachments using oil amount | l/min | 80 | |
Related Photos:
Socma Forklift Related Information:
Choosing an industrial battery can be complicated-there are so many choices, it is difficult to decide which factors are the most important-capacity, chemical composition, charging speed, cycle life, brand, price, etc.
The requirements of your material handling operations are critical to choosing the correct forklift battery.
01.
Start with your forklift and forklift brand and model specifications
Your choice of equipment power source is mainly determined by the technical specifications of the forklift. As users of Category 4 and Category 5 sitting forklifts powered by diesel or propane continue to switch to Category 1 electric forklifts, more than half of today's forklifts are powered by batteries. Durable, high-capacity lithium-ion (Li-ion) batteries are already available for the most demanding applications, handling heavy and bulky loads.
The following are the main specifications you need to pay attention to:
Battery voltage (V) and capacity (Ah) have several standard voltage options (12V, 24V, 36V, 48V, 72V, 80V) and different capacity options (from 100Ah to 1000Ah and higher) available for various lift truck models .
For example, a 24V 210Ah battery is usually used in a 4000-pound pallet elevator, while an 80V 1050Ah is suitable for a balanced sit-on forklift to handle loads of up to 20K pounds.
Battery box size
The size of the forklift battery box is often unique, so finding a perfect and precise fit is crucial. It is also important to consider the type of cable connector and its location on the battery and truck. Some OEM battery manufacturers have two battery cases of different sizes.
Battery weight and counterweight
Different forklift models have different recommended battery weight requirements, which you should consider when choosing. Additional counterweights are added to batteries intended for heavy-duty applications.
Comparison of lithium batteries and lead-acid forklift batteries in different types of electric forklifts (Class I, II and III)
Lithium batteries are most suitable for class I, II and III forklifts and other non-road electric vehicles, such as sweepers and scrubbers, tugboats, etc. what is the reason? Lithium batteries have three times the life span of lead-acid batteries, excellent safety, minimal maintenance, stable operation at low or high temperatures, and high energy capacity in kilowatt hours.
Lithium iron phosphate (LFP) and lithium nickel cobalt aluminate (LiNiCoAlO2 or NCA and NMC), these batteries are used in electric forklifts.
These types of lithium batteries are more commonly used in passenger electric vehicles (EV) and electronic products due to their lower overall weight and higher energy density per kilogram. Until recently, lead-acid batteries have been widely used in all types of electric forklifts. TPPL is a newer version of this type of battery. It has higher efficiency and higher charging speed, but only compared with traditional submerged lead-acid technology or sealed lead-acid batteries, such as absorption glass mat (AGM).
In most cases, lithium-ion batteries are a more economical and effective choice than any lead-acid batteries (including AGM or TPPL batteries) in industrial applications.
Forklift-battery communication
Forklift's controller area network (CAN bus) allows microcontrollers and devices to communicate with each other without a host. Not all battery brands can be fully integrated with all forklift models through the CAN bus. Then you can choose to use an external battery discharge indicator (BDI), which provides the operator with visual and audible signals of battery charging status and work preparation.
