Heavy Duty Forklift 25T In Logistic Port
SOCMA HNF-250
Capacity:25t
Load center:1250mm
Lifting height:3.5 meters
Send Inquiry
Product Introduction
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of heavy duty forklift 25t in logistic port in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.

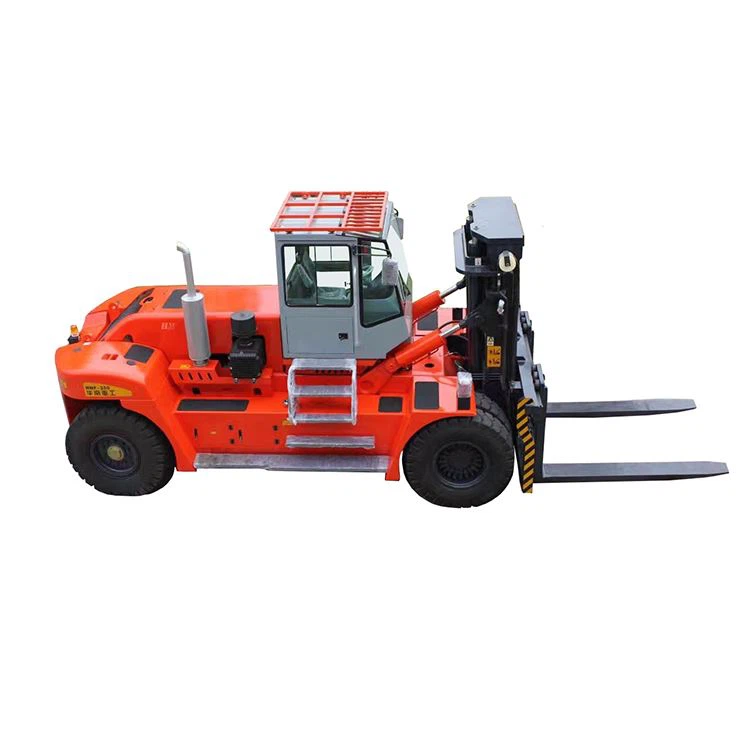

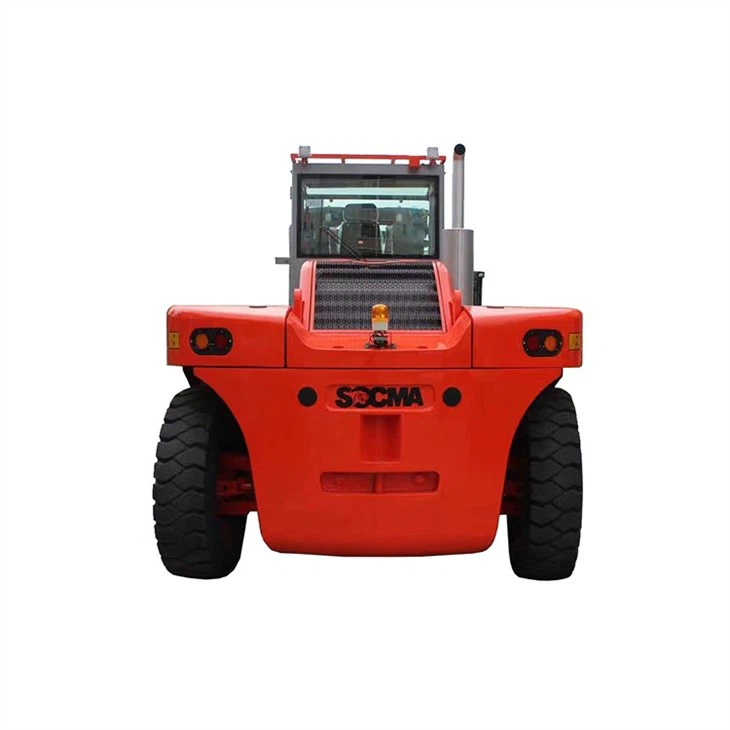

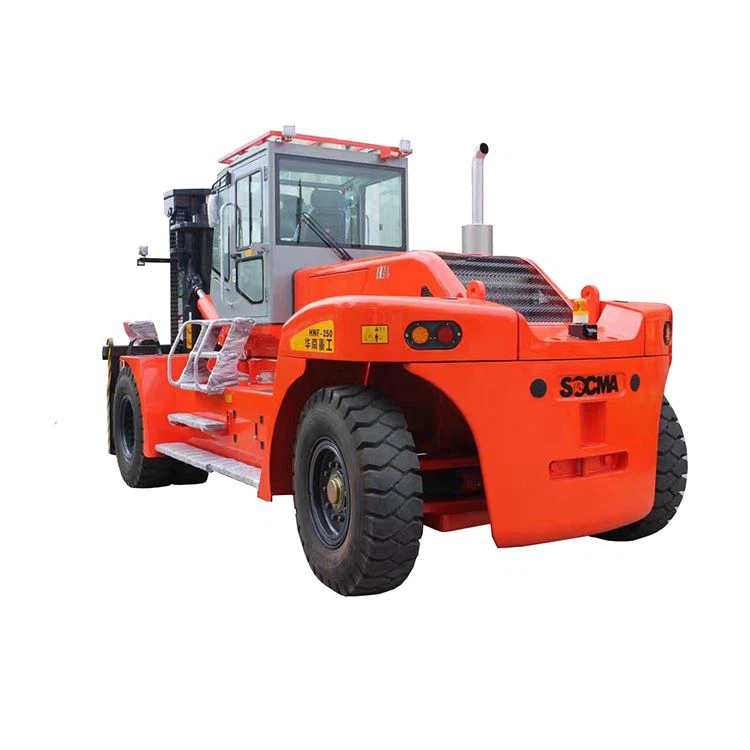

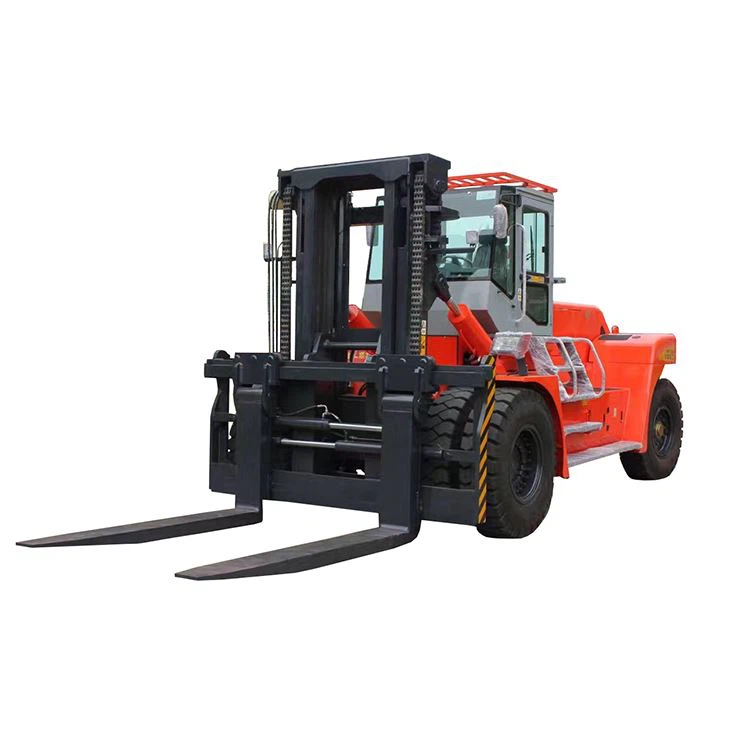

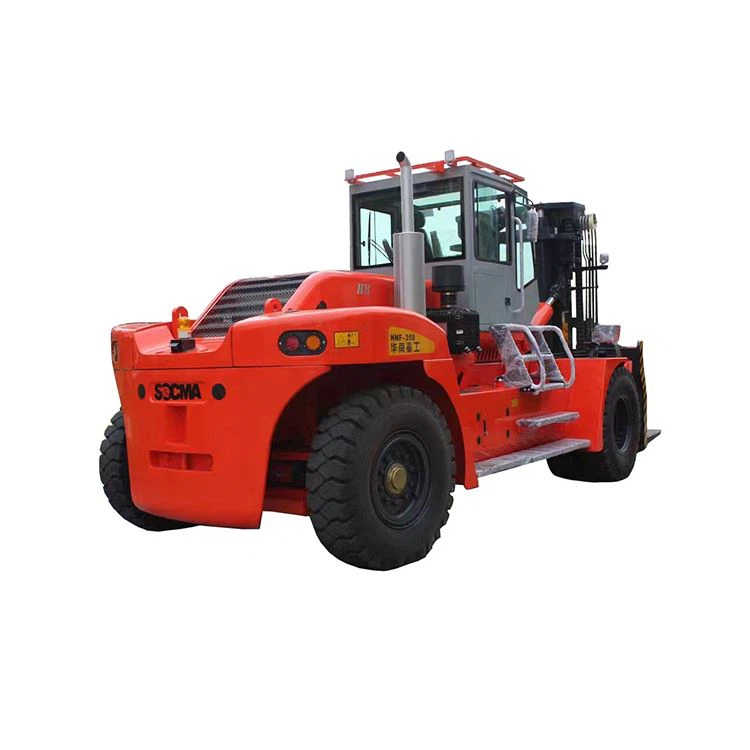

Heavy Duty Forklift 25T In Logistic Port
| 参数表 Technical Parameter | |||
| 项目Item | 单位 | 项目内容 | HNF-250 |
| 特性 Features | Q（t） | 起重量/载荷 Rated Load | 25 |
| c（mm） | 载荷中心距 Load center | 1250 | |
| y（mm） | 轴距 Wheelbase | 4400 | |
| 重量Weight | kg | 自重 Weight | 35000 |
| 车轮底盘Chassis | 轮胎规格：前 Tyre Specs.:Front | 14.00-24-28PR | |
| 轮胎规格：后 Tyre Specs.:Rear | 14.00-24-28PR | ||
| 车轮，数量前/后（X-驱动轮） Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
| b10（mm） | 轮距：前 Wheel tread:Front | 2200 | |
| b11（mm） | 轮距：后 Wheel tread:Rear | 2390 | |
| 基本尺寸Dimension | Degree（°） | 门架/货叉架前/后倾角 Mast/carriage tilt angle(front/rear) | 6\12 |
| h1（mm） | 门架回缩时高度 Mast height(fork lowering) | 3860 | |
| h3（mm） | 标准起升高度 Mast lifting height | 3500 | |
| 门架自由提升高度 | |||
| h4（mm） | 作业时最大高度 Max.lifting height | 5610 | |
| h6（mm） | 护顶架高度（驾驶室高度） Height to head guard(height to cab) | 3510 | |
| l1（mm） | 总长（含货叉长度） Overall height(with forks) | 9190 | |
| l2（mm） | 货叉垂直前表面至车辆后端距离 Fork front vertical surface to the rear end of the vehicle | 6745 | |
| b1/b2（mm） | 总宽 Overall width | 3050 | |
| s/e（mm） | 货叉尺寸 Fork dimension | 2440X300X110 | |
| b3（mm） | 货叉架宽度 Fork carriage width | 3050 | |
| m1（mm） | 门架下最小离地间隙 满载 Mast min ground clearance(with load) | 300 | |
| m2（mm） | 轴距中心最小离地间隙 满载 Wheelbase center min ground clearance(with load) | 420 | |
| Wa（mm） | 最小转弯半径 Min.Turning radius | 6700 | |
| km/h | 运行速度（满载/无载） Travel speed(with load/without load) | 25/29 | |
| 功能参数Performance | mm/s | 最大起升速度（满载/无载） Max.lifting speed(with load/without load) | 260/270 |
| mm/s | 最大下降速度（满载/无载） Max.Lowering speed(with load/without load) | 315/260 | |
| kN | 牵引力 Traction | 170 | |
| ％ | 爬坡度（满载/无载） Gradeablity(with load/without load) | 20/21 | |
| 行车制动 Driving brake | 液压钳盘式 Hydraulic clamp disc | ||
| 内燃机 Engine | 可选 一 Optional one | 内燃机生产厂家/型号 Engine brand/model | 潍柴 Weichai engine |
| WP10G220E343 9.726L 162KW 2000rpm | |||
| 可选 二 Optional two | 东康 Dongfeng Cummins | ||
| QSC8.3-C240 8.3L 179KW 2200rpm | |||
| 气缸数目 Cylinder No. | 6 | ||
| 其他 Others | 变速箱档位数（前/后） Transmission gears(Front/rear) | 2\1 | |
| Mpa | 属具工作压力 Attachments working pressure | 18 | |
| l/min | 属具用的油量 Attachments using oil amount | 80 | |
