Max. lifting height with full extended boom 10300mm

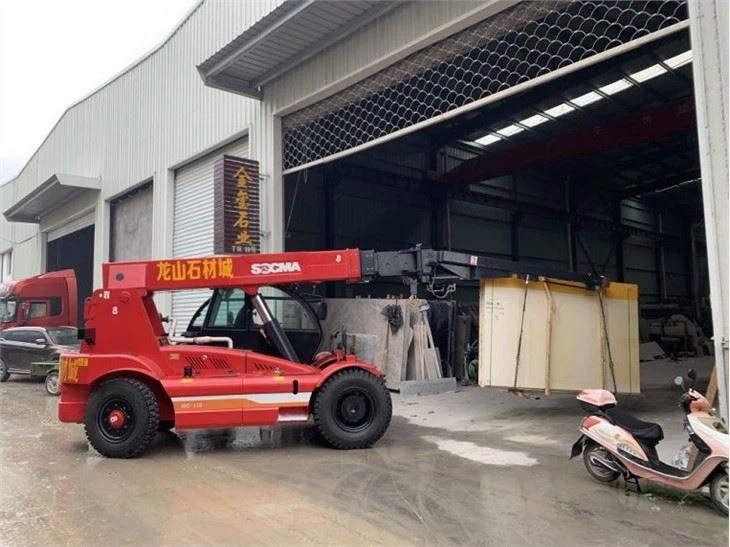

suitable for marble plates and glass plates load and unload from truck
same as JCB StageII Diesel Engine
Stone Telescopic Forklift Telescopic Arm Lifting Truck

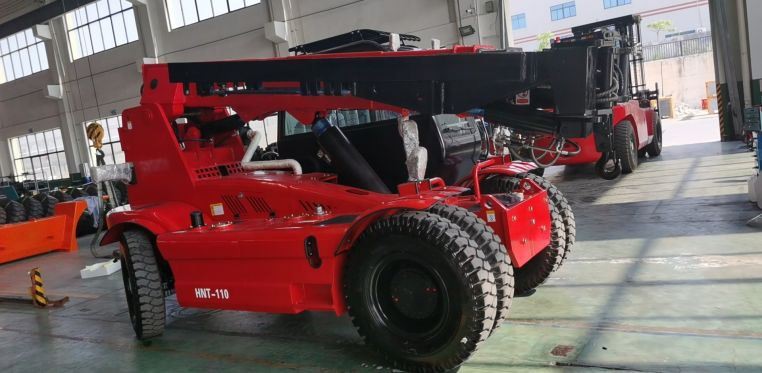

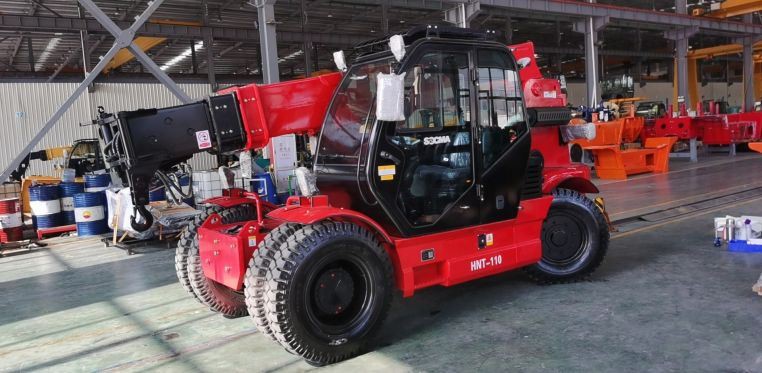

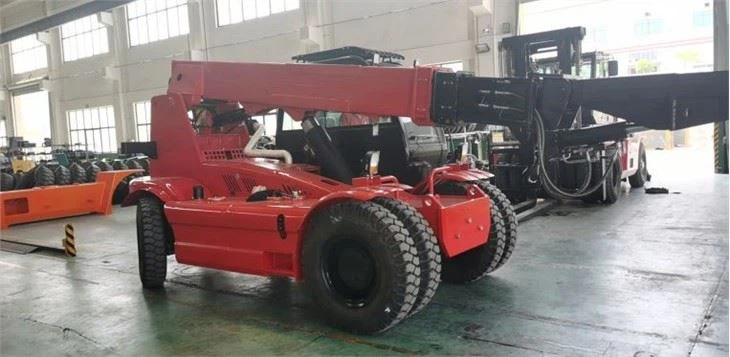

Telescopic forklift truck
Telehandler product features:
The telescopic forklift integrates the technology of forklift and off-road telescopic forklift, which is suitable for stone enterprises, factories and mines, handling goods, short-distance transshipment, port yards, warehouse stations;
The telescopic truck adopts imported Cummins engine and domestic gearbox reasonably matching, which makes full use of engine power, greatly reduces fuel consumption rate, and saves costs for users;
Adopts the four-wheel drive of the front axle, which greatly improves the load capacity of the front axle, overcomes the factor of insufficient load on the front axle of the off-road telescopic boom forklift truck, and has higher safety;
The rear axle of the telehandler is steered by the horizontal oil cylinder, and the steering angle is large, which reduces the small turning radius of the whole machine, and the passing performance of the machine is good. Suitable for working where space is limited. The steering is flexible, which improves the working efficiency of the whole machine;
The frame is made of an integral frame welded together, with high strength and good safety. The installation position of each component is reasonably arranged in the form of a forklift chassis. The spacious tool box is convenient for users to put spreaders, ropes, tools, etc. so that the appearance of the whole vehicle is rationalized. regularization;
The material of the telescopic boom is imported steel, and the structure of the boom is welded in a hexagonal form, which improves the structural strength of the boom; the foldable fork can be used by itself when there is no operation or when the fork is not required to hoist the goods. Folding the fork frame provides a wider field of vision, making the user more flexible and convenient to drive;
The working device control system adopts one-control-two technology (that is, one handle controls two control methods) to reduce the trouble of multiple joysticks, and the operation is more simple and flexible;
The main hydraulic components are imported hydraulic parts, which make the whole telehandler more stable and have better safety performance.
| Item | Unit | Tolerance | HNT4015 | ||
| Basic parameter | Rated load capacity | kg | - | 4000 | |
| Load center | mm | - | 500 | ||
| Rated load @ Max.Horizontal reach | kg | - | 800 | ||
| Max. working height of basic arm | mm | ±1.5% | 6700 | ||
| Max. working height of full reach | mm | ±1.5% | 14400 | ||
| Max. reach | mm | ±1.5% | 9100(without forks) | ||
| Mini. outreach | mm | ±1.5% | 890 | ||
| Ground clearance | mm | ±1.5% | 400 | ||
| Turning radius(outside) | mm | ≤105% | 8500 | ||
| Elevation angle | Boom frame upward angle | ° | ±1.0 | 70 | |
| Boom frame downward angle | ° | ±1.0 | -2 | ||
| Operating weight | kg | ±5% | 15000 | ||
| Dimension | Overall length (without forks) | mm | ±2% | 6420 | |
| Width | mm | ±2% | 2390 | ||
| Height | mm | ±2% | 2500 | ||
| Wheel tread(front/rear) | mm | ±1% | 1870 | ||
| Wheelbase | mm | ±1% | 2800 | ||
| Engine | DF Cummins | - | QSB4.5-C160-30 | ||
| Rated power/rated turning speed | kW/rpm | - | 119/2200 | ||
| Driving system | Max. travelling speed(unloaded) | km/h | ±10% | 25 | |
| Gradeability | % | - | ≥20% | ||
| Tires | Front (2) | - | - | 16/70-24 | |
| Rear (2) | - | - | 9.00-20 | ||
