3T Diesel Forklift With Triplex Free Mast 4.5M Lifting

3T Diesel Forklift With Triplex Free Mast 4.5M Lifting

3t diesel forklift
power shift
lsuzu C240 Engine
4.5m lifting height
1520mm fork length
with overhead guard

Chat Now

    Features for 3t diesel forklift:

    Reliability for the diesel forklift

    ---The most reasonable system matching after repeated verification

    ---Selection of domestic first-line brands or imported brands parts

    ---After 400 hours of continuous enhancement test

    Control performance in this 3t forklift

    ---20 senior forklift drivers were invited to test drive and put forward suggestions for improvement.

    ---Extensive learning of forklift products from Germany and Japan

    Appearace of the machine

    ---Adopt high quality automobile paint and advanced paint treatment equipment to ensure the quality of paint.

    ---Establish detailed process control system to ensure quality


    Transmission in the forklift

    Adopt gradeability improving style transmission, compare with other models:

    ---efficiency 5% improved

    --- climbing torque 8% increased

    ---noise 3~5dB reduced

    ---thermal equilibrium temperature 8~10 ° decreased.


    Hydraulic system for 3t diesel forklift

    Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve operation comfort.


    Radiators

    Maintenance free radiators adopt Germany technology. (Linde water tank).


    Truck body of FD30T

    Fully-enclosed Instrument platform enlarge the working space.

    New suspension adjustable seat makes the long time operating more comfortable.

    New designed overhead guard protective device prevent the sudden accidents.


    Specifications for the 3t diesel forklift:

    ModelUNITFD30T
    SpecificationsPower   Unit
    Diesel
    Operator Type
    Driver/seat
    Transmission Box Type
    Electronic   hydraulic transmisson
    Rated Capacitykg2450
    Load Centermm500
    Max.Lifting Heightmm4500
    Tyre Type
    Pneumatic   Tyre
    Tyre Number (Front/Rear)
    2/2
    Tyre Size (Front/Rear)
    28×9-15-14PR/6.5-10-10PR
    PerformanceLifting   Speed (Loaded/Unloaded)mm/s500/550
    Lowering Speed (Loaded/Unloaded)mm/s480/450
    Travelling Speed (Loaded/Unloaded)km/h19/20
    Max.Gradeability (Loaded)%21
    Max.Drawbar Pull (Loaded)n18
    Mast Tilting Angle (Fwd/Bwd)deg6/6
    Free Lifting Heightmm985
    Turning Radiusmm2400
    DimensionsOverall   length (with fork)mm4230
    Overall Widthmm1240
    Overhead Guard Heightmm2130
    Fork Size (LxWxT)mm1520×125×45
    Mast Height (Fork lowered)mm2230
    Battery (Voltage/Capacity)V/Ah12/60
    Truck Weightkg4442
    Fuel Tank CapacityL70
    EngineBrand
    ISUZU
    Model
    C240
    Rated Powerkw/rpm35.4/2500
    Rated torquen-m/rpm137.7/1800
    Number of cylinder
    4
    Displacement
    2.37

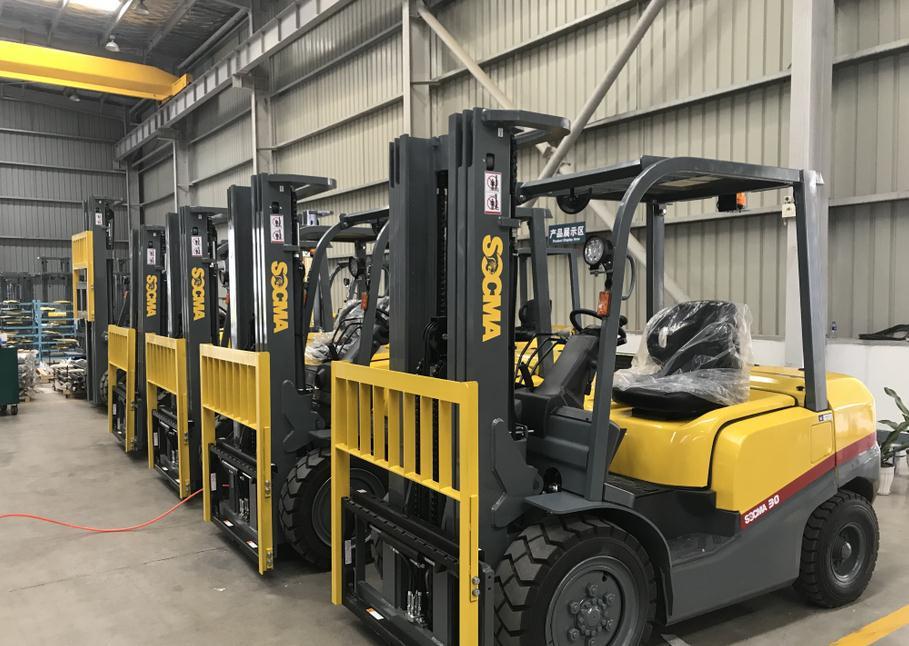

    FD30T FORKLIFT

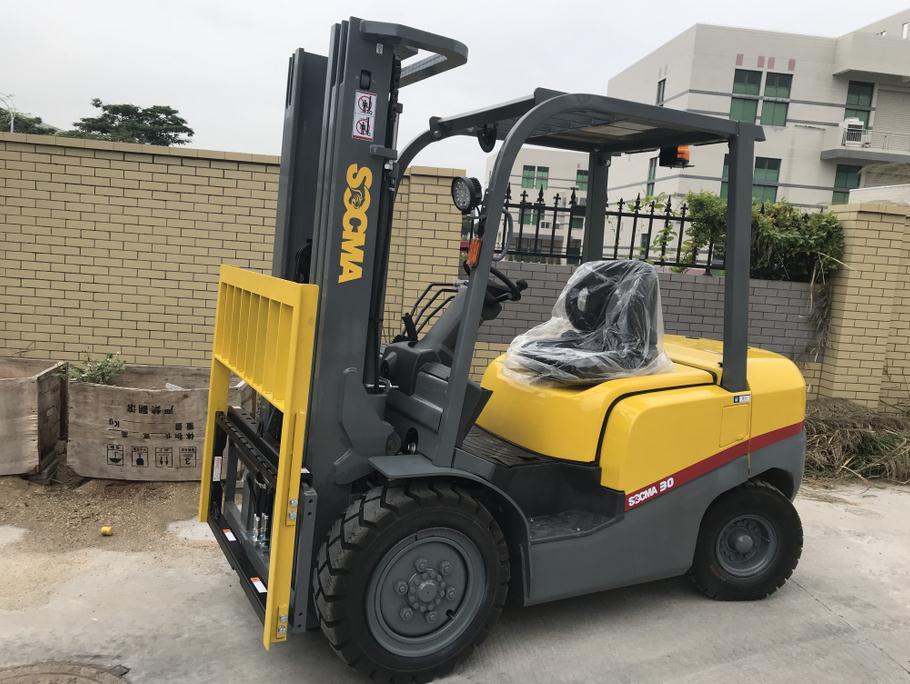

    3t diesel forklift

    FD30T diesel forklift
