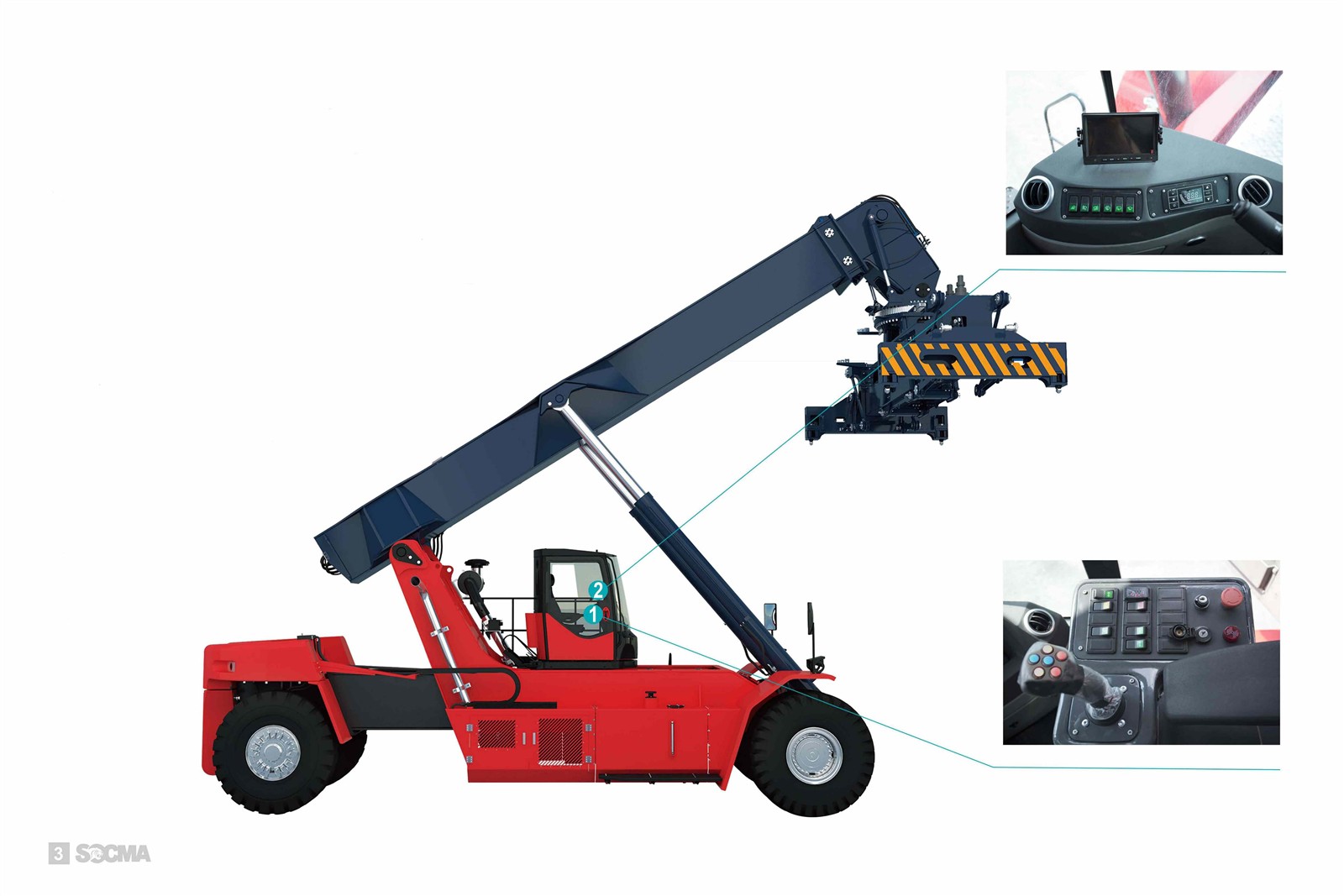

HNRS1009 Truck Container Forklift 45 Ton Reach Stacker For Container Handling

Heavy-Duty Lifting Capacity: The HNRS1009 Reach Stacker boasts a formidable lifting capacity of 45 tons, making it ideal for heavy container operations. It can efficiently handle, transport, and stack large containers, ensuring high throughput in busy cargo handling environments.



Powerful Diesel Engine: Powered by a robust diesel engine, this reach stacker provides high torque and sustained power output necessary for heavy lifting and continuous operation. The diesel engine is chosen for its reliability, long service life, and ease of maintenance, suitable for the rigorous demands of heavy industrial applications.



Advanced Maneuverability: Despite its substantial lifting capabilities, the HNRS1009 is designed for exceptional maneuverability. It features an advanced steering system and precise control mechanisms, allowing for smooth navigation and accurate placement of containers in tight and congested spaces.



Durable Build Quality: Constructed with high-strength steel and designed to withstand harsh working conditions, this reach stacker is built for durability and resistance to wear and tear. Its rugged design ensures it can operate efficiently in diverse weather conditions and challenging environments.

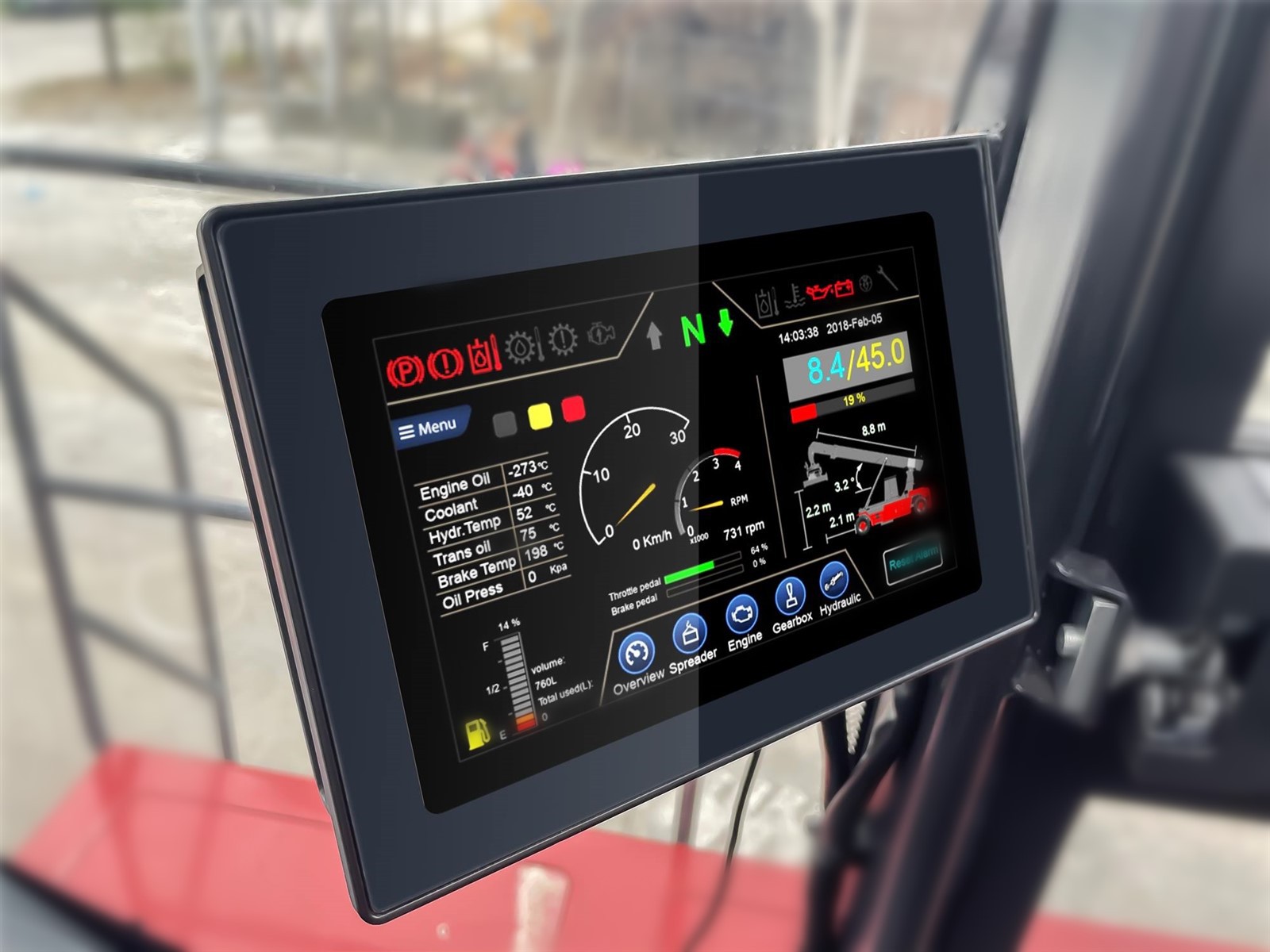

Operator Comfort and Safety Features: The operator's cabin is designed with comfort and safety in mind, providing excellent visibility, ergonomic controls, and a comfortable seating position. Safety features include load stability control, automatic braking systems, and emergency stop functions, all of which contribute to a safe operating environment for the operator and surrounding personnel.



Basic Parameter	HNRS4531	HNRS4545S	HNRS1009
Engine	VOLVO /CUMMINS /SCANIA	VOLVO/CUMMINS	CUMMINS
Transmission	DANA	DANA	DANA
Driver Axle	ATI/KESSLER	ATI/KESSLER	KESSLER
Spreader	SOCMA J450	SOCMA J450	ZDJ100
Spreader Weight	7.8t	7.8t	4T

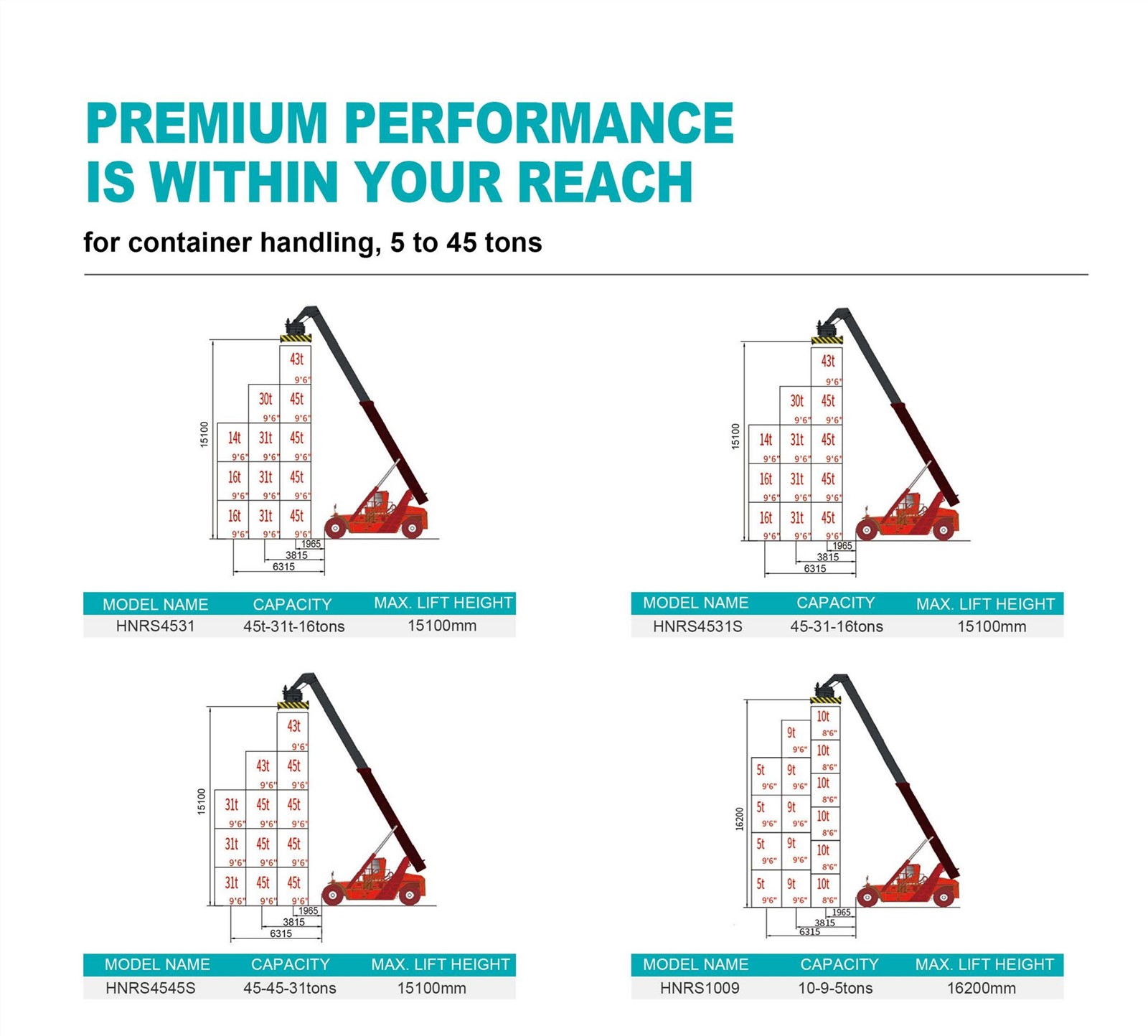

Max Lift Capacity	45t/31t/16t	45t/45t/31t	10T/9T/5T
Max Spreader	15100mm	15100mm	16200mm
Boom Angle	0~60deg	0~56deg	0~65deg
Max Lifting Speed	420/250(mm/s)	400/220(mm/s)	450/400(mm/s)
Drivce Speed	25/21(km/h)	24/20(km/h)	28/25(km/h)
Gradeability	39/32%	33/21%	33/27%
Hydraulic Pressure	262bar	262bar	260bar
Overall Dead Weight	72t	79t	39t
Stscking Lenght	5 (9'6")	5 (9'6")	6 (9'6")
Max.lenght	11300mm	12685mm	11031mm
Wheel Base	6000mm	7250mm~9750mm	5000mm
Max.height	4625mm	4725mm	4041mm
Max.width	6053-12185mm	6053-12185mm	4049mm
Turning Radius Inner	8000mm	9700mm	6753mm
Aisle Width With 20ft	11797mm	13282mm	8072mm
Aisle Width With 40ft	13965mm	14261mm	12684mm
Fuel Consumption	18L~20L/h	19L~21L/h	12L~14L/h
Tire Type	18-25X40P	18-33X40PR	14-24X28PR
