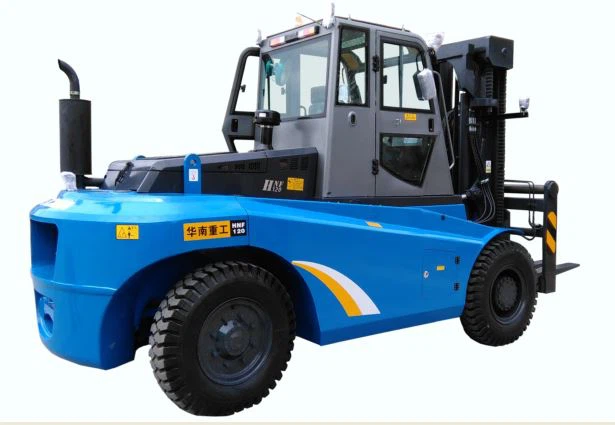

12Ton Diesel Counterbalance Forklift With Cummins Engine
Yuchai YC6J150-T301
South China Gearbox YQXD120
SOCMA drive axle 、long source pump
Haihong hydraulic parts 、stage 3 meters mast frame
South China Gearbox YQXD120
SOCMA drive axle 、long source pump
Haihong hydraulic parts 、stage 3 meters mast frame
Send Inquiry
Product Introduction
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of 12ton diesel counterbalance forklift with cummins engine in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
| Item | Item details | Unit | Design details |
| HNF-120 | |||
| Features | Rated Load | Q(t) | 12 |
| Load center | c(mm) | 600 | |
| Wheelbase | y(mm) | 3000 | |
| Weight | Weight | kg | 18000 |
| Chassis | Tyre Specs.:Front | 10.00-20-16PR | |
| Tyre Specs.:Rear | 10.00-20-16PR | ||
| Tyres Qty,front/rear (X-drive wheels) | 4\2 | ||
| Wheel tread:Front | b10(mm) | 1677 | |
| Wheel tread:Rear | b11(mm) | 2013 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree(°) | 6\12 |
| Mast height(fork lowering) | h1(mm) | 3100 | |
| Mast lifting height | h3(mm) | 3000 | |
| Max.lifting height | h4(mm) | 4600 | |
| Height to head guard (height to cab) | h6(mm) | 3000 | |
| Overall height(with forks) | l1(mm) | 6055 | |
| Fork front vertical surface to the rear end of the vehicle | l2(mm) | 4855 | |
| Overall width | b1/b2(mm) | 2250 | |
| Fork dimension | s/e(mm) | 1200X180X90 | |
| Fork carriage width | b3(mm) | 2200 | |
| Mast min ground clearance (with load) | m1(mm) | 225 | |
| Wheelbase center min ground clearance(with load) | m2(mm) | 350 | |
| Min.Turning radius | Wa(mm) | 4450 | |
| Travel speed (with load/without load) | km/h | 23/26 | |
| Performance | Max.lifting speed (with load/without load) | mm/s | 220/270 |
| Max.Lowering speed (with load/without load) | mm/s | 450/300 | |
| Traction | N | 9000 | |
| Gradeablity (with load/without load) | % | 20/22 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine brand/model | Optional one | Yuchai engine | |
| Engine | YC6J175-T301 6.494L 110KW 2200rpm | ||
| Optional two | Dongfeng Cummins | ||
| QSB4.5-C130 4.5L 97KW 2200rpm | |||
| Cylinder No. | 4 | ||
| Others | Transmission gears(Front/rear) | 2\2 | |
| Attachments working pressure | bar | 160 | |
| Attachments using oil amount | l/min | 40 |
