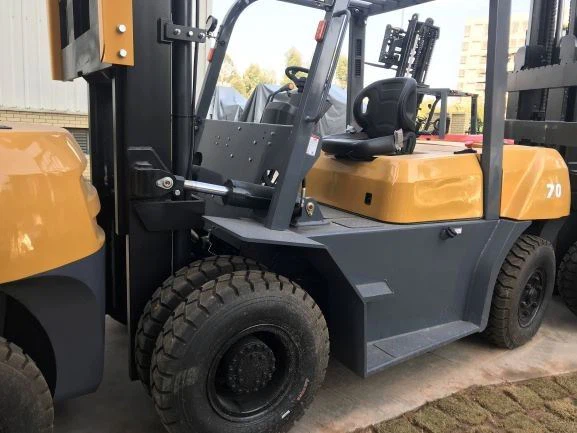

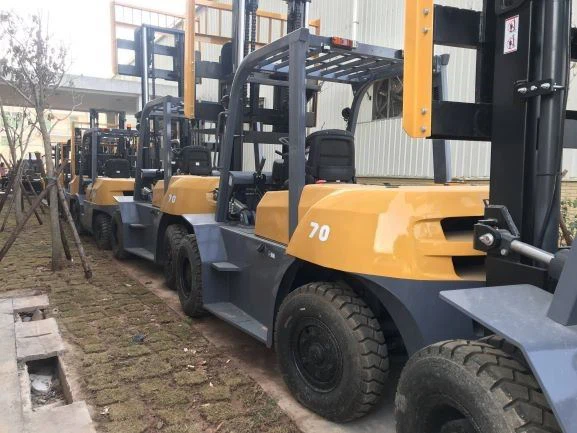

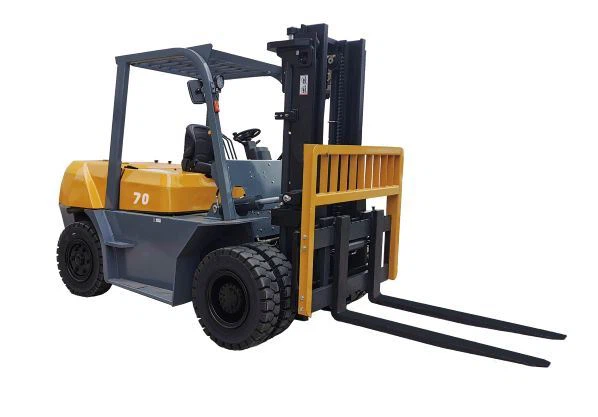

7 Ton Forklift big joe lift truck Engine Mitsubishi Lift Height 6 Meter Mast 3 Stage Work For Logistics And Warehouse
High Efficiency
Energy Saving
New
A Radical Innovation To Establish a new industry model How can we design the forklift so as to satisfy the needs of managers,drivers and piled goods!

PIC;JOHN CHEN
WA;0086 18106938692
EMAIL;john@socmachinery.com
Parameter:
| Model | UNIT | FD70T | ||||
| Specifications | Power Unit | Diesel | ||||
| Operator Type | Driver/seat | |||||
| Transimission Bo× Type | Electronic hydraulic transmisson | |||||
| Rated Capacity | kg | 7000 | ||||
| Load Center | mm | 600 | ||||
| Ma×.Lifting Height | mm | 3000 | ||||
| Tire Type | Pneumatic Tyre | |||||
| Tire Number | Front | 4 | ||||
| Rear | 2 | |||||
| Tire Size | Front | 8.25×15-14PR | ||||
| Rear | 8.25×15-14PR | |||||
| Performance× | Lifting Speed | Loaded | mm/s | 450 | ||
| Unloaded | 500 | |||||
| Lowering Speed | Loaded | mm/s | 500 | |||
| Unloaded | 450 | |||||
| Travelling Speed | Loaded | km/h | 25 | |||
| Unloaded | 30 | |||||
| Ma×.Gradeability (Loaded) | % | 27 | ||||
| Ma×.Drawbar Pull (Loaded) | kg | 5400 | ||||
| Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 | ||||
| Free Lifting Height | mm | 155 | ||||
| Turning Radius | mm | 3370 | ||||
| Dimensions | Overall Length (with fork) | mm | 4870 | |||
| Overall Width | mm | 2000 | ||||
| Overhead Guard Height | mm | 2480 | ||||
| Fork Size (L×W×T) | mm | 1220×150×65 | ||||
| Mast Height (Fork lowered) | mm | 2500 | ||||
| Battery (Voltage/Capacity) | V/Ah | 2×12/90 | ||||
| Truck Weight | kg | 9200 | ||||
| Fuel Tank Capacity | L | 135 | ||||
| Engine | Brand | ISUZU | MITSUBISH | CHAOCHAI | ||
| Model | 6BG1 | S6S-T | 6102 | |||
| Rated Power | kw/rpm | 82.3/2000 | 67.6/2300 | 80.8/250 | ||
| Rated torque | n-m/rpm | 418/1500 | 293/1700 | 354/1650 | ||
| Number Of Cylinder | 6 | 6 | 6 | |||
| Displacement | 6.49 | 4.99 | 5.78 | |||

Socma small and big forklift related information and news share
Industrial handling vehicles are widely used in ports, stations, airports, freight yards, factory workshops, warehouses, circulation centers and distribution centers, etc., to carry out pallet cargo loading and unloading and handling operations in cabins, carriages and containers. It is a must in pallet transportation and container transportation. Indispensable equipment.
Forklifts play a very important role in the company's logistics system and are the main force in material handling equipment. It is widely used in various sectors of the national economy such as stations, ports, airports, factories, warehouses, etc. During the Second World War, forklifts were developed. China began manufacturing forklifts in the early 1950s. Especially with the rapid development of China's economy, the material handling of most companies has been separated from the original manual handling, and replaced by forklift-based mechanized handling. Therefore, in the past few years, the demand for China's forklift market has grown at a double-digit rate every year.
There are many forklift brands available on the market, the models are complex, and the products themselves are highly technical and very professional. Therefore, the choice of models and the choice of suppliers are often problems faced by many purchasing companies. This article focuses on the introduction of model selection, brand selection, performance evaluation criteria and the contribution rate of my country's forklifts in the overseas market. The basic operation functions of forklifts are divided into horizontal handling, stacking/picking, loading/unloading, and picking. According to the operational functions that the enterprise wants to achieve, it can be preliminarily determined from the models described above. In addition, special operating functions will affect the specific configuration of the forklift, such as paper rolls, molten iron, etc., which require the forklift to install attachments to complete special functions.
The operating requirements of forklifts include general requirements such as pallet or cargo specifications, lifting height, operating channel width, and gradeability. At the same time, it is also necessary to consider operating efficiency (different models have different efficiency), operating habits (such as habitual driving or standing driving), etc. Requirements. If the company needs to move the goods or the warehouse environment has environmental protection requirements such as noise or exhaust emissions, it should be considered when selecting models and configurations. If it is in a cold storage or in an environment with explosion-proof requirements, the configuration of the forklift should also be cold storage or explosion-proof. Carefully examine the locations that the forklift needs to pass through, and imagine possible problems, such as whether the door height affects the forklift when entering and exiting the warehouse; when entering and leaving the elevator, the impact of the elevator height and load on the forklift; when working upstairs, the floor bearing Whether it meets the corresponding requirements, etc.








Hot Tags: 7 ton forklift big joe lift truck engine mitsubishi lift height 6 meter mast 3 stage work for logistics and warehouse, China, manufacturers, factory, customized
