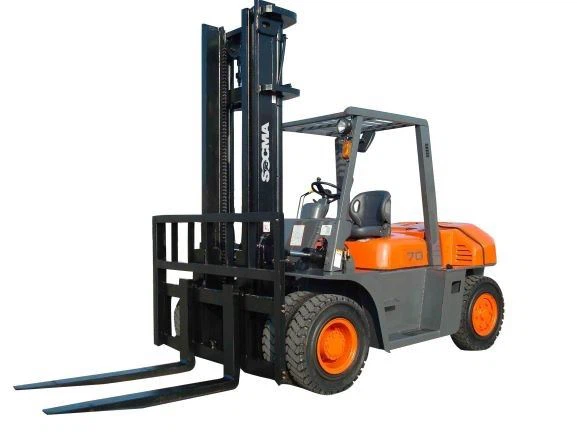

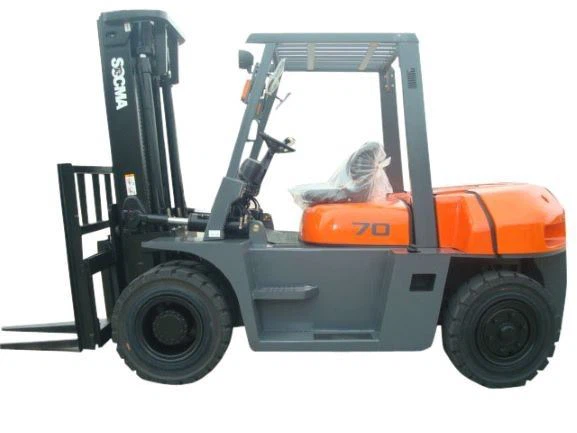

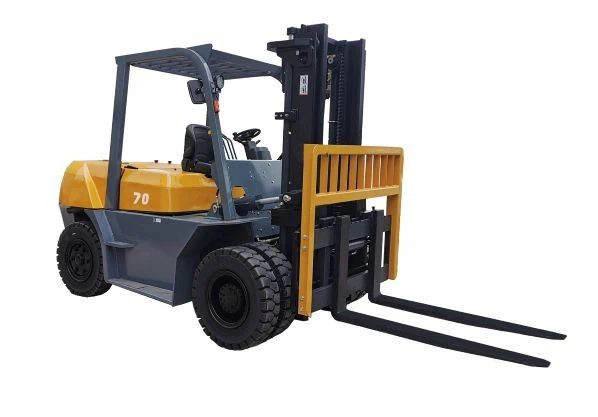

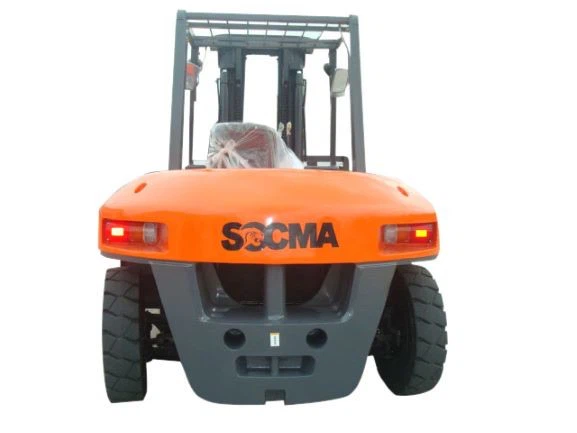

7 Ton Diesel Forklift Isuzu Engine Work In Warehouse Depot Logistics Center
7 Ton Diesel Forklift Isuzu Engine Work In Warehouse Depot Logistics Center
7 Ton Diesel Forklift Isuzu Engine Work In Warehouse Depot Logistics Center
7 Ton Diesel Forklift Isuzu Engine Work In Warehouse Depot Logistics Center
7 Ton Diesel Forklift Isuzu Engine Work In Warehouse Depot Logistics Center
7 Ton Diesel Forklift Isuzu Engine Work In Warehouse Depot Logistics Center
7 Ton Diesel Forklift Isuzu Engine Work In Warehouse Depot Logistics Center
7 Ton Diesel Forklift Isuzu Engine Work In Warehouse Depot Logistics Center
7 Ton Diesel Forklift Isuzu Engine Work In Warehouse Depot Logistics Center
7 Ton Diesel Forklift Isuzu Engine Work In Warehouse Depot Logistics Center

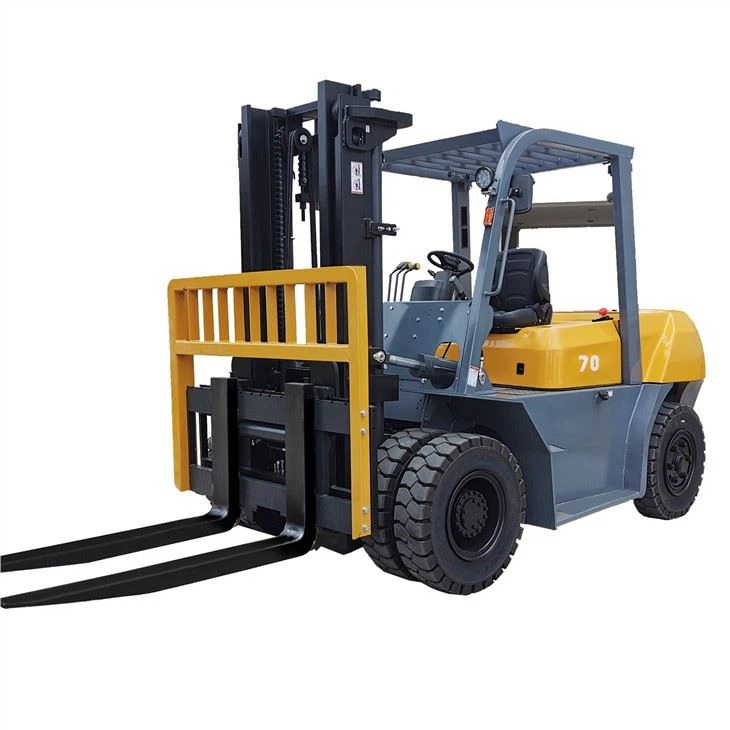

7 Ton Diesel Forklift big joe lift parts Isuzu Engine Work In Warehouse Depot Logistics Center
High Efficiency
Energy Saving
New
A Radical Innovation To Establish a new industry model How can we design the forklift so as to satisfy the needs of managers,drivers and piled goods!
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of 7 ton diesel forklift big joe lift parts isuzu engine work in warehouse depot logistics center in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
PIC;JOHN CHEN
WA;0086 18106938692
EMAIL;john@socmachinery.com
Parameter:
| Model | UNIT | FD70T | ||||
| Specifications | Power Unit | Diesel | ||||
| Operator Type | Driver/seat | |||||
| Transimission Bo× Type | Electronic hydraulic transmisson | |||||
| Rated Capacity | kg | 7000 | ||||
| Load Center | mm | 600 | ||||
| Ma×.Lifting Height | mm | 3000 | ||||
| Tire Type | Pneumatic Tyre | |||||
| Tire Number | Front | 4 | ||||
| Rear | 2 | |||||
| Tire Size | Front | 8.25×15-14PR | ||||
| Rear | 8.25×15-14PR | |||||
| Performance× | Lifting Speed | Loaded | mm/s | 450 | ||
| Unloaded | 500 | |||||
| Lowering Speed | Loaded | mm/s | 500 | |||
| Unloaded | 450 | |||||
| Travelling Speed | Loaded | km/h | 25 | |||
| Unloaded | 30 | |||||
| Ma×.Gradeability (Loaded) | % | 27 | ||||
| Ma×.Drawbar Pull (Loaded) | kg | 5400 | ||||
| Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 | ||||
| Free Lifting Height | mm | 155 | ||||
| Turning Radius | mm | 3370 | ||||
| Dimensions | Overall Length (with fork) | mm | 4870 | |||
| Overall Width | mm | 2000 | ||||
| Overhead Guard Height | mm | 2480 | ||||
| Fork Size (L×W×T) | mm | 1220×150×65 | ||||
| Mast Height (Fork lowered) | mm | 2500 | ||||
| Battery (Voltage/Capacity) | V/Ah | 2×12/90 | ||||
| Truck Weight | kg | 9200 | ||||
| Fuel Tank Capacity | L | 135 | ||||
| Engine | Brand | ISUZU | MITSUBISH | CHAOCHAI | ||
| Model | 6BG1 | S6S-T | 6102 | |||
| Rated Power | kw/rpm | 82.3/2000 | 67.6/2300 | 80.8/250 | ||
| Rated torque | n-m/rpm | 418/1500 | 293/1700 | 354/1650 | ||
| Number Of Cylinder | 6 | 6 | 6 | |||
| Displacement | 6.49 | 4.99 | 5.78 | |||
