Name: China Customized SOCMA Electric 45T Reach Stacker For Container Low Carbon Port Equipment Manufacturers and Factory - SOCMA
Brand: SOCMA
SKU: 173924958

"Carbon peaking and carbon neutralization" has become a hot word at present, and the new energy industry is accelerating its development for the better. For the port machinery industry, pure electric equipment is becoming a new favorite of green ports with many advantages such as "zero emission, energy conservation and environmental protection, and minimal noise".

Send Inquiry

Product Introduction

Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma electric 45t reach stacker for container low carbon port equipment in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.

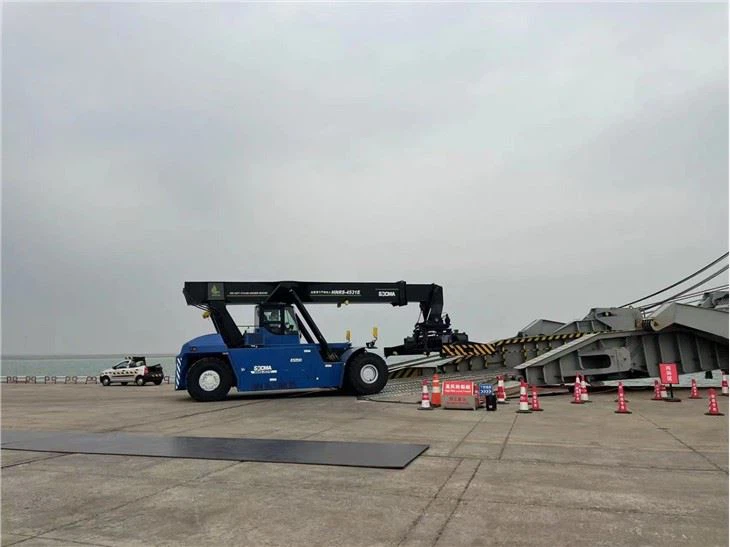

45T Reach Stacker for Container Low Carbon Port Equipment

_20220425120107

_202202180925001

_20220425120128

_20220425120137

_20220425120142

NOTICE

All information in the brochure is provided for reference only. Never rely on it to operate the machine. Refer to the operation manual for operation instructions of the machine.
Container reach stacker belong to off-road machines. Local traffic rules and regulations must be observed. For long-distance job site transfer, use a trailer and take GVW, axle load and dimensions of the machine into consideration.
The machine must be operated on firm ground, which gradient does not exceed 3%.
Operation of the machine is permissible only when the wind force is below grade 6.When operating the machine under wind, it is necessary to observe wind speed, equipment status and operating environment. In addition, the wind velocity on the ground is different with that in the high air, and it is also different on flat ground and in city air, which shall be taken into account.
SPECIFICATION

No.	Item		Unit	Parameter	Tolerance
1	length		mm	11340	±2%
2	Width	Spreader	mm	6053	±2%
3	Width	Front wheel	mm	4200	±2%
4	Height		mm	4670	±2%
5	Wheelbase		mm	6000	±1%
6	Trace	Front	mm	3033	±1%
7	Trace	Rear	mm	2790	±1%
8	Overhang	Front	mm	840	±1%
9	Overhang	Rear	mm	1194	±1%
10	Min. ground clearance		mm	350	±1%
11	Min. turning radius		mm	8000	<102%
12	Max. gradeability		%	13%	>90%
13	Dead weight		kg	71200	±3%
14	Rated lifting capacity		kg	45000	—
15	Stacking capacity		—	5-5-4	—
16	Max. lifting height		mm	15100	±1.5%
17	Max. lifting speed	Unloaded	mm/s	420	±10%
18	Max. lifting speed	Rated load	mm/s	250	±10%
19	Max. lowering speed	Unloaded	mm/s	360	±10%
20	Max. lowering speed	Rated load	mm/s	300	±10%
21	Max. traveling speed	Unloaded	km/h	20	±10%
22	Max. traveling speed	Rated load	km/h	14	±10%
23	Aisle width	20'	mm	11300	±2%
24	Aisle width	40'	mm	13600	±2%
