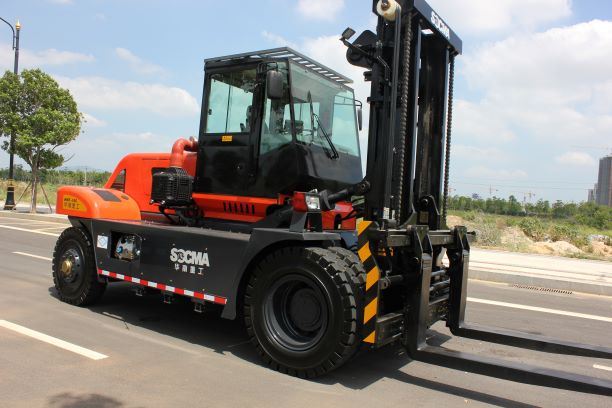

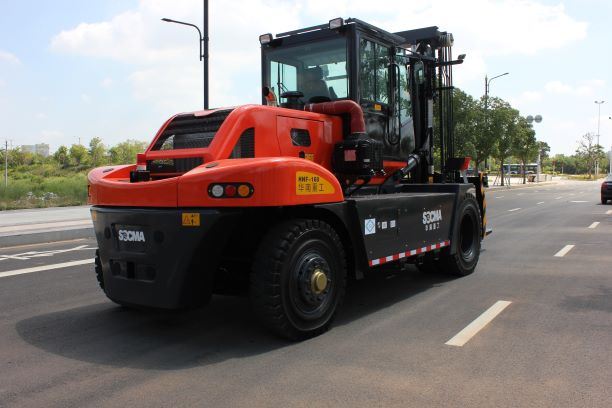

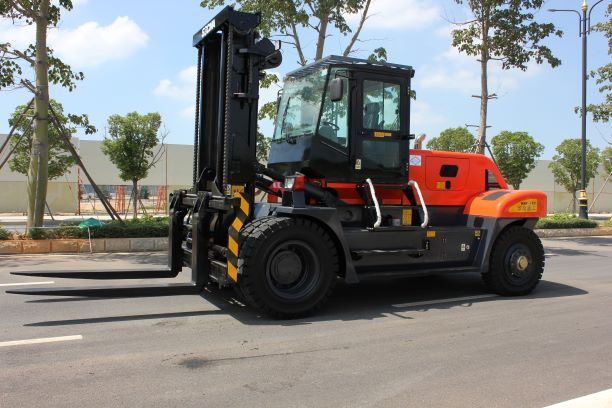

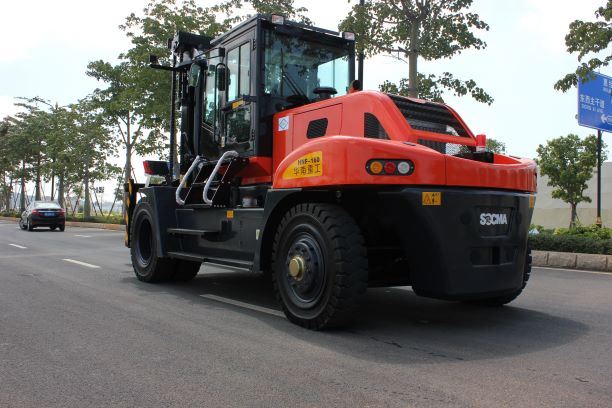

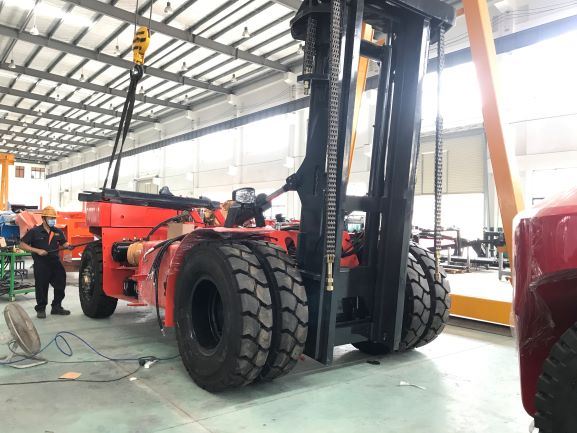

Socma 16 Ton Heavy Lift Forklift Truck heavy equipment forklift Engine LNG cheap price
Engine: Famous Brand in China ,low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection.
Steering system: Equipped transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma 16 ton heavy lift forklift truck heavy equipment forklift engine lng cheap price in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
PIC:John Chen
Mobile:008618106938692
Email:john@socmachinery.com
| Technical Parameter | |||
| Design details | |||
| Item | HNF-160 | ||
| Features | Rated Load | Q（t） | 16 |
| Load center | c（mm） | 900 | |
| Wheelbase | y（mm） | 3800 | |
| Weight | Weight | kg | 25000 |
| Chassis | Tyre Specs.:Front | 12.00-24-18PR | |
| Tyre Specs.:Rear | 12.00-20-18PR | ||
| Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
| Wheel tread:Front | b10（mm） | 2060 | |
| Wheel tread:Rear | b11（mm） | 2330 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
| Mast height(fork lowering) | h1（mm） | 3625 | |
| Mast lifting height | h3（mm） | 3500 | |
| Max.lifting height | h4（mm） | 5375 | |
| Height to head guard(height to cab) | h6（mm） | 3365 | |
| Overall Length(with forks) | l1（mm） | 7640 | |
| Fork front vertical surface to the rear end of the vehicle | l2（mm） | 5840 | |
| Overall width | b1/b2（mm） | 2750 | |
| Fork Dimension | s/e（mm） | 1800X220X100 | |
| Fork carriage width | b3（mm） | 2700 | |
| Mast min ground clearance(with load) | m1（mm） | 265 | |
| Wheelbase center min ground clearance(with load) | m2（mm） | 325 | |
| Min.Turning radius | Wa（mm） | 5800 | |
| Travel speed(with load/without load) | km/h | 26/30 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 250/260 |
| Max.Lowering speed(with load/without load) | mm/s | 430/330 | |
| Traction | kN | 150 | |
| Grade ablity(with load/without load) | ％ | 20/21 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine | Engine brand/model | Optional one | Yuchai engine |
| YC6J175-T302 6.494L 129KW 2200rpm | |||
| Optional two | Dongfeng Cummins | ||
| QSB6.7-C190 6.7L 142KW 2200rpm | |||
| Cylinder No. | 6 | ||
| Others | Transmission gears(Front/rear) | 2\1 | |
| Attachments working pressure | Mpa | 16 | |
| Attachments using oil amount | l/min | 60 | |
Socma Forklift related information and news share:
Liquefied natural gas, as a clean and environmentally friendly high-quality energy source, has a low content of sulfur, dust and other harmful substances. The harmful gases in the exhaust gas are greatly reduced, and sulfur oxides are reduced to zero, which can fundamentally improve the environmental quality. Compared with diesel forklifts of the same tonnage, the fuel economy can save more than 20% of fuel costs and reduce the use cost. The power of the whole machine is strong. It adopts an electronically controlled natural gas engine specially developed for forklifts, which has superior power performance.
Low noise, low vibration, compared with gasoline and diesel, it has a higher octane number, good anti-knock performance, and significantly reduces the noise and vibration of the vehicle. The whole machine is developed on the basis of Heli's classic H2000 model, with mature and reliable systems. Choose domestic well-known brand LNG vehicle cylinders, and the quality is guaranteed.
With a long cruising range, a bottle of LNG fuel can work continuously for about 2 to 3 working days under normal labor intensity. The low temperature start performance is good, the minimum start temperature is -30℃. Can provide LNG single fuel forklift, gasoline LNG dual fuel forklift for users to choose.
