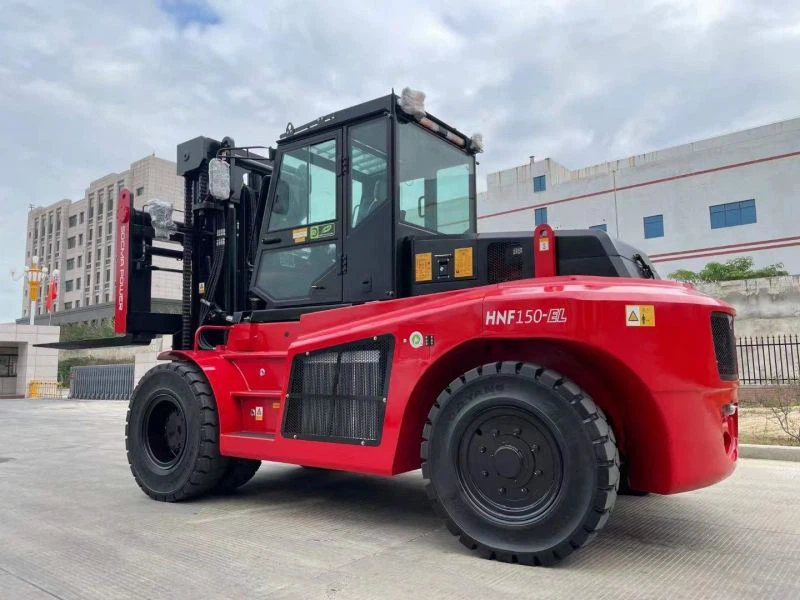

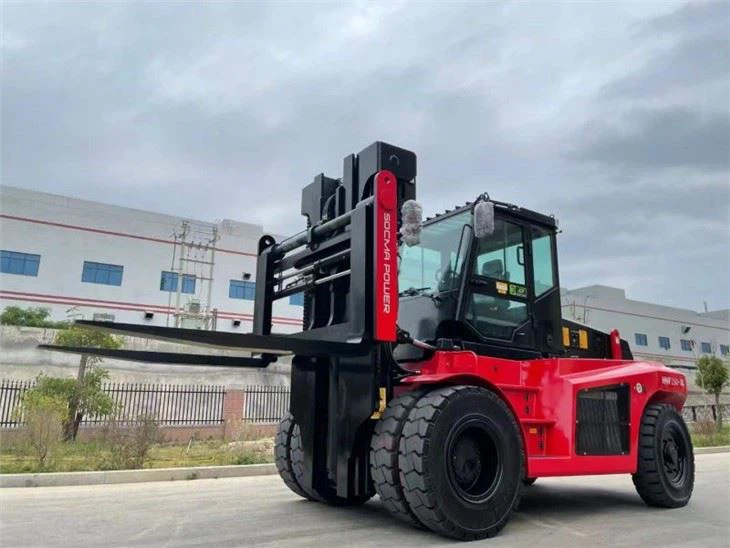

SOCMA 16ton Electric Forklift Lithium Battery

Battery warranty: 5 years or 4000（2800） charge and discharge (battery attenuation is not more than 30%) Motor and Electric Control warranty: 3 years Hydraulic and Mechanical Transmission warranty: 1 year and（or） 2000 hours. During the warranty period, if the vehicle has a non-human fault. After...

Send Inquiry

Product Introduction

Battery warranty: 5 years or 4000（2800） charge and discharge (battery attenuation is not more than 30%)

Motor and Electric Control warranty: 3 years

Hydraulic and Mechanical Transmission warranty: 1 year and（or） 2000 hours. During the warranty period, if the vehicle has a non-human fault. After seller confirm and approve,it is the seller’s responsibility to provide the necessary accessories and technical

Main application Range:

Thermal power plants,

Biological power plants,

Steel plants

Grain terminals,

Granaries

Mining

Municipal

Farm

Tunnel construction

Bulk Terminal

Aluminum company

Airport

Lithium Iron Phosphate 175kwh Engergy consumption 18kWh/h Battery recylce life 4000 times Edurance time 8 hours 600mm load center Full cabin with AC Joystick control With hydraulic fork positioner and side shifter 2400mm fork length (Cascade brand) Two stage wide view mast, 3000mm lifting height Pneumatic tires (4/2) Hydraulic clamp disc With 120KW charger Welcome inquiry sunny@socmachinery.com whatsApp&wechat 0086 18859225922

Performance Parameter Rated Lifting Capacity 15000kg Load Center 600mm Operation Weight 20500kg Lifting Height 3000mm Tilt Angle (F/R) 6°/12° Driving speed (Load/Unload) 8.5 / 9 km/h Gradeability 15% Rated Traction 50kN Motor Type
Permanent magnet synchronous motor Motor rated power 90kW Rotation Speed 3500rpm Motor Type
Permanent magnet synchronous motor Motor rated power 74kW Rotation Speed 1800rpm Type of battery Lithium iron phosphate Rated storage power of the battery 175kWh Battery rated capacity 302Ah Voltage 579.6V Full charge and discharge cycles 4000C Service Lifetime >8 Year Charging Time 1.0-1.5 Presure 19MPa Flow 160L/min Max.lifting speed (load/unload) 310/320mm/s Max.lowering speed (load/unload) 340/320mm/s Presure 14MPa Steering mode Tap-type cylinder steering Steering angle 55° Service brake Disc Brake Parking brake Clamp spring brake Overall Height 3150mm Overall Width 2350mm Overall Length 4900mm Axle Distance 3300mm Wheel Distance(Front/Back) 1710 /1975mm Fork Dimensions 1200×180×90mm Ground Clearance 235mm Turning Radius(Outside) ≤5550mm Numbers(Frnt/Rear) 4/2 Tyre Specifications(Front/Back) 12.00-20/11.00-20
