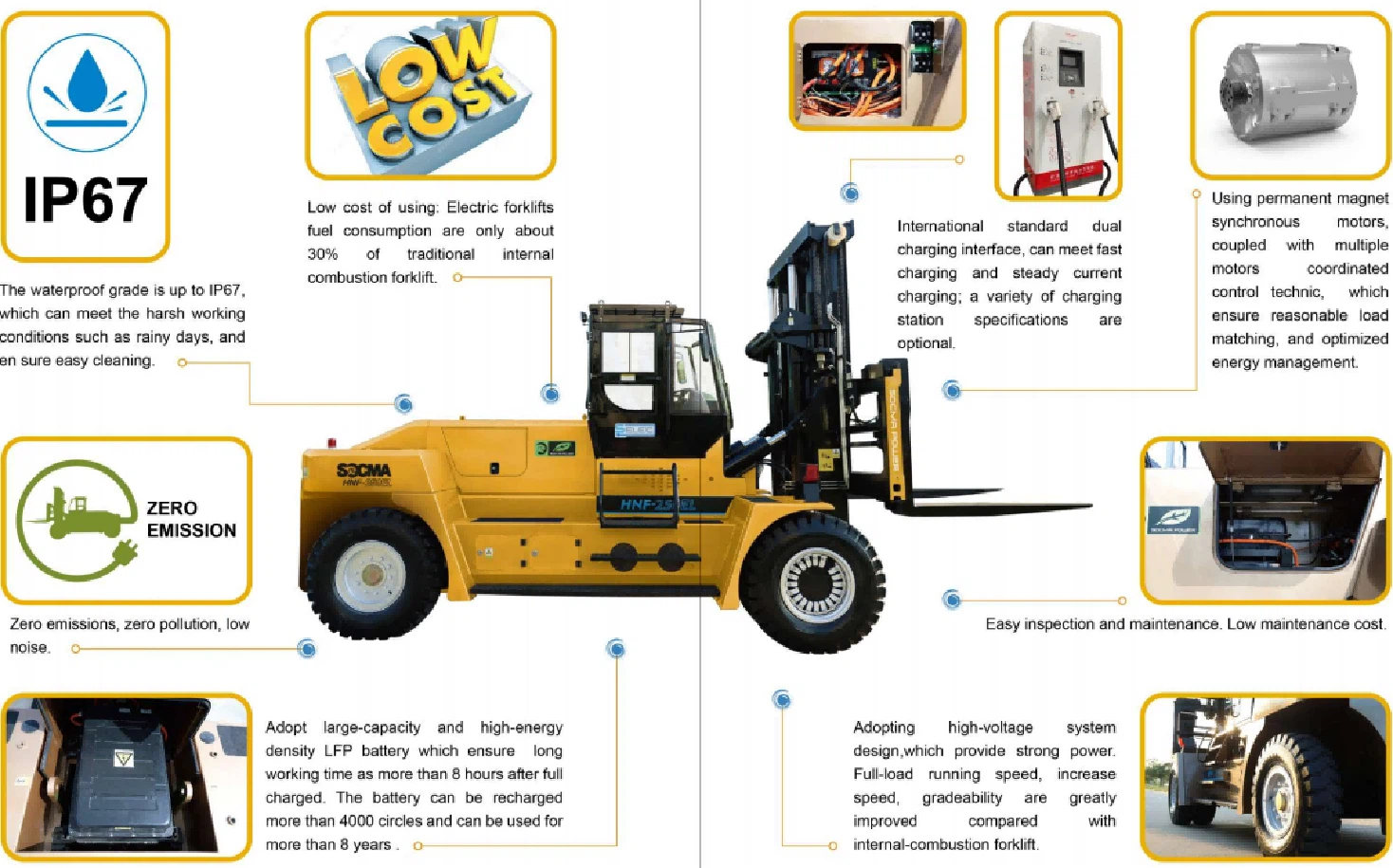

SOCMA 10ton Electric Forklift For Steel Yard
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma 10ton electric forklift for steel yard in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
Product | Configuration |
HNF-100EL10t Lithium battery forklift | 600mm load center With closed cabin&air condition Carriage width 2430mm capable of handling 20ft container 4000mm lifting height, two-stage wide view mast With a quick-change shelf, a fork length of 2440mm Battery type: lithium-ion 141kwh Energy consumption 12-16 kWh/h Battery recycle life 4000 times Endurance time 7-9 hours Motor type: permanent magnet synchronous motor Steering type: full hydraulic steering Potential energy, braking energy recovery |
Optional Configuration
| With a hinge, a fork can load 7000kg@800mm Tilting degree 60° Effective Thickness 495mm Self weight:775kg |
With roll prong 1800mm, diameter 219mm | |
With a Side-shifting fork positioner |
Battery | Battery type | LiFePO |
Battery rated storage capacity | 141kwh | |
Rated capacity of the battery | 228AH | |
Rated voltage | 618V | |
Rounds of full charge and discharge cycles | More than4000times | |
Theoretical service life | >8years | |
Charge time | 1.5-2h（Variance with the charger） | |
Power consumption | 12-16kWh/h（based on standard forklift working conditions） | |
Driving system | Motor type | Permanent magnet synchronous motor |
Motor rated | 90kW | |
Transmission | Motor direct drive | |
Hydraulic system | Motor type | Permanent magnet synchronous motor |
Motor rated | 74kW | |
Pressure | 20 MPa | |
Steering system | Steering gear model | Full hydraulic steering |
Pressure | 14 MPa | |
Steering type | Horizontal cylinder steering |
