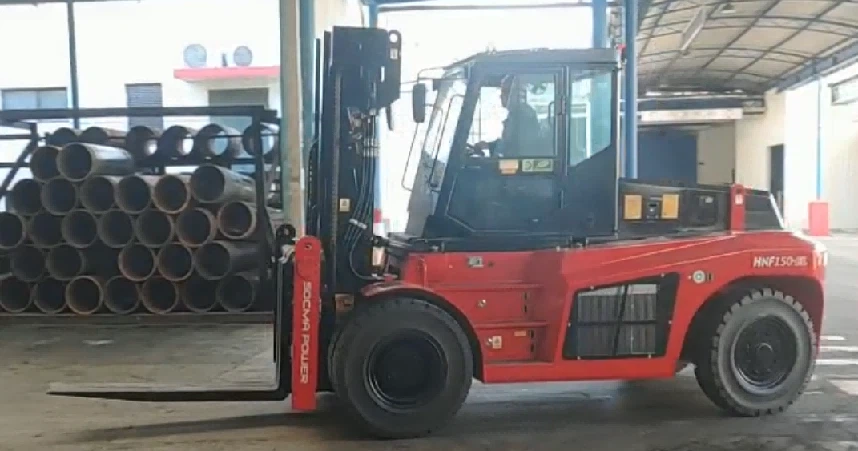

SOCMA 16ton Electric Forklifts For Steel Yard
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma 16ton electric forklifts for steel yard in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
SOCMA IS THE FIRST CHINESE MANUFACTURER THAT PRODUCES ELECTRIC HEAVY-DUTY FORKLIFTS!
Product | Configuration |
HNF160-EL 16t Compact electric Forklift | 600mm load center With closed cabin&air condition Carriage width 2430mm capable of handling 20ft container 4000mm lifting height, two-stage wide view mast With a quick-change shelf, a fork length of 2440mm Battery type: lithium-ion 175kwh Energy consumption 15-21kWh/h Battery recycle life 4000 times Endurance time 7-9 hours Motor type: permanent magnet synchronous motor Steering type: full hydraulic steering Potential energy, braking energy recovery |
Optional Configuration | With a hinge, a fork can load 8000kg@1100mm Tilting degree 60° Effective Thickness 495mm Self weight:900kg |
With roll prong 1800mm, diameter 219mm | |
With a Side-shifting fork positioner |
Battery data
| Battery type | Lithium Iron Phosphate | |
Battery Energy | kwh | 175 | |
Battery capacity | Ah | 302 | |
Rated Voltage | v | 579.6 | |
Battery recycle life | times | 4000 | |
Battery lifespan | years | 8 | |
Charging time | hours | 1.0-1.5 | |
Energy consumption | 15-21kWh/h （based on standard forklift working condition） | ||
Travelling system | Battery type | Permanent magnet synchronous motor（PMSM） | |
Power of Travel Motor | kW | 74 | |
Transmission type | Motor direct drive | ||
Hydraulic system | Battery type | Permanent magnet synchronous motor（PMSM） | |
Power of Hydraulic pump motor | kW | 70 | |
Pressure | MPa | 19 | |
Steering system | Steering type | Full hydraulic | |
Pressure | MPa | 14 | |
Steering model | Transverse type hydraulic steering |
