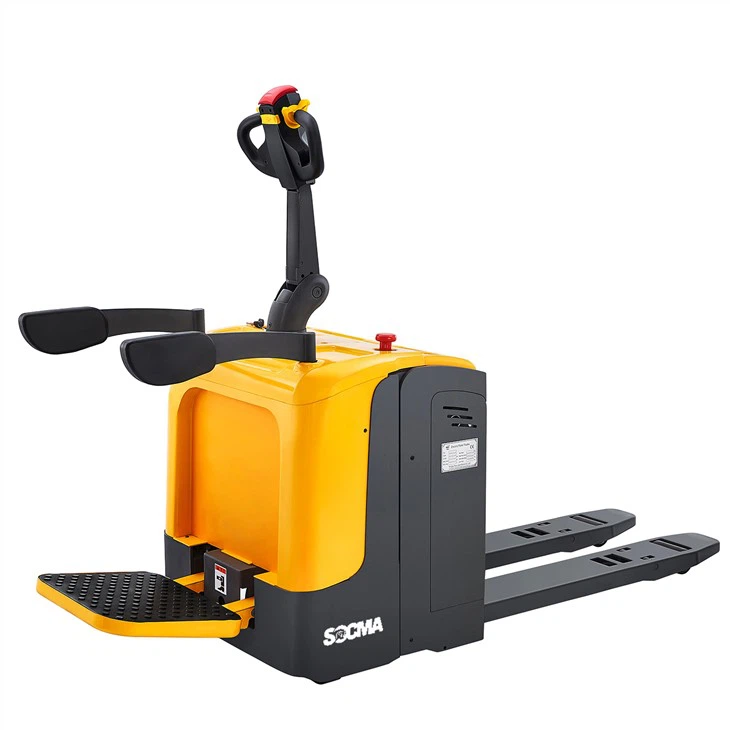

SOCMA 2 Ton Electric Pallet Truck Warehouse Equipment
AC motor warehouse machine
It is suitable for heavy load and long-term cargo transfer conditions, which can greatly improve the efficiency of cargo handling and reduce labor intensity.
The electric pallet truck is a light and small storage industrial vehicle that is widely used at home and abroad and has huge market potential. It is powered by a battery, driven by a DC motor, lifting of hydraulic workstation, centralized control of the control handle, and standing driving. Electric pallet truck operation is convenient, stable, and fast; Compact appearance, flexible operation; Low noise, low pollution, can work in shopping malls, supermarkets, warehouses, goods yards, workshops and other places, especially suitable for food, textile, printing and other light industry.
Model | CBD20R-II | ||||
Capacity | (lbs) | 4400 | (kg) | 2000 | |
Load centre distance | c | (inch) | 23.6 | (mm) | 600 |
Fork height, lowered | h13 | (inch) | 3.2 | (mm) | 82 |
Max. lift height | h3 | (inch) | 8 | (mm) | 202 |
Height of tiller in drive position Min/Max. | h14 | (inch) | 45/56 | (mm) | 1150/1430 |
Overall length | l1 | (inch) | 67.3/69.3/72.0 | (mm) | 1710/1760/1830 |
Length to face of forks | l2 | (inch) | 24 | (mm) | 610 |
Overall width | b1 | (inch) | 30.5 | (mm) | 775 |
Fork dimensions | s/e/l | (inch) | 2.1/7.1/43.3(45.3/48) | (mm) | 53/180/1100(1150/1220) |
Width overall forks | b5 | (inch) | 20.5/21/25.6/27 | (mm) | 520/550/650/685 |
Aisle width for pallets 1000x1200lengthways | Ast | (inch) | 92.9/94.7/97.4 | (mm) | 2360/2405/2475 |
Aisle width for pallets 800x1200lengthways | Ast | (inch) | 88.4/89.4/90.7 | (mm) | 2245/2270/2305 |
Turning radius | Wa | (inch) | 61/63/65.8 | (mm) | 1550/1600/1670 |
Travel speed, laden/unladen | (Km/h) | 7/7.1 | Km/h | 7/7.1 | |
Battery Voltage, normal capacity K5 | V/Ah | 24/210 | |||
Truck weight | (lbs) | 1588 | (kg) | 720 | |
