Electric Walking Pallet Truck Warehouse Equipment
Electric Pallet trick
Mini type with same size to hand pallet
Narrow aisle working
Easy to operation
Cheap in buldk
Made in China
1 year warranty
Mini type with same size to hand pallet
Narrow aisle working
Easy to operation
Cheap in buldk
Made in China
1 year warranty
Send Inquiry
Product Introduction
Electric Walking Pallet Truck warehouse equipment

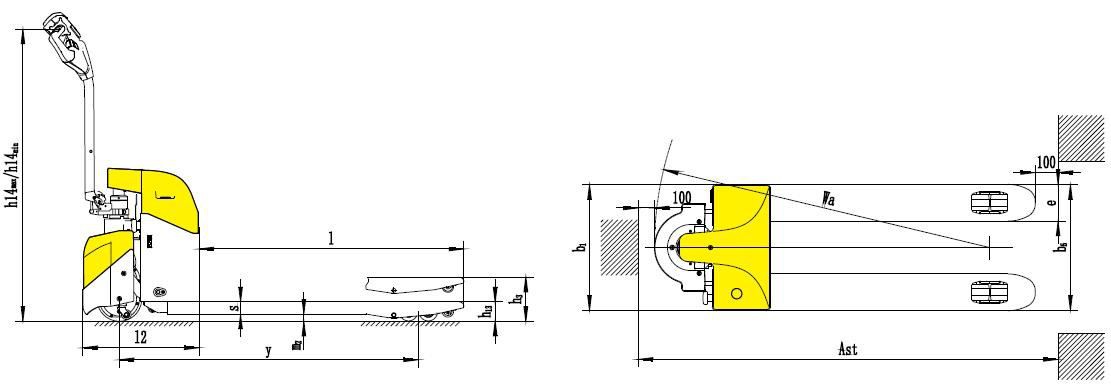

| Model | CBD15W-E | ||
| Capacity | (lbs) | 3300 | |
| Load centre distance | c | (inch) | 23.6 |
| Fork height, lowered | h13 | (inch) | 3.0 |
| Max. lift height | h3 | (inch) | 7.08 |
| Height of tiller in drive position Min/Max. | h14 | (inch) | 27.5/49.2 |
| Overall length | l1 | (inch) | 67.8 |
| Length to face of forks | l2 | (inch) | 19.8 |
| Overall width | b1 | (inch) | 27.0 |
| Fork dimensions | s/e/l | (inch) | 2.0/6.3/48 |
| Width overall forks | b5 | (inch) | 27.0 |
| Aisle width for pallets 1000x1200lengthways | Ast | (inch) | 91.6 |
| Aisle width for pallets 800x1200lengthways | Ast | (inch) | 93.1 |
| Turning radius | Wa | (inch) | 56.1 |
| Travel speed, laden/unladen | Miles/H | 2.67/2.98 | |
| Battery Voltage, normal capacity K5 | V/Ah | 24/65 | |
| Truck weight | (lbs) | 452 |
Hot Tags: electric walking pallet truck warehouse equipment, China, manufacturers, factory, customized
