SOCMA Electric 25 Ton Wheel Excavator

Name: China Customized SOCMA Electric 25 Ton Wheel Excavator Manufacturers and Factory - SOCMA
Brand: SOCMA
SKU: 198267636

HNE80W-EL electric wheel excavator is an earthmoving machinery,suitable for excavating , loading and unloading in mining, construction, road, hydroelectric project,forestry,port,freight yard. With attachments it can crash stone,disassemble,grab woods and steers, also has the functions of bulldozer and loader.It is a multi-function, high-efficiency construction machine. HNE80W-EL electric wheel excavator change the tradition way of using diesel engine power into electric motor and lithium battery as power source,”Zero emissions, zero pollution, low noise, low energy consumption”,meet the requirement of energy conservation.

Send Inquiry

Product Introduction

Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma electric 25 ton wheel excavator in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.

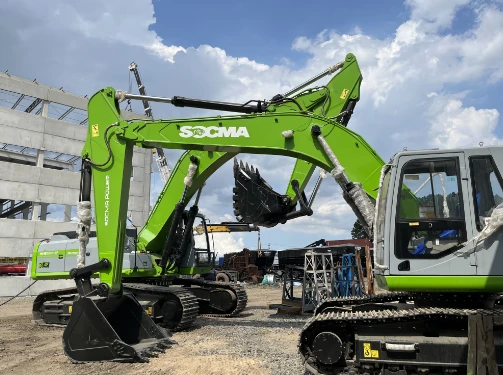

SOCMA ELECRTIC EXCAVATOR

product-505-377

SOCMA lead the heavy machinery manufacturer in China.

In recent years, with the increasingly serious environmental problems and the acceleration of the global "low-carbon" trend, the development of low-carbon economy is the trend and trend of the world.

In the construction machinery industry, increasingly strict environmental protection policies and strengthened policy implementation have set the tone for the transformation of green coating in the construction machinery industry.

Description		Unit	HNE250C-EP
Basic parameters	Standard bucket capacity	m³	1.2
Basic parameters	Operating Weight	t	25.5
System Operating Pressure	Implement Circuits	MPa	31.4
	Power Boost	MPa	34.3
	Swing Circuits	MPa	24.5
	Travel Circuits	MPa	31.3
	Maximum Rated Flow of main pumps	L/min	2×212
Working range Parameters	Numbers of track board(per side)	Per side	51
	Carrier Rollers(per side)	Per side	2
	Track Rollers (per side)	Per side	9
	Average Ground Pressure	Kpa	50
	Boom	mm	6000
	Arm	mm	2960
	Maximum digging Radius	mm	10290
	Maximum Digging Depth	mm	6940
	Maximum Vertical digging depth	mm	6100
	Maximum digging height	mm	9680
	Maximum dumping height	mm	6785
Performance parameters of the whole machine	Max excavating force(arm/bucket)	kN	135/170
	Swing Speed	r/min	10.5
	Travel Speed(high/low)	km/h	5.3/3.5
	Grading capacity	°/%	35°/70%
	Max.traction	kN	205
	Noises at driver location	dB(A)	77
Overall dimensions	Overall lenth	mm	10140
	Overall width	mm	3190
	Overall height	mm	3100
	Hydraulic Oil Filling Capacity/Hydraulic Oil Tank Capacity	L	204/324
High voltage management unit (Grid input)	Rated power	kW	120
High voltage management unit (Grid input)	Peak power	kW	160
Motor system	Rated power	kW	126.5
	Rated torque	Nm	672
	Rated speed	rpm	1800
	Rated frequency	Hz	120
	Rated voltage	V	380
	Rated current	A	252
