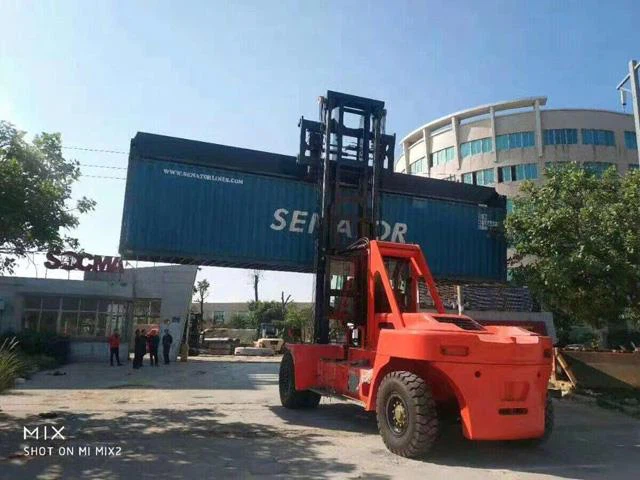

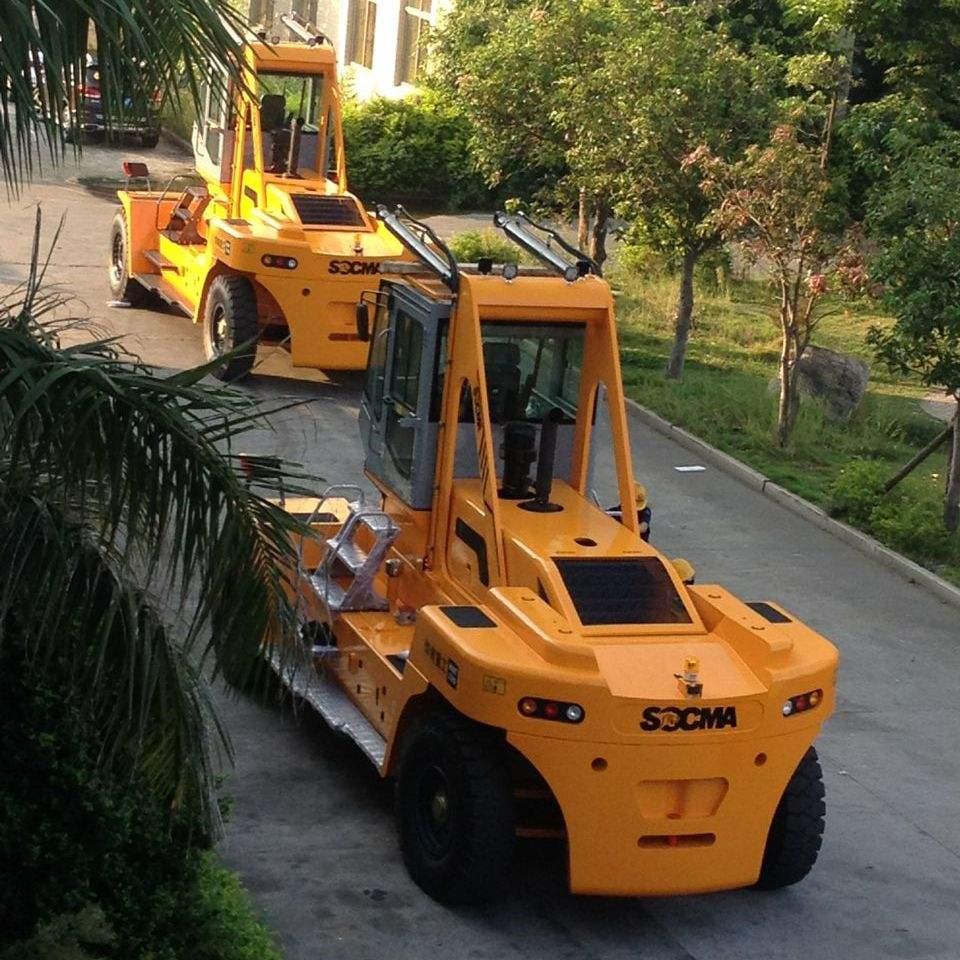

SOCMA 35T Heavy Duty Forklift
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma 35t heavy duty forklift in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
SOCMA 35t forklift truck,35t lifting truck,35t heavy duty forklift truck,35t heavy duty forklifts,35t forklifts,35t lift truck,35t lifting forklift for containers,
Engine: It adopts the energy-saving and environmentally friendly Weichai WD10G240E21 Landking Power II low-speed diesel engine, the emission reaches the non-road phase II standard, and has the characteristics of high torque, low fuel consumption, and high reliability. At the same time, equipped with a water tank with an enlarged heat dissipation area, the diesel engine system has a better thermal balance effect and can continue to operate under severe working conditions.
Axle box: The planetary double variable assembly independently developed and produced,
high-strength heavy-duty planetary wheel-side reduction drive axle, 30 years of technology, excellent stability and reliability.
Tires: use well-known brands, good safety performance, wear-resistant and durable.
Fork: Standard equipped with hydraulic adjustable-pitch fork, easy to operate and reduce labor intensity
Hydraulic system: double pumps are combined, the system flow is small, the power consumption is low, the performance is reliable, and the operation performance is excellent
Other components: all components are standardized and can be used with other well-known domestic brand components

Technical parameter:
| Model | Unit | CPCD350 | |
Vehicle configuration | HNF-350 | |||
Performance | Rated load |
| 35000 | |
Load center |
| 1250 | ||
Mast tilt angle (front/rear) | º | 3/4 | ||
Overall dimensions | Length | mm | 9700 | |
Width | mm | 3860 | ||
Height | mm | 3860 | ||
Max. lifting height | mm | 3500 | ||
Height of mast extend | mm | 8670 | ||
Fork size (L*W*H) | mm | 2440X340X125 | ||
Min. turning radius | mm | 7260 | ||
Max. travel speed (with load) | Km/h | 25 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 44000 | ||
Tyre | Front |
| 4X16.00-25-32PR | |
Rear |
| 2X16.00-25-32PR | ||
Wheel tread | Front | mm | 2800 | |
Rear | mm | 2450 | ||
Wheelbase | mm | 4800 | ||
Min. ground clearance | mm | 400 | ||
Weichai Engine | Model |
| WP10G240E341 | |
Rated power/rotate speed | KW/r.pm | 194/2200 | ||
Cylinder No. |
| 6 | ||
DF Cummins Engine(optional) | Model |
| QSC8.3-C260 | |
Rated power/rotate speed | KW/r.pm | 194/2200 | ||
Cylinder No. |
| 6 | ||
