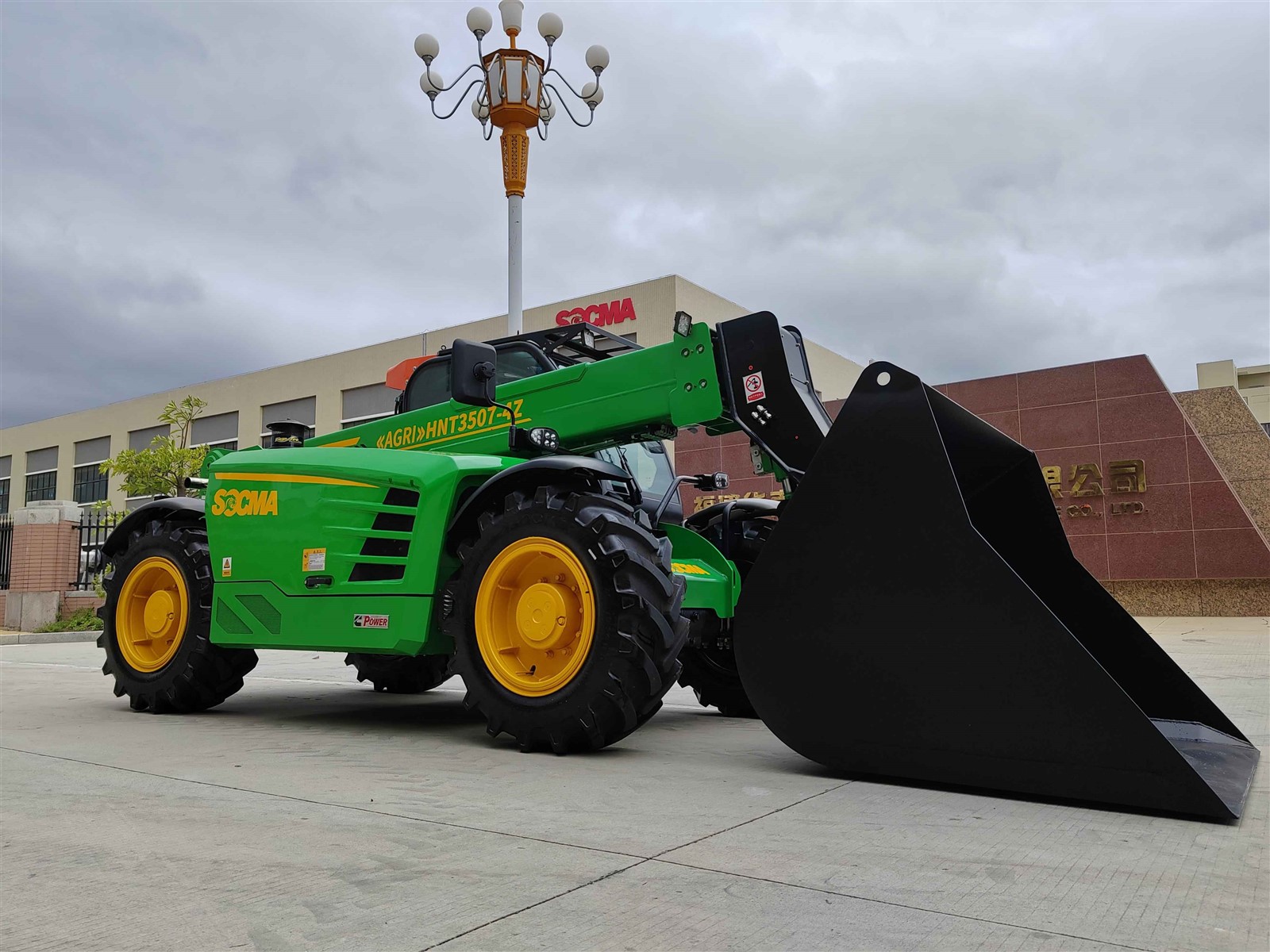

SOCMA 3.5ton Agriculture Telehandler
HNT3507-4Z
DF Cummins Engine, National stage 3 QSB3.9-C100, 74kW,
load center 500mm
hydrostatic transmission, Wet axle, four-wheel steering, four-wheel driving， Two-stage arm, 7-meter lifting height； Three-way valves； Cyclone air filter, ROPS&FOPS closed cabin with air condition(hot/cold), Joystick control, with pallet forks 1200mm, with customized tires pattern
Send Inquiry
Product Introduction
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma 3.5ton agriculture telehandler in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
| Items | Unit | Deviation allowed | HNT3507-4Z | ||
| Basic parameter | Rated load | kg | - | 3500 | |
| Load center | mm | - | 500 | ||
| Load capacity @ max. Forward reach | kg | - | 1500 | ||
| Basic boom max. Lifting height | mm | ±1.5% | 4750 | ||
| Max. Lifting height | mm | ±1.5% | 7050 | ||
Max. Horizontal reach |
mm | ±1.5% | 3220 | ||
Min. Horizontal reach |
mm | ±1.5% | 580 | ||
| Min. Ground clearance | mm | ±1.5% | 380 | ||
Min. Turning radius （ outer tyre center） |
mm | ≤105% | 4850 | ||
| Angle | Boom frame upward angle | ° | ±1.0 | 63 | |
| Boom frame downward angle | ° | ±1.0 | -3 | ||
| Operating weight | kg | ±5% | 8800 | ||
| Overall dimension | Length (with fork) | mm | ±2% | 5020 | |
| Width | mm | ±2% | 2250 | ||
| Height | mm | ±2% | 2340 | ||
| Wheel tread（Front/Rear) | mm | ±1% | 1790/1790 | ||
| Wheel base | mm | ±1% | 2900 | ||
Rated power / Rated turning speed |
kW/rpm | - | 60/2200 | ||
| Driving system | Max. Travelling speed (unloaded) |
km/h | ±10% | 25 | |
| Max. traction | Kn | ±10% | 71 | ||
| Gradeability | % | - | 25 | ||
| Tyre | Front （2 pcs） | - | - | 16/70-24-24PR | |
| Rear（2pcs） | - | - | 16/70-24-24PR | ||
| Engine | Dongfeng Cummins | - | National 2 | QSB3.9-C80 | |
| - | National 3 | ||||
Hydaulic system |
Without load extension/retraction time |
S | ±10% | 9/6 | |
| With load extension/retraction time | ±10% | 11/7 | |||
| Up/Down Time | ±10% | 13/9 | |||
| Fork up and down tilt angle | ° | ±1 | 10/64 | ||
