SOCMA 4.0 Ton Telescopic Forklift For Construction
Two-stage boom
Max. lifting height 7000mm,Fork length 1000mm
Hydraulic mechanical transmission,Hydraulic power steering,Hydraulic braking
Four wheel drive(4WD)
Fork with side shift
Cab with cooling A/C and heater
All lights front, rear, safety, warming light etc.

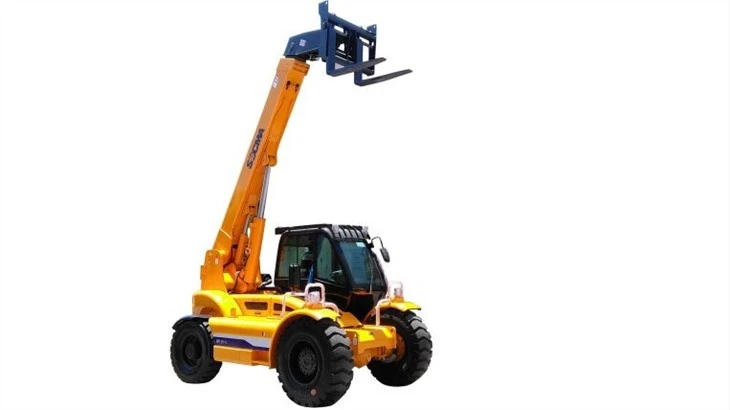

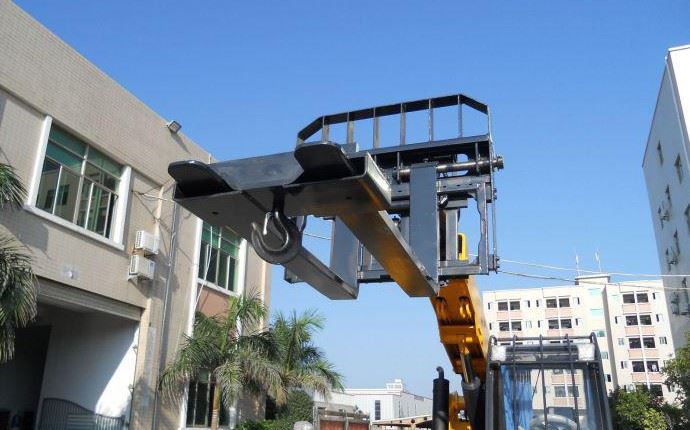

HNT40-4 telescopic lift truck comes with four-wheel drive and rigid suspension. The 4T telehandler provides hydraulic-mechanical transmission, hydraulic power steering, hydraulic braking and rear-wheel steering. The two-stage quadrilateral telescopic boom serves as the working unit. A regular lift truck is equipped with a fork or a boom. In addition, a range of options including such accessories as the bucket, lifting hook, and boom, etc. are available to customers. The telescopic lift truck offers better performance than a general fork truck in terms of the handling height and cross-country ability.
The lift truck is applicable to the unstuffing and casing of pellatized goods in containers, as well as handling, stacking and short-distance transportation of a variety of packaged goods. The telescopic lift truck, suitable for many different working environments, is ideal equipment for loading and unloading, lifting, and transportation in mining, factory, architecture, building material, dock, municipal engineering industries, and more.
Parameter-Standard Configuration
Items | configuration | Unit | Deviation allowed | HNT40-4 | |
Character | Rated load | t | - | 4 | |
Load Centre | mm | - | 500 | ||
Load capacity (max. Forward reach) | kg | - | 1800 | ||
Weight | Operation Weight | kg | ±5% | 9440 | |
Chassis | Tyre no. | - | 2/2 | ||
Tyre, front | - | 2×16/70-24 | |||
Tyre, rear | - | 2×10.00-20-16 | |||
Wheels, numbers front/rear | - | 2/2 | |||
Wheel track | mm | ±1% | 1870 | ||
Wheel track base | mm | ±1% | 2700 | ||
Basic dimension | Angle | Boom frame upward angle | ° | ±1.0 | 60 |
Boom frame downward angle | ° | ±1.0 | -11 | ||
Basic boom max. Lifting height | mm | ±1.5% | 4850 | ||
Max. lifting height | mm | ±1.5% | 7000 | ||
Fork length | mm | ±2% | 1000 | ||
Overall length (with fork) | mm | ±2% | 5730 | ||
Overall width | mm | ±2% | 2390 | ||
Height | mm | ±2% | 2485 | ||
Max. Horizontal reach | mm | ±1.5% | 3350 | ||
Min. Horizontal reach | mm | ±1.5% | 930 | ||
Min. ground clearance | mm | ±1.5% | 400 | ||
Min. turning radius | mm | ≤105% | 6200 | ||
Parameter | Max. Travelling Speed (without load) | km/h | ±10% | 30 | |
Gradeability (without load) | % | - | ≥30 | ||
Engine | Brand | - | Yuchai YC4DK100 | ||
Rated power | KW | - | 60 | ||
Rated rotor speed | min-1 | - | 2000 | ||
Note: The content and performance will be revised and the products will be improve without notice
