SOCMA 12 Tons 12t Forklift HNF-120
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma 12 tons 12t forklift hnf-120 in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.

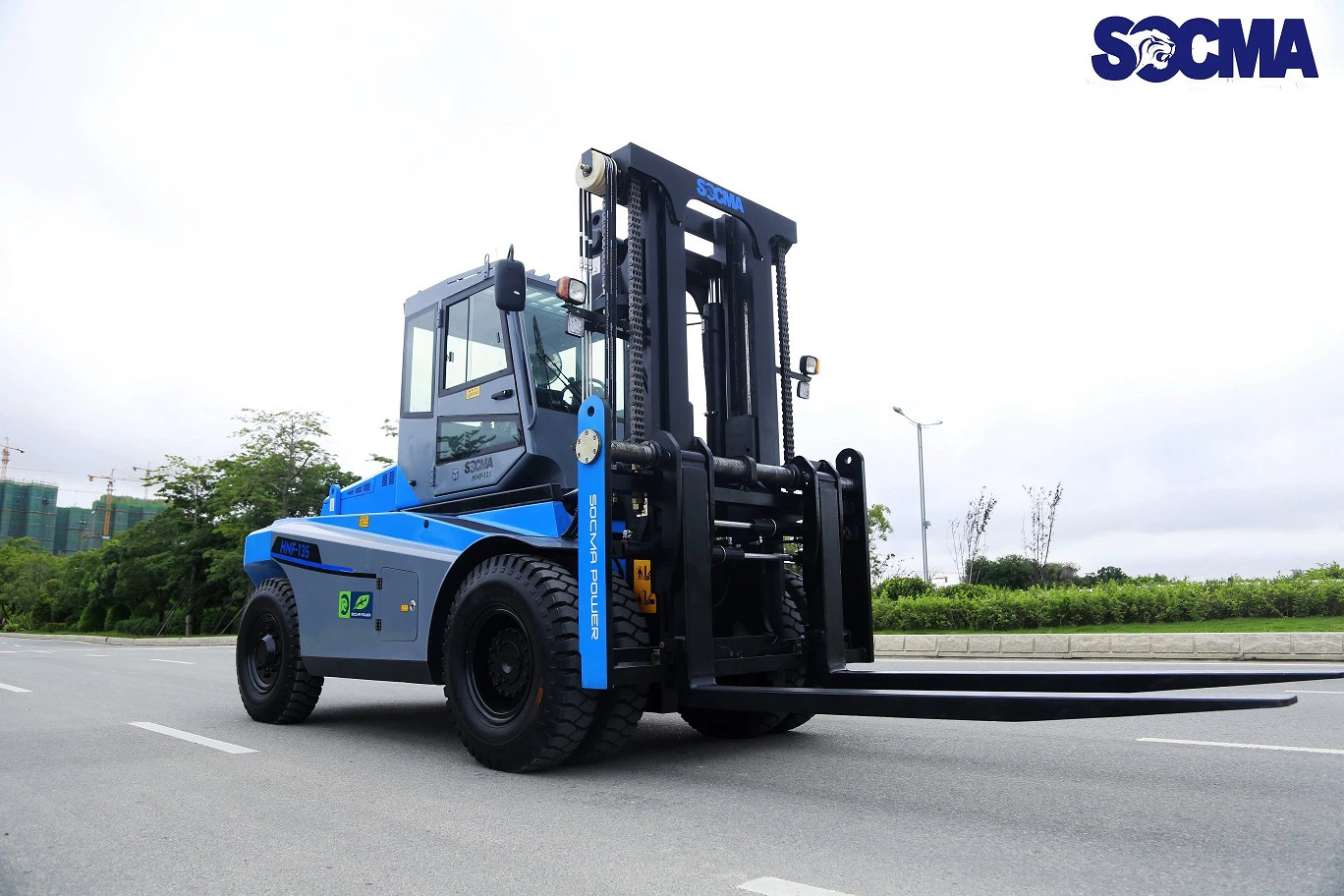

SOCMA 12 tons 12t forklift HNF-120
The SOCMA 12-ton forklift adopts a one-piece frame, which is stronger, more durable, and has a streamlined appearance design.
Joy stick operation, more convenient. A variety of power options, diesel engine, LNG engine, lithium battery.
This forklift is widely used in leasing, factories, and port operations, with low investment and high return.
| Item | Item details | Unit | Design details |
| HNF-120 | |||
| Features | Rated Load | Q（t） | 12 |
| Load center | c（mm） | 600 | |
| Wheelbase | y（mm） | 3000 | |
| Weight | Weight | kg | 18000 |
| Chassis | Tyre Specs.:Front | 10.00-20-16PR | |
| Tyre Specs.:Rear | 10.00-20-16PR | ||
| Tyres Qty,front/rear (X-drive wheels) | 4\2 | ||
| Wheel tread:Front | b10（mm） | 1677 | |
| Wheel tread:Rear | b11（mm） | 2013 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
| Mast height(fork lowering) | h1（mm） | 3100 | |
| Mast lifting height | h3（mm） | 3000 | |
| Max.lifting height | h4（mm） | 4600 | |
| Height to head guard (height to cab) | h6（mm） | 3000 | |
| Overall height(with forks) | l1（mm） | 6055 | |
| Fork front vertical surface to the rear end of the vehicle | l2（mm） | 4855 | |
| Overall width | b1/b2（mm） | 2250 | |
| Fork dimension | s/e（mm） | 1200X180X90 | |
| Fork carriage width | b3（mm） | 2200 | |
| Mast min ground clearance (with load) | m1（mm） | 225 | |
| Wheelbase center min ground clearance(with load) | m2（mm） | 350 | |
| Min.Turning radius | Wa（mm） | 4450 | |
| Travel speed (with load/without load) | km/h | 23/26 | |
| Performance | Max.lifting speed (with load/without load) | mm/s | 220/270 |
| Max.Lowering speed (with load/without load) | mm/s | 450/300 | |
| Traction | N | 9000 | |
| Gradeablity (with load/without load) | ％ | 20/22 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine brand/model | Optional one | Yuchai engine | |
| Engine | YC6J175-T301 6.494L 110KW 2200rpm |
||
| Optional two | Dongfeng Cummins | ||
| QSB4.5-C130 4.5L 97KW 2200rpm |
|||
| Cylinder No. | 4 | ||
| Others | Transmission gears(Front/rear) | 2\2 | |
| Attachments working pressure | bar | 160 | |
| Attachments using oil amount | l/min | 40 |
