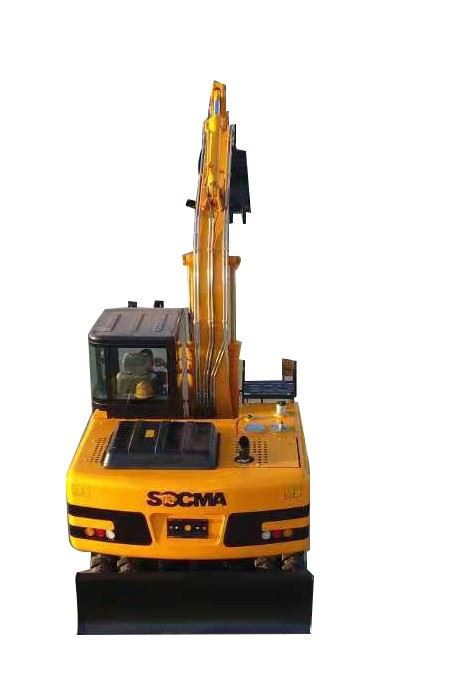

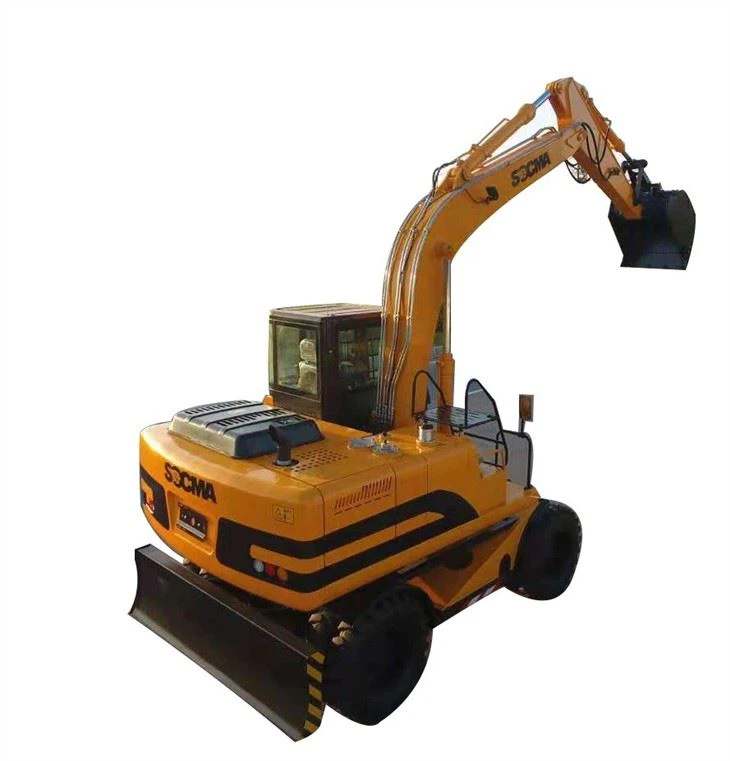

15 Ton Electric Excavator HNE150W-EL Wheel Excavator
15 Ton Electric Excavator HNE150W-EL Wheel Excavator
15 Ton Electric Excavator HNE150W-EL Wheel Excavator
15 Ton Electric Excavator HNE150W-EL Wheel Excavator
15 Ton Electric Excavator HNE150W-EL Wheel Excavator
15 Ton Electric Excavator HNE150W-EL Wheel Excavator
15 Ton Electric Excavator HNE150W-EL Wheel Excavator
15 Ton Electric Excavator HNE150W-EL Wheel Excavator
HNE135W-EE SOCMA13.5 Ton Range-extended Electric Excavator
SOCMA's 13.5-ton extended-range electric excavator uses the fuel consumption of a small car to run a large excavator.
The machine is powered by CATL LFP battery technology, and safety is the brightest spot of all, the sustainable power source and instant response time made it the best option for medium-scale construction projects.
The machine is powered by CATL LFP battery technology, and safety is the brightest spot of all, the sustainable power source and instant response time made it the best option for medium-scale construction projects.
Send Inquiry
Product Introduction
| 项目Project | 性能Configuration | 参数 Parameter |
| 基本参数 Basic parameters | Approximate Weight | 13000(kg) |
| Bucket Volume | 0.2-0.45(m3) | |
| Pressure to the Ground | 45 (KPa) | |
| Travel Speed (Low/High) | 10/26 (km/h) | |
| Rotation Speed | 10 (rpm) | |
| Gradeability | 35 (°) | |
| Max.Arm Digging Force | 63.5 (kN) | |
| Overall length, mm | 7090 | |
| Overall height, mm | 3375 | |
| Overall width, mm | 2380 | |
| 发动机 Engine | Model | YCF 3050-T 420 |
| Power | 36.8 / 2200(kw/rpm) | |
| Displacement | 2.982(L) | |
| Fuel Tank Capacity | 80(L | |
| Emission Standard | StageⅣ | |
| 主泵电机参数 Main Pump Electric Motor Parameters | Type | 永磁同步电机 Permanent magnet synchronous motor |
| Rated power, kW | 74 | |
| Max. power, kW | 120 | |
| Rated torque, Nm | 392 | |
| Max.torque Nm/lasting time(s) | 580/20s | |
| Max.Rotating speed | 3000 | |
| Rated speed | 2000 | |
| 发电机参数 Generator | Rated power, kW | 35 |
| Max.power, KW | 70 | |
| Rated torque, Nm | 186 | |
| Max.torque, Nm/lasting time(s) | 270/20s | |
| Max.Rotating speed | 3000 | |
| Rated ro rating speed | 2000 | |
| 电池参数 Battery Parameter | Battery capacity, kW.h | 16 |
| Rated capacity, Ah | 28 | |
| Rated voltage, Ⅴ | 560 | |
| Cell cycle life(25℃, 100%SOC | 6000次，容量衰减≤30% 6000 times， Capacity fading≤30% | |
| 液压系统 Hydraulic system | Type | 负载敏感系统 Load sensing system |
| Fuel tank capacity, L | 145 | |
| Pressure Mpa | 28 | |
| Flow L/min | 180 | |
| 转向系统 steering system | Steering gear type | 负荷传感全液压转向 Load sensing full hydraulic steering |
| Pressure, Mpa | 16 | |
| 制动方式 Braking method | Service brake | 液压制动 Hydraulic brake |
| Brake pressure, Mpa | 12 | |
| Parking brake | 中央驻车制动 Central parking brake | |
| 标准轮胎(可充气) Standard tire(inflatable) | (front/rear) numbers of wheel | 4 |
| (front/rear) tyre size | 9.00-20 |
