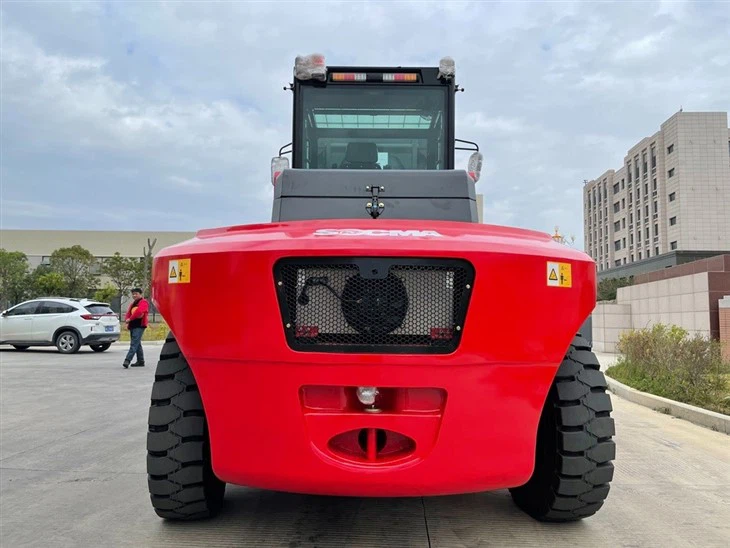

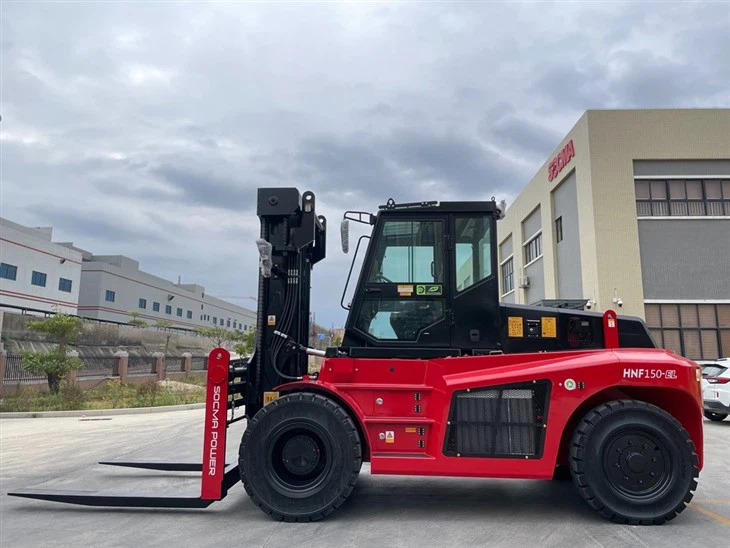

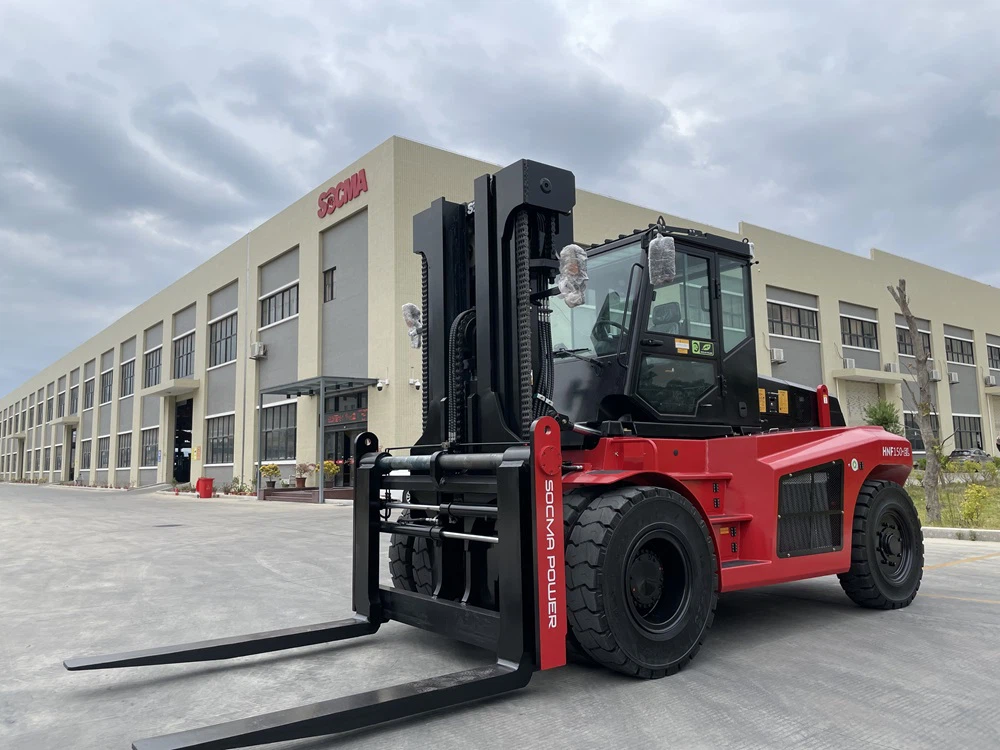

Lithium Battery Forklifts Electric Forklift 15 Ton Heavy Duty Counterbalance Forklifts

Performance

Parameter

Basic parameters

Rated Lifting Capacity

15000kg

Load Center

600mm

Operation Weight

26500kg

Lifting Height

3500mm

Tilt Angle (F/R)

6°/12°

Transmission

Driving speed (Load/Unload)

18 / 22 km/h

Gradeability

15%

Rated Traction

65kN

Driving motor parameters

Motor Type

Permanent magnet synchronous motor

Motor rated power

110kW

Rotation Speed

2600rpm

Main pump motor

Motor Type

Permanent magnet synchronous motor

Motor rated power

83kW

Rotation Speed

3000rpm

Battery parameter

Type of battery

Lithium iron phosphate

Rated storage power of the battery

210kWh

Battery rated capacity

346Ah

Voltage

608.6V

Full charge and discharge cycles

2800C

Service Lifetime

>8 Year

Charging Time

1.0-1.5

Hydraulic system

Pressure

19MPa

Flow

240L/min

Max. lifting speed (load/unload)

250/260mm/s

Max. lowering speed (load/unload)

430/320mm/s

Steering system

Pressure

14MPa

Steering mode

Tap-type cylinder steering

Steering angle

55°

Braking method

Service brake

Disc Brake

Parking brake

Clamp spring brake

Dimensions

Overall Height

3625mm

Overall Width

2750mm

Overall Length

7640mm
