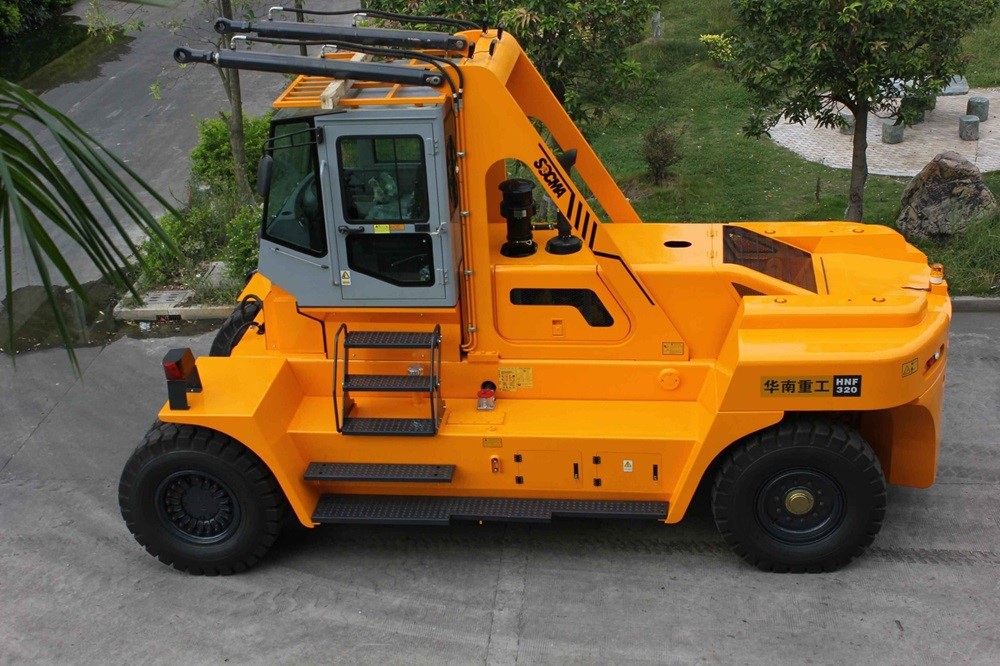

30t Counterbalanced Heavy Duty Forklift With Container Spreader For Port Using
30t Counterbalanced Heavy Duty Forklift With Container Spreader For Port Using
30t Counterbalanced Heavy Duty Forklift With Container Spreader For Port Using
30t Counterbalanced Heavy Duty Forklift With Container Spreader For Port Using
30t Counterbalanced Heavy Duty Forklift With Container Spreader For Port Using
30t Counterbalanced Heavy Duty Forklift With Container Spreader For Port Using
30t Counterbalanced Heavy Duty Forklift With Container Spreader For Port Using
SOCMA Brand High Mast Heavy Duty 30 Ton Forklift
Why Chose Us?
Fujian Southchina Heavy Machinery Manufacture Co.,Ltd dedicates to the R&D of material handling equipment, construction machineries and new energy construction&port machineries such as heavy duty forklift, crane forklift, telehandler, electric excavator, electric wheel loader, extended range electric wheel loader, electric heavy duty forklift, etc. And furnace-tending vehicle&furnace-charging vehicle which is customized for using in the metal smelting industry.
•The mission of SOCMA
Dedicating to provide the most rugged and durable, high cost-effectiveness, high return rate material handling equipment, construction machinery products and service to our client.
•The vision of SOCMA
Let SOCMA become the respectable international brand from China.
•The core value of SOCMA
Customer oriented, staff foremost, insist on self criticism and Introspection, SOCMA is growing up always.
|
Item |
Unit |
HNF-300N |
|
|
Features |
Rated Load |
Q(t) |
30 |
|
Load center |
c(mm) |
1250 |
|
|
Wheelbase |
y(mm) |
4800 |
|
|
Weight |
Machine weight |
kg |
40000 |
|
Chassis |
Tyre Specs.: Front |
14.00-24-32PR |
|
|
Tyre Specs.:Rear |
14.00-24-32PR |
||
|
Tyres Qty,front/rear(X-drive wheels) |
4\2 |
||
|
Wheel tread:Front |
b10(mm) |
2420 |
|
|
Wheel tread:Rear |
b11(mm) |
2390 |
|
|
Dimension |
Mast/carriage tilt angle(front/rear) |
Degree(°) |
6\12 |
|
Mast height(fork lowering) |
h1(mm) |
3950 |
|
|
Max. lifting height |
h3(mm) |
3500 |
|
|
Mast height(fork raised) |
h4(mm) |
5700 |
|
|
Height to head guard(height to cab) |
h6(mm) |
3800 |
|
|
Overall height(with forks) |
l1(mm) |
9590 |
|
|
Fork front vertical surface to the rear end of the vehicle |
l2(mm) |
7150 |
|
|
Overall width |
b1/b2(mm) |
3200 |
|
|
Fork dimension |
s/e(mm) |
2440X320X110 |
|
|
Fork carriage width |
b3(mm) |
3100 |
|
|
Mast min ground clearance(with load) |
m1(mm) |
350 |
|
|
Wheelbase center min ground clearance(with load) |
m2(mm) |
410 |
|
|
Min.Turning radius |
Wa(mm) |
7260 |
|
|
Performance |
Travel speed(with load/without load) |
km/h |
24/28 |
|
Max.lifting speed(with load/without load) |
mm/s |
260/280 |
|
|
Max.Lowering speed(with load/without load) |
mm/s |
250/180 |
|
|
Traction |
kN |
220 |
|
|
Gradeablity(with load/without load) |
％ |
20/21 |
|
|
Driving brake |
Wet braking |
||
|
Engine |
Engine brand/model |
GuangXi Cummins |
|
|
QSL9.3-C240 |
|||
|
Cylinder No. |
6 |
||
|
Others |
Transmission gears(Front/rear) |
3\3 |
|
|
Attachments working pressure |
bar |
180 |
|
|
Attachments using oil amount |
l/min |
80 |
|
