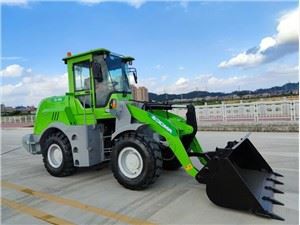

HNL35-EL SOCMA 3.5 Ton Electric Wheel Loader

HNL35-EL SOCMA 3.5 Ton Electric Wheel Loader
HNL35-EL SOCMA 3.5 Ton Electric Wheel Loader
HNL35-EL SOCMA 3.5 Ton Electric Wheel Loader
HNL35-EL SOCMA 3.5 Ton Electric Wheel Loader
HNL35-EL SOCMA 3.5 Ton Electric Wheel Loader
HNL35-EL SOCMA 3.5 Ton Electric Wheel Loader
HNL35-EL SOCMA 3.5 Ton Electric Wheel Loader

HNL35-EL SOCMA 3.5 Ton Electric Wheel Loader

Electric wheel loaders are a type of cost construction equipment, that move, and transports heavy materials such as dirt, sand, gravel, and aggregates. They are powered by electricity, making them a more environmentally friendly and cost-effective alternative to diesel-powered loaders.
In addition to their environmental benefits, SOCMA Electric Wheel Loaders offer several operational advantages. They are typically quieter and more energy-efficient than diesel loaders, which can be a significant advantage in residential or noise-sensitive areas. They also require less maintenance, as they do not have engines that need to be serviced and do not produce emissions.
If you're considering a rethinking handling solution, be sure to take please a closer look at SOCMA Electric Wheel Loader Solutions. They are more sustainable and can also help you save on operational costs and maintenance expenses in the long run.

Send Inquiry

Product Introduction

In addition to their environmental benefits, SOCMA Electric Wheel Loaders offer several operational advantages. They are typically quieter and more energy-efficient than diesel loaders, which can be a significant advantage in residential or noise-sensitive areas. They also require less maintenance, as they do not have engines that need to be serviced and do not produce emissions.

If you're considering a rethinking handling solution, be sure to take please a closer look at SOCMA Electric Wheel Loader Solutions. They are more sustainable and can also help you save on operational costs and maintenance expenses in the long run.

序号 S/N	项目 Item		单位 Unit	标配 Standard
1	额定斗容量 Rated bucket capacity		m³	1.7
2	额定载重量 Rated load		kg	3500
3	整机工作质量 Total operating mass			标配12400 Standard: 12,400	快换架12500 Quicker couple bracket: 12,500
4	卸载高度 Unloading height		mm	标配3300 Standard: 3300	快换架3085 Quicker couple bracket: 3,085
5	卸载距离 Unloading distance			标配1025 Standard: 1025	快换架1055 Quicker couple bracket: 1,055
6	轴距 Wheel base			2880
7	轮距 Wheel gauge			1850
8	最小离地间隙 Min. Ground clearance			380
9	车体转角 Body angle	左/右 Left/right	（ °）	±35
10	整机长度（铲斗平放地面） Overall length (bucket placed on ground horizontally)			标配7680 Standard: 7680	快换架7860 Quicker couple bracket: 7,860
11	整机宽度（铲斗） Overall width (bucket)			2425
12	整机高度 Overall height			3320
13	离去角 Departure Angle			28
14	后桥横向摆动角 Lateral swing angle of rear axle			±9°
15	转弯直径 Turning diameter		mm	标配6350 Standard: 6,350	快换架6355 Quicker couple bracket: 6,355
17	最大牵引力 Maximum tractive power		kN	≥100
18	最大爬坡能力 Maximum gradeability		（ %）	57
19	提升能力 Lifting capacity		kg	3500
20	倾翻载荷 Tipping load			7000
21	最大挖起力 Max. breakout force		kN	100
22	工作装置动作时间 Operating time of attachment	提升时间 Lifting time	s	6
		下降时间 Lowering time		4.5
		卸载时间 Unloading time		1.5
23	行驶速度 Running speed	前进档 Ⅰ/Ⅱ Forward gear I/II	km/h	12/32
		后退档Ⅰ Reverse gear Ⅰ		24
