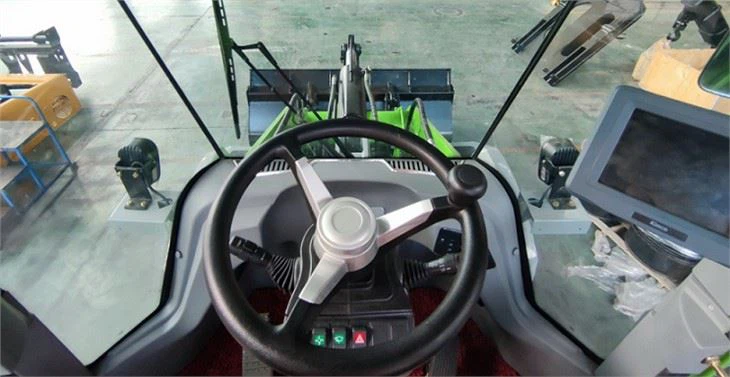

Electric Front End Loader 1.8 Ton
Safety and occupationalHealth
Excellent controllability
Low energy consumption and long battery life
SOCMA 1.8t electric wheel loader
How many motors on the electric machine and what type?
Generally 2 main motors (drive motor, hydraulic motor), 2 auxiliary motors (used to provide power for air conditioners, brakes, etc.)
For wheeled walking electric construction machinery such as loaders and forklifts, there are generally two or more main drive motors, and the general walking system and hydraulic system are driven independently. Those with gravity potential energy recovery function need to increase the motor for electrical energy recovery, which is generally efficient Permanent magnet synchronous motors. Crawler type electric construction machinery such as crawler excavators are generally a main drive motor. In addition to the main drive motor, there are also auxiliary drive low-power motors for pilot system oil supply, gearbox oil supply and steering system oil supply, generally permanent magnet synchronous motors or three-phase asynchronous motors.
Main Technical Paramaters of bettery electrical front loader:
Items | Specifications | |
Basic Parameter | Electric Consumption Rate | 10-15 degree/h (variance with working condition） |
Loading Rate | 1800kg | |
Bucket Capacity | 1m3 | |
Up digging Force | 47KN | |
Operating Weight | 5200kg | |
Max.Dumping Height | 2450mm | |
Dumping Distance 45°Angle | 850mm | |
Transmission System | Transmission | Mechanical Transmission |
Transmission Gear | Forward 2 /Reverse 1 | |
Max. Speed of Forward I | 10km/h | |
Max. Speed of Forward II | 26km/h | |
Max. Speed of Reverse I | 10km/h | |
Grade ability | 57% | |
Traction | 57kN | |
Parameter of Travel Motor | Motor Type | Permanent Magnet Synchronous Motor |
Motor Rated | 75kW | |
Motor operating efficiency range | 86%-98% | |
Parameter of Main Pump Motor | Motor Type | Permanent Magnet Synchronous Motor |
Motor Rated | 30kW | |
Motor operating efficiency range | 86%-98% | |
Battery | Type | LiFePO |
Battery rated storage capacity | 109.3Kwh | |
Rated Capacity of Battery | 202AH | |
Rated Voltage | 541V | |
Rounds of full charge and discharge cycles
| 4000 up 次以上 | |
Theoretical Service Life | >8年over 8 years | |
Charge time | 0.6-1.5h（根据充电桩而定 Variance with the Charger） | |
Hydraulic System | Pressure | 20 MPa |
Flow Rate | 150 L/min | |
Raising Time | 5 s | |
Total cycle time | 10 s | |
Steering System | Steering gear Model | BZZ5-E315C |
Pressure | 16 MPa | |
Steering Type | Articulated frame steering | |
Steering Angle | 30° | |
Brake Mode | Travel brake | Clamp disc brake |
Brake air pressure | 0.5-0.7 MPa | |
Parking Brake | Air push oil disc brake | |
Dimension | Overall Height | 2800mm |
Overall Width | 1920mm | |
Overall Length | 6000mm | |
Wheel base | 2240mm | |
Wheel Tread | 1482mm | |
Bucket with | 2000mm | |
Ground Clearance | 290mm | |
Turning Radius( External) | ≥4970mm | |
Driver position | Central | |
Driver seat | Sited | |
Standard Tires (Pneumatically) | Nos. of Wheels | 2/2 |
Driving Wheel | 4 wheels Driving | |
Size of Tire | 16/70-20PR | |
