Socma 25 Ton Heavy Lift Forklift Truck Engine Diesel Cummins New Style Work In Port And Depot
Engine: Famous Brand in China ,low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection.
Steering system: Equipped transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.

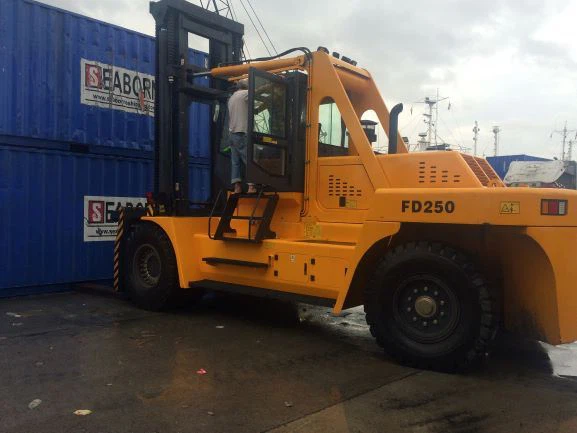

Heavy Duty 25 Ton Diesel Forklift Truck Color Red Yellow work in Depot and Port
Engine: low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection.
Steering system: Equipped transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.
Braking system: use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Cooling system: equipped independent transmission oil and hydraulic oil cooling, increasing system stability.
Fork: standard with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: Full cab with AC, heater and rear view display.
PIC:John Chen
WA:008618106938692
Email:john@socmachinery.com
| Technical Parameter | |||
| Design details | |||
| Item | HNF-250 | ||
| Features | Rated Load | Q（t） | 25 |
| Load center | c（mm） | 1250 | |
| Wheelbase | y（mm） | 4400 | |
| Weight | Weight | kg | 35000 |
| Chassis | Tyre Specs.:Front | 14.00-24-28PR | |
| Tyre Specs.:Rear | 14.00-24-28PR | ||
| Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
| Wheel tread:Front | b10（mm） | 2200 | |
| Wheel tread:Rear | b11（mm） | 2390 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
| Mast height(fork lowering) | h1（mm） | 3860 | |
| Mast lifting height | h3（mm） | 3500 | |
| Max.lifting height | h4（mm） | 5610 | |
| Height to head guard(height to cab) | h6（mm） | 3510 | |
| Overall Length(with forks) | l1（mm） | 9190 | |
| Fork front vertical surface to the rear end of the vehicle | l2（mm） | 6745 | |
| Overall width | b1/b2（mm） | 3050 | |
| Fork Dimension | s/e（mm） | 2440X300X110 | |
| Fork carriage width | b3（mm） | 3050 | |
| Mast min ground clearance(with load) | m1（mm） | 300 | |
| Wheelbase center min ground clearance(with load) | m2（mm） | 420 | |
| Min.Turning radius | Wa（mm） | 6700 | |
| Travel speed(with load/without load) | km/h | 25/29 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 260/270 |
| Max.Lowering speed(with load/without load) | mm/s | 315/260 | |
| Traction | kN | 170 | |
| Grade ablity(with load/without load) | ％ | 20/21 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine | Engine brand/model | Optional one | Weichai engine |
| WP10G220E343 9.726L 162KW 2000rpm | |||
| Optional two | Dongfeng Cummins | ||
| QSC8.3-C240 8.3L 179KW 2200rpm | |||
| Cylinder No. | 6 | ||
| Others | Transmission gears(Front/rear) | 2\1 | |
| Attachments working pressure | Mpa | 18 | |
| Attachments using oil amount | l/min | 80 | |
Socma forklift related information and news share:
The development trend of forklift attachments: It is predicted that there are about 250 forklift production companies in the world, and the annual output value remains at the mercy of 500,000 units. Because of the increased competition, compared with the 1980s, my country's forklift market is infinite. The international forklift industry has shown an abnormal phenomenon of increased sales and reduced profits. On the one hand, in order to reduce costs, forklift giants are embarking on the construction of factories in our country. For example, there are Xiamen Linde, Anhui TCM, Beijing Halla, Hunan Destar, Yantai Dayu Heavy Industry, Shanghai Hyster, etc. in China. These companies brought products and skills that were internationally leading in the mid-1990s to the country, which promoted the rapid development of my country's forklift skills, and together they also caused a great impact on domestic markets. On the other hand, with the development of the shopping mall economy, the orientation and effect of logistics skills in economic development have become more and more significant, and the penetration rate of forklifts has become higher and higher. It has entered all walks of life in the national economy from a single port terminal in the past. . The current inventory of forklift trucks in my country is about 180,000 units, and the actual annual potential demand is about 100,000 units, while the actual annual sales volume is only about 30,000 units. It can be seen that my country's forklift market is endless.
The field of forklift attachments: Forklift working equipment shows that the main parameter of forklift function is the extra lifting weight under the standard lifting height and standard load base distance. The load base distance is the distance from the center of gravity of the goods to the front wall of the vertical section of the fork. Forklift attachments are all kinds of work equipment equipped to expand the scale of forklift work. There are about 30 kinds of widely used attachments. Attachments are easy to change. String rods can transfer hot steel coils, tires and cement pipe sections. Container spreaders are used to transfer large containers. The barrel clamp can transfer oil barrels and paper rolls. Side clamps can transfer textile bales. The side shift fork makes it easy to align the forklift with the goods when working in a narrow place. The tipping fork can hold logs. The boom can lift all kinds of goods. Casting clamps can hold forgings and turn them over. The rotating clip can be reversed 360° to adjust the orientation of the goods for easy storage.
Nowadays, following the gradual implementation of our government's policy of stimulating domestic demand, and the recovery of the global economy, our forklift industry is facing a new round of business opportunities. Both foreign brands and local companies are full of waiting. In this context, some representative domestic and foreign forklift companies have analyzed and reported on their product and technical advantages, operation and management models, shopping mall strategies and development planning, etc., hoping to give more forklift companies and logistics Equipping the company with enlightenment will help the company find its own way to success.
