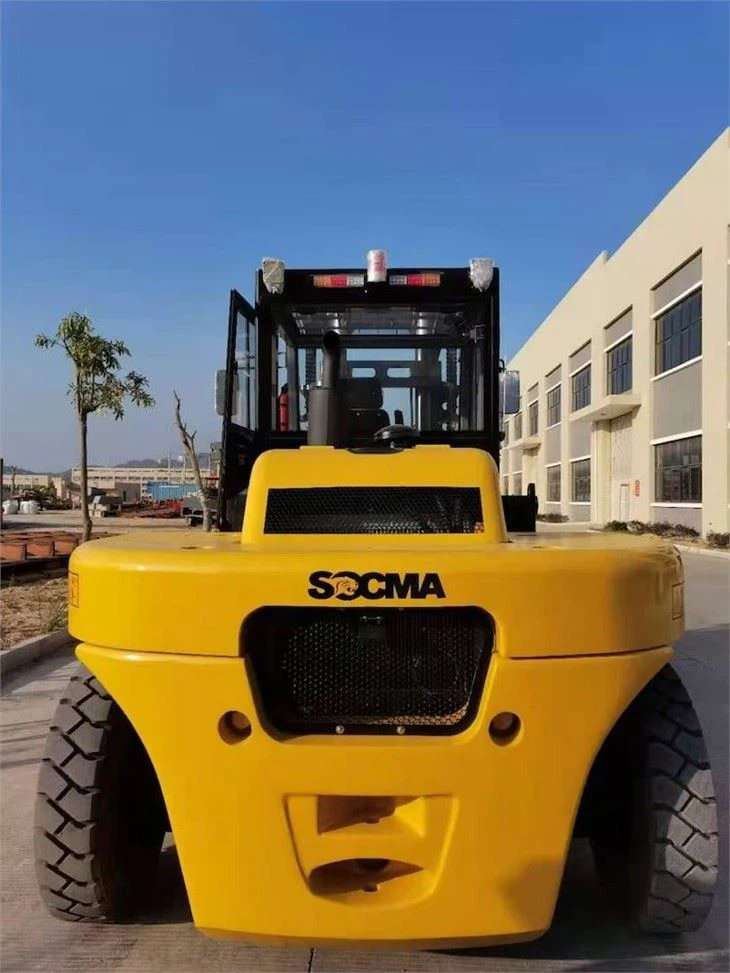

10 TON FORKLIFT ENGINE DIESEL CUMMINS
video

10 TON FORKLIFT ENGINE DIESEL CUMMINS

CAPACITY;10TON MAST STAGE;2 LIFT HEIGHT;3METER POWER;82KW
Send Inquiry
Product Introduction

1

PIC:John

Email:John@socmachinery.com

Whatsapp:+8618106938692





PRODUCT PARAMETER:


ModelUNITFD100T
SpecificationsPower Unit
Diesel
Operator Type

Transimission Box Type

Rated Capacitykg10000
Load Centermm600
Max.Lifting Heightmm3000
Tire Type

Tire Number Front
4
Rear2
Tire Size Front
9.00×20-14PR
Rear
9.00×20-14PR
PerformanceLifting SpeedLoadedmm/s380
Unloaded410
Lowering Speed Loadedmm/s450
Unloaded400
Travelling Speed Loadedkm/h26
Unloaded30
Max.Gradeability (Loaded)%20
Max.Drawbar Pull (Loaded)kg5850
Mast Tilting Angle (Fwd/Bwd)deg6/12
Free Lifting Heightmm180
Turning Radiusmm3900
DimensionsOverall Length (with fork)mm5480
Overall Widthmm2160
Overhead Guard Heightmm2560
Fork Size (LxWxT)mm1220x175x80
Mast Height (Fork lowered)mm2850
Battery (Voltage/Capacity)V/Ah2×12/90
Truck Weightkg12500
Fuel Tank CapacityL143
EngineBrand
ISUZUCHAOCHAI
Model
6BG16102
Rated Powerkw/rpm82.3/200080.8/250
Rated torquen-m/rpm418/1500354/1650
Number Of Cylinder
66
Displacement
6.495.78

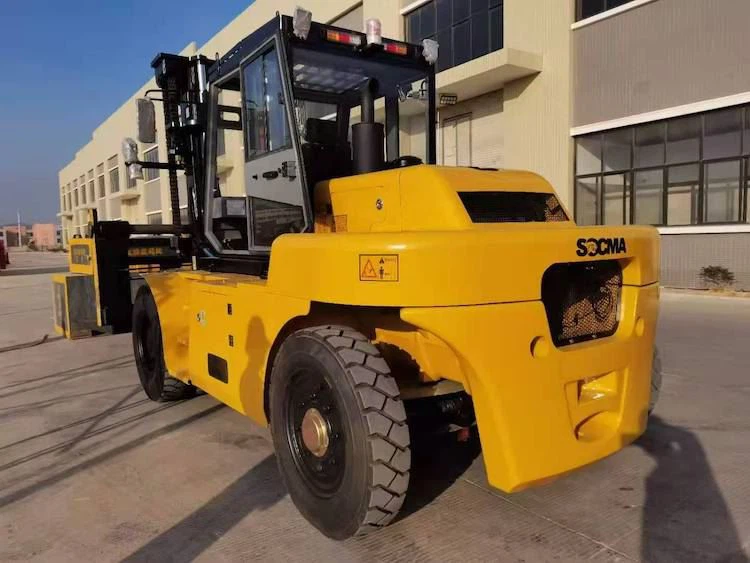

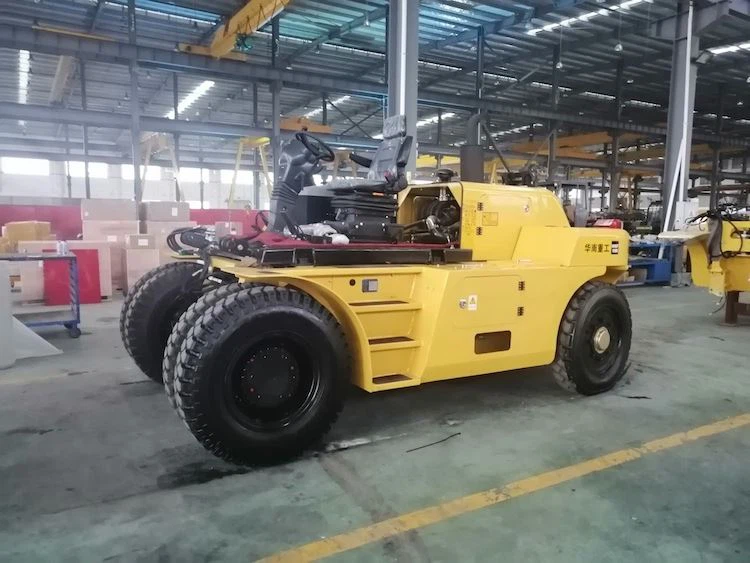

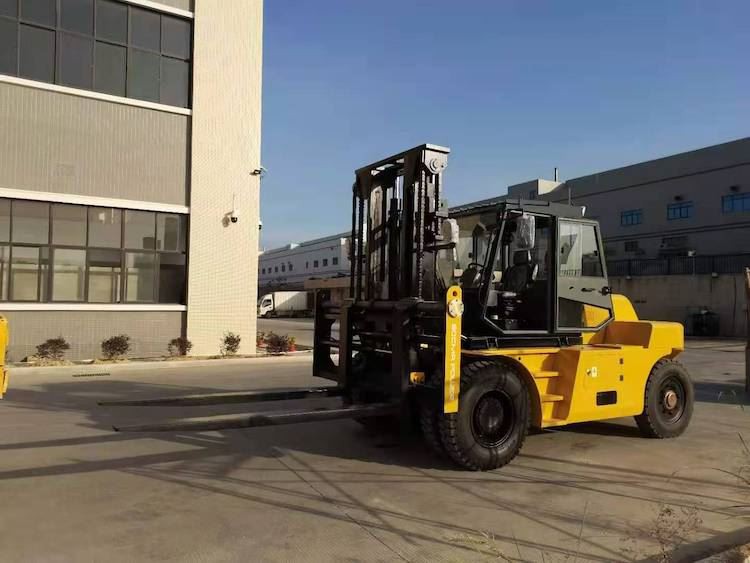

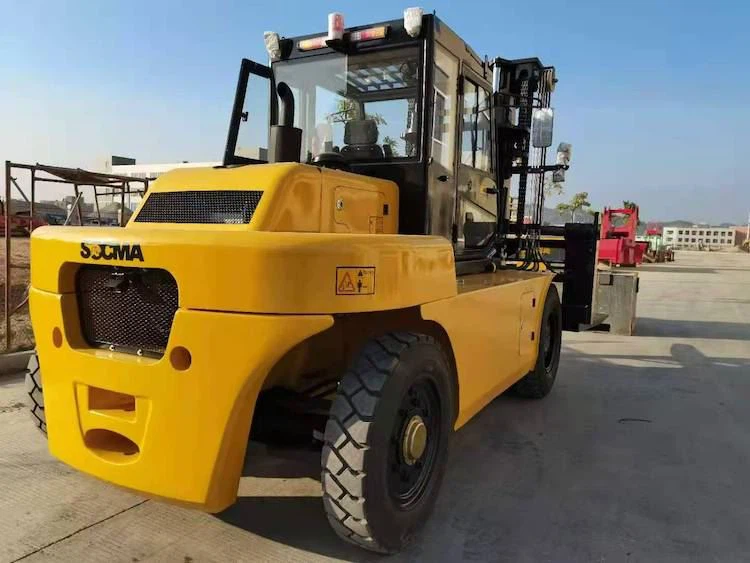

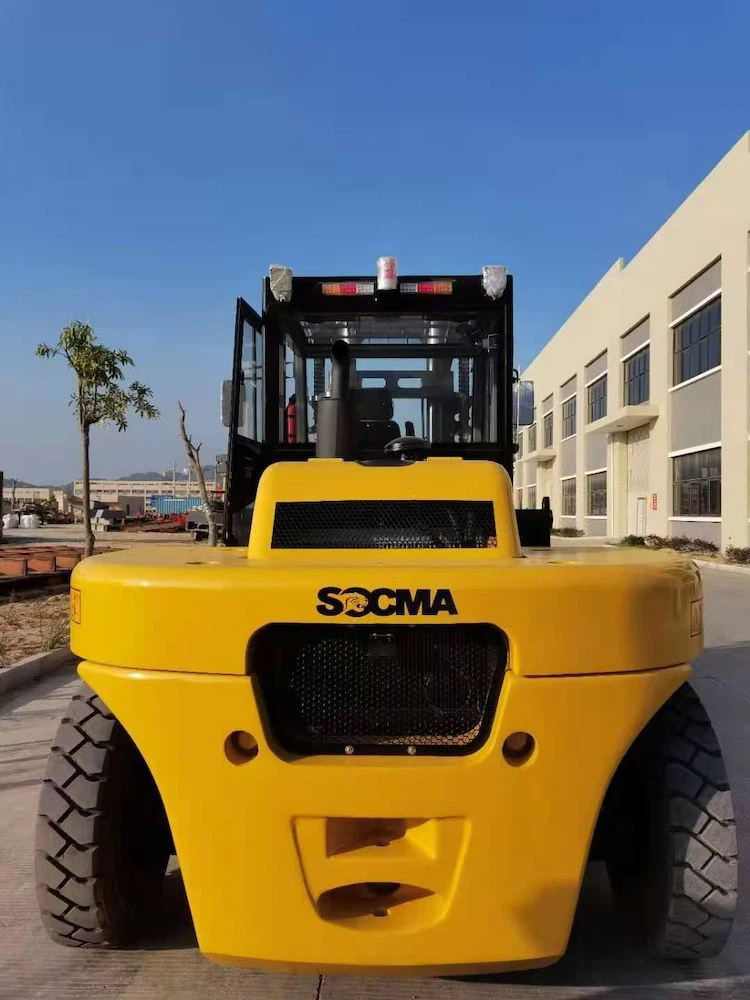

Products Photos:


Socma Forklift Related News:

In 2020, global forklift sales will achieve steady growth, with China accounting for 39.18%. Hangcha Group and Anhui Heli's forklift operations are improving

Forklifts are industrial handling vehicles, which refer to various wheeled handling vehicles for loading and unloading, stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It is often used for the transportation of large objects in storage, and is usually driven by fuel engines or batteries.

In 2020, global forklift sales will achieve steady growth. With the economic development of emerging market countries, the world's forklift industry has gradually shown a trend of shifting to Asia and other emerging market countries in the world. Global forklift sales will increase from 942,000 in 2011 to 1.583 million in 2020.

In 2018-2020, the sales of forklift trucks in Asia are increasing. In 2018, the sales of forklifts in Asia was 630,310; the sales of forklifts in Asia were 647,229, a year-on-year increase of 2.68%; in 2020, the sales of forklifts in Asia was 804,831, a year-on-year increase of 24.35%.

The "Analysis of China's Forklift Industry Competition Pattern and Investment Prospect Planning Report from 2021-2027" released by Zhiyan Consulting shows that the high growth of the forklift industry basically matches the rapid development of domestic manufacturing, driven by the high prosperity of the manufacturing industry. The demand for forklifts continues to grow in the long-term. In the long-term period from 2008 to 2020, the global share of domestic forklift companies' sales has increased from 18% to 39.18%, and both production and sales are at the highest level in the world. The sales of Chinese forklift companies accounted for 77.04% of the market share in Asia.

At present, domestic forklift trucks have gradually changed from being dominated by new demand in the early stages of development to a market space dominated by artificial replacement and product upgrades driven by the demand for environmental protection, energy saving and intelligence. With the upgrading of the domestic industry, the improvement of the quality of workers and the corresponding increase in labor costs, the domestic replacement of basic manual handlers has become the driving force for the high growth of the forklift industry in the future in the medium and long cycle.


    From the perspective of the concentration of the forklift industry, the CR10 of China's forklift industry in 2020 is 91.1%, an increase of 7.9 percentage points from 2019, and the industry concentration has further increased. Among them, Anhui Heli and Hangcha Group are firmly ranked first and second in the forklift industry, with a combined market share of over 50% in 2020, showing a "double leading" pattern.

From the perspective of the concentration of the electric forklift industry, the concentration of China's electric forklift industry will further increase in 2020, and the CR6 of the electric forklift industry will increase from 72.5% in 2019 to 78.0%. Zhejiang Zhongli, Hangcha Group, Nuoli, Anhui Heli, China Longgong, and BYD accounted for 16.3%, 15.9%, 18.3%, 15.1%, 7.6%, and 4.9%, respectively. Nuoli shares and Zhejiang Zhongli are the main domestic manufacturers of electric pedestrian storage forklifts (class III vehicles), and their market share in 2020 is 34.6%.

Take the forklift manufacturers Hangcha Group and Anhui Heli Enterprise as examples. Anhui Heli and Hangcha Group are firmly ranked first and second in the forklift industry. Hangcha Group has nearly 50 years of experience in forklift R&D and manufacturing and is currently the largest professional in China. One of the forklift R&D and manufacturing bases. In 2020, Anhui Heli will speed up the launch of new products such as lithium batteries, smart logistics and heavy-duty vehicles, and sales of lithium-ion counterbalanced forklifts have increased significantly year-on-year.


    In 2020, the production volume of Hangcha Group's forklifts was 208,778, and Anhui Heli's forklift production was 229,005. The growth rates of Hangcha Group and Anhui Heli's forklift production were both close to 50%.

From 2016 to 2020, the sales volume of Hangcha Group and Anhui Heli's forklift trucks both increased year by year. In 2020, the sales volume of Hangcha Group's forklift trucks was 207,189 units, an increase of 48.59% year-on-year; Anhui Heli's forklift truck sales volume was 220,678 units, an increase of 44.82% year-on-year.
