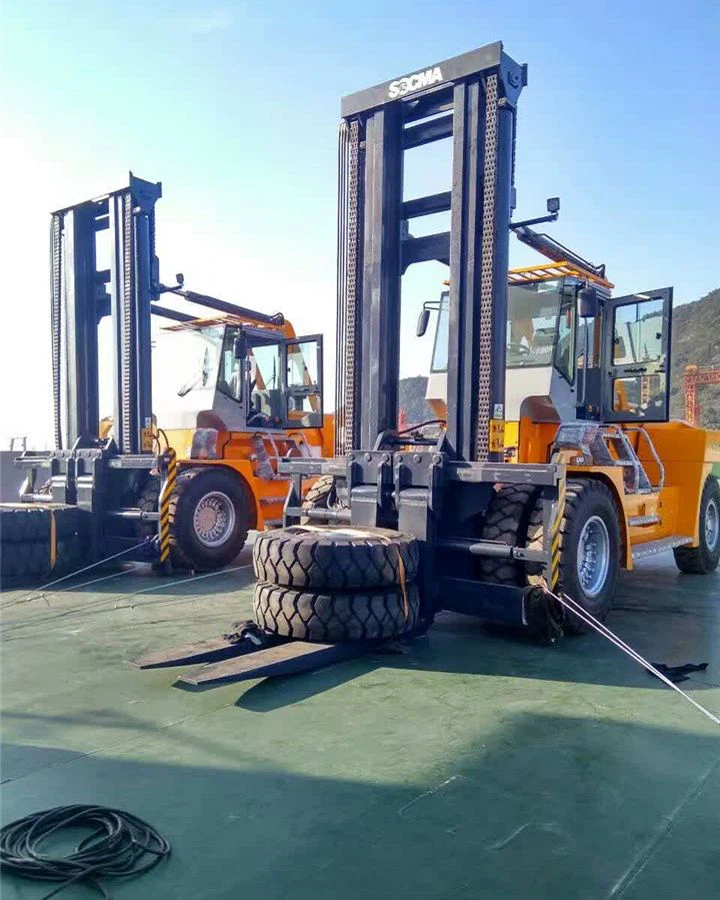

28 Ton Forklift
Load center:1250 mm
Operating weight: 39,000 kgs
Wheel base: 4,800 mm
1, adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation. 2, use Hangchi, Sanchi...
HNF-280
Rated load: 28,000 kgs
Load center:1250 mm
Operating weight: 39,000 kgs
Wheel base: 4,800 mm
1, adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, satisfies the requirement of high efficiency operation.
2, use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition, the transmission system more reliable.
3, with massive deepen heavy forklift tire, rear steering axle can swing around the center, have good traction performance and passing performance.
4, domestication parts, standardization, cost-effective, parts commonality good easy procurement, daily maintenance is simple and quick.
How to maintain 28 Ton Forklift
The spring of new year, with the temperature rise and the progress of the project started, forklifts will be a heavy load period after experiencing the winter. In this period, it is necessary to check and maintenance forklifts.
Body paint
It is necessary to clean the body regularly after a dry, dusty, snowmelt and long-term use. Alternating cold and warm, the body of the paint is prone to change, if you have some bumps in your use, it is easy to be painted. In addition, more rain in the spring, the rain of acidic substances will damage the forklifts’ paint and body. In the use of forklifts, the body should be checked regularly whether the paint, body be damaged. If this happened, please fill the paint as soon as possible to prevent the depth of corrosion, the damage to the vehicle structure and the effect of performance.
Chassis
After a long period of winter after use, you should carefully check whether the forklift chassis be damaged. If it is damaged, it should be repairtimely, and do the good job for anti-rust seal work.
Wipers
If your forklift products have a closed cab and equipped with wipers, after summer, autumn and winter triples, sun exposure, rain and snow erosion, wind and frost low temperature, easy to make the wipers of the tape aging, to cause the wiper to fail to properly clean the rain on the windshield. Before the spring comes, we have to check the wiper as soon as possible, first check whether the wiper can work properly, then check whether the wiper tape need to be replaced. If the wiper can not work properly, it is necessary to replace the wiper assembly. If you find the wiper can not completely clean up rainwater, it is necessary to replace the wiper bar. In addition, the doors, windows of the sealing tape should also be cleaned and maintained.
Parameter of 28 Ton Forklift
Item | Item details | Unit | |
HNF-280 | |||
Features | Rated Load | Q（t） | 28 |
Load center | c（mm） | 1250 | |
Wheelbase | y（mm） | 4800 | |
Weight | Weight | kg | 40000 |
Chassis | Tyre Specs.:Front | 14.00-24-32PR | |
Tyre Specs.:Rear | 14.00-24-32PR | ||
Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
Wheel tread:Front | b10（mm） | 2420 | |
Wheel tread:Rear | b11（mm） | 2390 | |
Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
Mast height(fork lowering) | h1（mm） | 3950 | |
Mast lifting height | h3（mm） | 3500 | |
Max.lifting height | h4（mm） | 5700 | |
Height to head guard(height to cab) | h6（mm） | 3800 | |
Overall height(with forks) | l1（mm） | 9590 | |
Fork front vertical surface to the rear end of the vehicle | l2（mm） | 7150 | |
Overall width | b1/b2（mm） | 3200 | |
Fork dimension | s/e（mm） | 2440X320X110 | |
Fork carriage width | b3（mm） | 3100 | |
Mast min ground clearance (with load) | m1（mm） | 350 | |
Wheelbase center min ground clearance(with load) | m2（mm） | 410 | |
Min.Turning radius | Wa（mm） | 7260 | |
Travel speed(with load/without load) | km/h | 24/28 | |
Performance | Max.lifting speed(with load/without load) | mm/s | 260/280 |
Max.Lowering speed(with load/without load) | mm/s | 250/180 | |
Traction | N | 22000 | |
Gradeablity(with load/without load) | ％ | 20/21 | |
Driving brake | Hydraulic clamp disc | ||
Engine brand/model | Optional one | Weichai engine | |
Engine | WO10G240E341 | ||
Optional two | Dongfeng Cummins | ||
QSC8.3-C260 | |||
Cylinder No. | 6 | ||
Others | Transmission gears(Front/rear) | 2\1 | |
Attachments working pressure | bar | 180 | |
Attachments using oil amount | l/min | 80 |
