SOCMA Pure Lithium Electric Wheel Loader Capacity 5t
video

SOCMA Pure Lithium Electric Wheel Loader Capacity 5t

Pure electric Wheel loader replace the traditional type of dieselengineas the main power source ,by usingelectric motor and lithium battery as the main power source, "zero emission, zero pollution, low noise, low energy consumption", to meet the requirement ofenvironmental protection ofstate policy ofnational energy conservation and emission reduction.
Send Inquiry
Product Introduction

Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma pure lithium electric wheel loader capacity 5t in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.

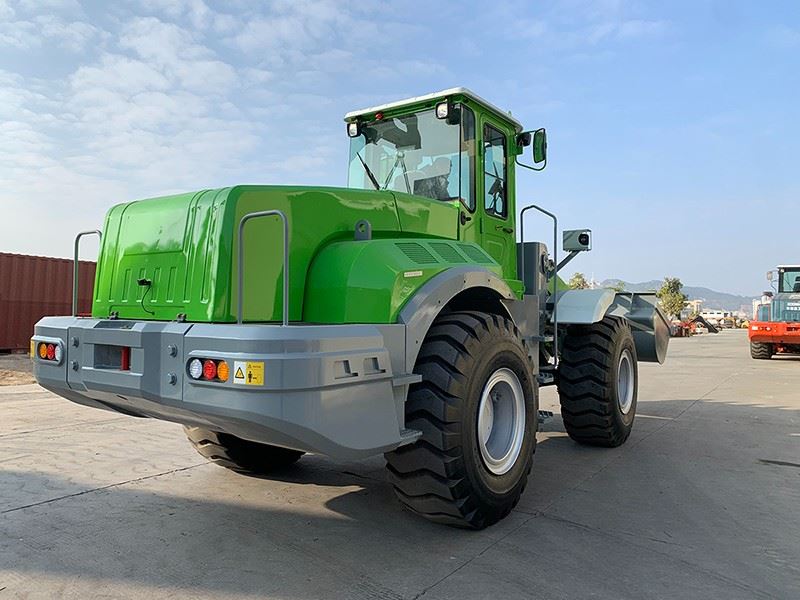

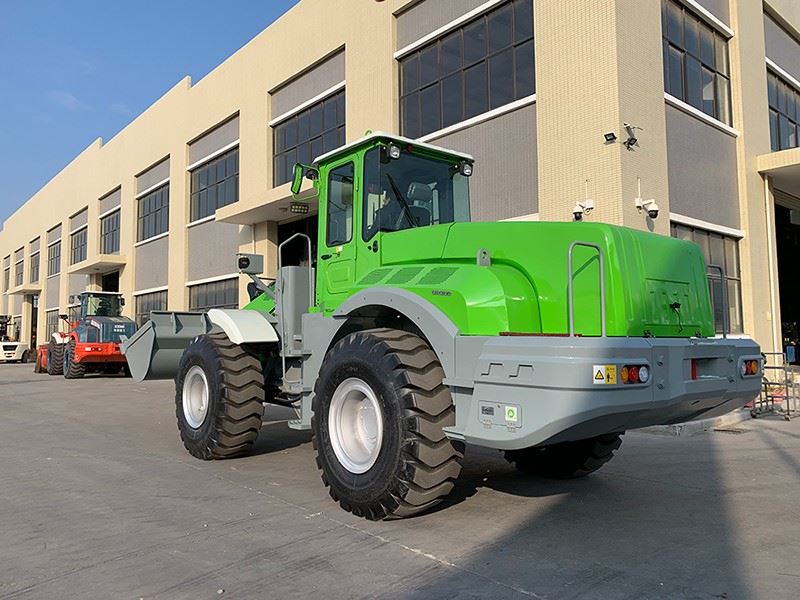

SOCMA Pure Lithium Electric Wheel Loader Capacity 5t



SOCMA Electric Wheel Loaderis widely used inconstruction of high way,railway,buildingconstruction, hydropower, port, mining and other construction projects of earth and stone construction machinery, mainly used for shoveling soil, sand, lime, coal and other loose materials, butalso for ore, hard soil and other light shoveling operations.With different attachment devices can also be used for earth-moving, lifting and loading and unloading of other materials such as wood.
Pure electric Wheel loader replace the traditional type of diesel engine as the main power source ,by electric motor and lithium battery as the main power source, "zero emission, zero pollution, low noise, low energy consumption", to meet the requirement of environmental protection of state policy of national energy conservation and emission reduction.



Loader is a kind of earthwork construction machinery widely used in highway, railway, construction, hydropower, port, mine and other construction projects. It is mainly used for shoveling soil, sand, lime, coal and other bulk materials, but also for ore, hard soil for light shovel operation.
The replacement of different auxiliary work devices can also be used for bulldozing, lifting and other materials such as wood loading and unloading operations.
In the road, especially in the construction of high grade highway, the loader is used for filling and digging of roadbed engineering, aggregate and charging of asphalt mixture and cement concrete yard, etc.
In addition, it can also be used to push and transport soil, scrape the ground and pull other machinery.
Because the loader has the advantages of fast operation speed, high efficiency, good mobility, light operation, etc., it has become one of the main types of earthwork construction in engineering construction.

Performance Parameter

Basic Parameter

Electric Consumption Rate

35-40( variance   with working condition)

Loading Rate

5000kg

Bucket Capacity

2.7-5m3

Up digging Force

>170KN

Operating Weight

17000kg

Max. Dumping Height

3062/3362mm

Dumping  Distance 45°Angle

1276/1230mm

Transmission System

Transmission

Mechanical Transmission

Transmission Gear

Front 4 /Rear 2

Max. Speed of Forward low speed I

7km/h

Max. Speed of Forward low speed II

14km/h

Max. Speed of Forward high speed I

28km/h

Max. Speed of Forward high speedlI

36km/h

Max. Speed of Rear low speed I

7km/h

Max. Speed of Rear high speed I

28km/h

Grade ability

53%

Traction

155kN

Parameter of Travel Motor

Motor Type

Permanent Magnet Synchronous Motor

Motor Rated

100kW

Motor operating efficiency range

86%-98%

Parameter of Main Pump Motor

Motor Type

Permanent Magnet Synchronous Motor

Motor Rated

90kW

Motor operating efficiency range

86%-98%

Battery

Type

LiFePO

Battery rated storage capacity

282Kwh

Rated Capacity of Battery

456AH

Rated Voltage

618V

Rounds of full charge and discharge cycles

4000 up

Theoretical Service Life

over 8 years

Charge time

1.2-2.5

Hydraulic System

Pressure

16MPa

Flow Rate

400 L/min

Raising Time

5.5 s

Total cycle time

10 .5s

Steering System

Steering gear Model

TLF1-E1000C

Pressure

15 MPa

Steering Type

Articulated frame steering

Steering Angle

±35°

Brake Mode

Travel brake

Clamp disc brake

brake air pressure

10-14 MPa

Parking Brake

Flexible shaft operated drum brake

Size

Overall Height

3380mm

Overall Width

3000mm

Overall Length

8015mm

Wheel base

3230mm

Wheel Tread

2240mm

Bucket with

3000mm

Ground Clearance

408mm

Turning Radius( External)

≥7230mm

Driver position

Central


Driver seat

Sited


Standard Tires (Pneumatically)

Nos. of Wheels

2/2

Driving  Wheel

4 wheels Driving

Size of Tire

23.5-25-16PR
