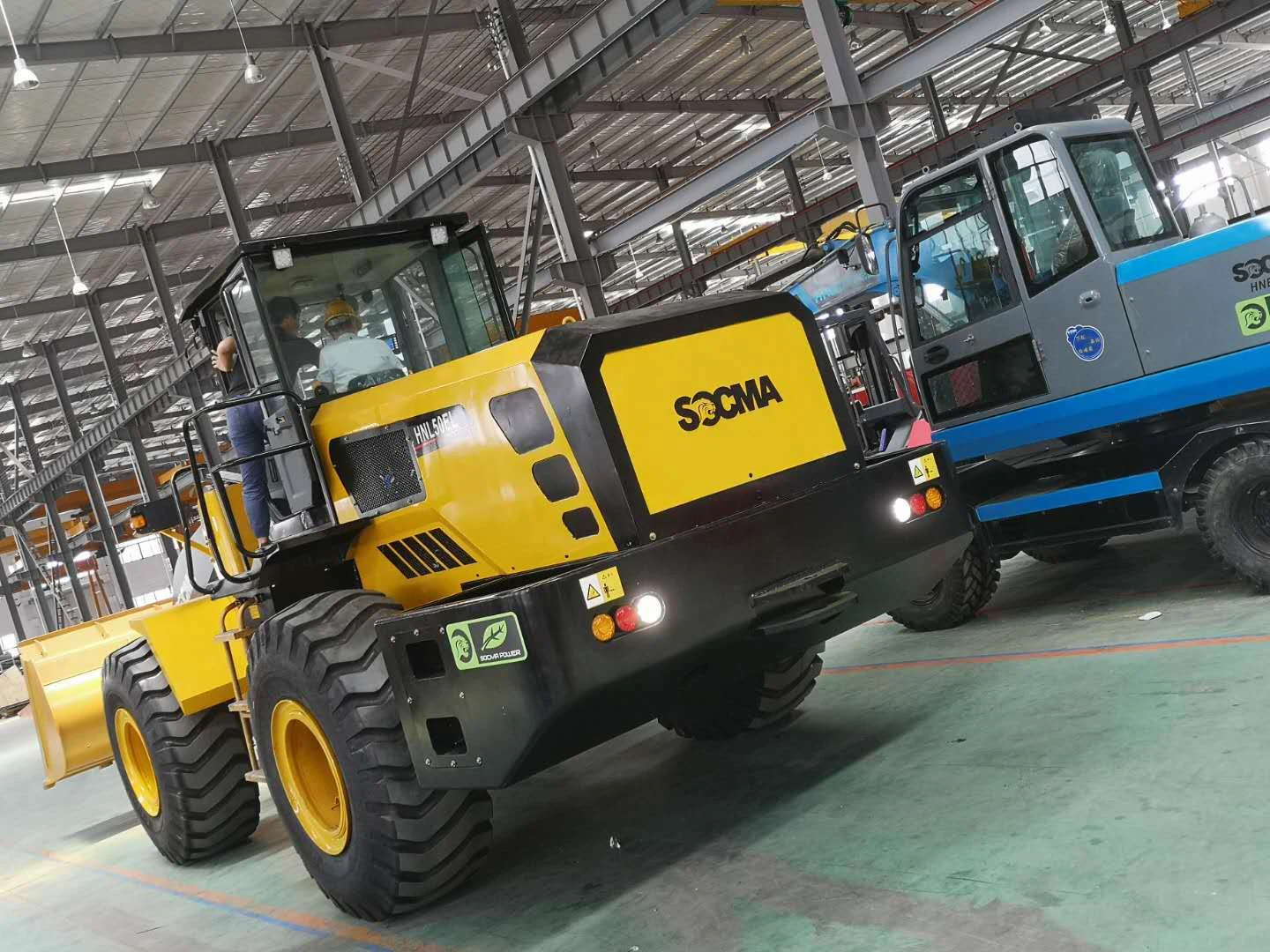

Electric Wheel Loader
Wheel Loader powered by Lithium Iron Phosphate Battery. Compare with conventional Diesel engine powered one , it has advantage of less enviromentimpact and operation cost, as it has no waste gas and less lubricant needed.
HNL50EL Parameter
u
uBasic Parameter
Bucket capacity:（m3）2.7-4.0
Operating weight:（kg）5000
Machine weight(kg）≈19200
Max. Traction Force:（KN）155±3
Max. Digging force（KN）＞170
Overall size: (L*W *H）
8115*3000*3380
Discharge Height:（mm）3062/3458
Wheel Base: 3230
Wheel Thread:mm）2240
Turning Angle:（°）35
Grade ability:(°）28
u Travel Speed (km/h）：
Gear1 | Gear2 | HG1
| HG2
| ||||||
Forward (km/h） | 7 | 14 | 30 | 57 | |||||
Backward (km/h） | 7 | 14 | 30 | 57 | |||||
Battery power system：
Battery type: Lithium Iron phosphate Battery
Temperature range of Working Climate:（℃）35-60
Thermirl Management : Heating Film; Water cooling
Rated power of storage:(kWh)141/282
Rated Current:(Ah)228/456
Recharging hours: Quick ：1.2-2.0hrs /Standard:8-10（subject to capacity of power supplier）
Recharging type: single gun charging or dual gun charging
Working Range of Voltage:(V)480-700
Cycling life 4000 次，(25℃，100%SOC)
Capacity recession rate: <30%
Theoritical life＞ 8 years (25℃,100%SOC)
IP Rate: IP67
Transmission System:
Travel Motor：Permanent Magnet Sychronous Motor (Rate: 100kw)
Peak Rate :(kW)220
Peak Torque: 2500N.m@60s
Rate Voltage: 540V
