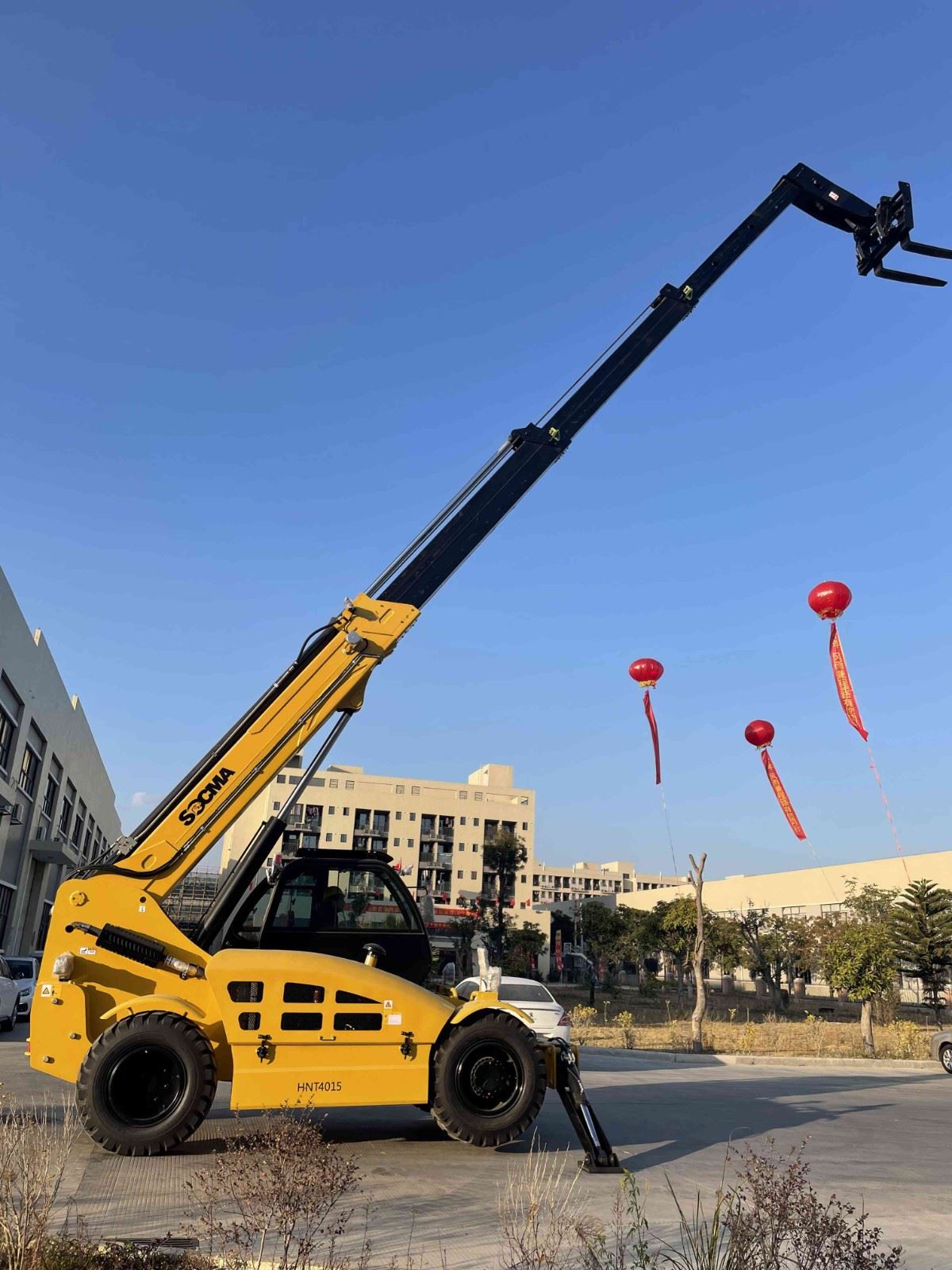

SOCMA 5ton Telehandler 9.6M
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma 5ton telehandler 9.6m in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
5 ton telescopic forklift |
Rated capacity: 5000kgs Two stage boom |
Max. Lifting height (with out trigger): 9.6m |
Max. Horizontal reach: 4.7m Rated load @ Max. Horizontal reach (with out trigger): 2500kgs Load center: 500mm |
DF Cummins engine QSB4.5-C160-30 Hydrostatic transmission |
Two wheel drive type |
Tyre size:16/70-24-24PR |
Cab with warming and cooling A/C Warming light |
With forks
SOCMA 5t Telescopic handler
(4wheel drive)
Welcome inquiry sunny@socmachinery.com,whatsApp&mobile 0086 18859225922
1.Technical Parameters
Items | Unit | Deviation allowed | HNT5010-4 | ||
Basic parameter | Rated load | kg | - | 5000 | |
Load center | mm | - | 500 | ||
Load capacity @ max. Forward reach | kg | - | 2500 | ||
Max. Lifting height | m | 1.50% | 9.6(with outrigger) | ||
9.5( without with outrigger） | |||||
Max.outreach(without forks) | m | 1.50% | 4.7 | ||
Min. Ground clearance | mm | 1.50% | 400 | ||
Min. Turning radius outer tire center | mm | 1.50% | 5500 | ||
Angle |
Boom frame upward angle | ° | ±1 | 70 | |
Boom frame downward angle | ° | ±1 | -2 | ||
Operating weight | kg | 5% | 13500 | ||
Overall dimension |
Length (with fork) | mm | 2% | 6094 | |
Width | mm | 2% | / | ||
Height | mm | 2% | 2790 | ||
Wheelbase | mm | 2% | 3070 | ||
Front wheel tread | mm | 2% | 2010 | ||
Rear wheel tread | mm | 2% | 2010 | ||
Fork size | L*W*T | mm | - | 1000*150*50 | |
Engine | DF Cummins | - | QSB4.5-C130-30 | ||
Rated power | kw/rpm | - | 97/2200 | ||
Transmission type | - | Hydraulic static transmission | |||
Driving system | Max. Travelling speed (unloaded) | km/h | 10% | 25 | |
Gradeability | % | - | 20% | ||
Tire | Front 2 pcs | - | - | 16/70-24 | |
Rear 2pcs | - | - | 16/70-24 | ||
Outrigger Opening size | mm | 10% | / | ||
Note: the above data are subject to change without prior notice. | |||||
