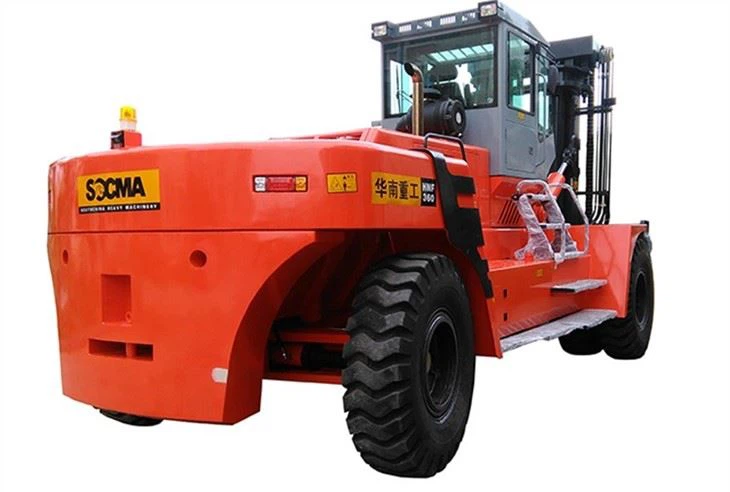

SOCMA 40t Capacity Forklift For Steel Mill
SOCMA HNF-400
Capacity:40t
Load center:1250mm
Lifting height:4 meters
ZF transmission
Cloased cabin with AC
Side shifter with fork positioner
Cummins engine
参数表 Technical Parameter | |||
项目Item | 项目内容 Desc. | 单位 Unit | 型号 Model |
HNF-400 | |||
特性 Features | 起重量/载荷 Rated Load | Q（t） | 40 |
载荷中心距 Load center | c（mm） | 1200 | |
轴距 Wheelbase | y（mm） | 5000 | |
重量Weight | 自重 Weight | kg | 51000 |
车轮底盘Chassis | 轮胎规格：前 Tyre Specs.:Front | 18.00-25-40PR | |
轮胎规格：后 Tyre Specs.:Rear | 18.00-25-40PR | ||
车轮，数量前/后（X-驱动轮） Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
轮距：前 Wheel tread:Front | b10（mm） | 3030 | |
轮距：后 Wheel tread:Rear | b11（mm） | 2786 | |
基本尺寸Dimension | 门架/货叉架前/后倾角 Mast/carriage tilt angle(front/rear) | Degree（°） | 5\10 |
门架回缩时高度 Mast height(fork lowering) | h1（mm） | 4625 | |
标准起升高度 Mast lifting height | h3（mm） | 4000 | |
作业时最大高度 Max.lifting height | h4（mm） | 6560 | |
护顶架高度（驾驶室高度） Height to head guard(height to cab) | h6（mm） | 3900 | |
总长（含货叉长度） Overall height(with forks) | l1（mm） | 10100 | |
货叉垂直前表面至车辆后端距离 Fork front vertical surface to the rear end of the vehicle | l2（mm） | 8000 | |
总宽 Overall width | b1/b2（mm） | 4160 | |
货叉尺寸 Fork dimension | s/e（mm） | 2400X300X135 | |
货叉架宽度 | b3（mm） | 3400 | |
门架下最小离地间隙 满载 Mast min ground clearance(with load) | m1（mm） | 300 | |
轴距中心最小离地间隙 满载 Wheelbase center min ground clearance(with load) | m2（mm） | 460 | |
最小转弯半径 Min.Turning radius | Wa（mm） | 8000 | |
运行速度（满载/无载） Travel speed(with load/without load) | km/h | 22/25 | |
功能参数Performance | 最大起升速度（满载/无载） Max.lifting speed(with load/without load) | mm/s | 200/250 |
最大下降速度（满载/无载） Max.Lowering speed(with load/without load) | mm/s | 430/330 | |
牵引力 Traction | kN | 250 | |
爬坡度（满载/无载） Gradeablity(with load/without load) | ％ | 25 | |
行车制动 Driving brake | 湿式多片式 | ||
内燃机 Engine | 内燃机生产厂家/型号 Engine brand/model | 可选 一 Optional one | 潍柴 Weichai engine |
WP12G340（250kW国III） | |||
可选 二 Optional two | 西安康明斯 Xi'an Cummins | ||
QSM11 250kW | |||
气缸数目Cylinder No. | 6 | ||
其他 Others | 变速箱 | 液力变矩器 | |
属具工作压力 Attachments working pressure | bar | 80 | |
属具用的油量 Attachments using oil amount | l/min | 100 | |
SOCMA heavy duty forklift main for container terminal,Bulk Cargo Terminal,Container Yard,Logistics company.
Our new range of heavy forklifts can handle loads of 10 to 50 tonnes with ease. They have been built to deliver on power and performance - yet designed to feel as agile and smooth to operate as a much smaller machine. No matter what you are lifting in your foundry, factory, terminal or assembly line, the new Kalmar Heavy Forklift range will do it efficiently, effectively and safely.
Designed for your drivers.
Our heavy forklift range comes fitted with our ergonomically designed cabin, which provides a superior operating experience for your drivers. With its smart functions and a more intuitive workspace, your drivers will be able to operate at their most productive every day, with ease.
More efficient and cost-effective.
The initial price of your new forklift is only part of the total running cost of your machine. What really matters is being able to reduce these costs without compromising on the productivity of your new machine, which is why our heavy forklift comes with numerous cost-saving features. You can reduce your fuel consumption by up to 25% with Eco-Drive, 10% with our variable hydraulic system and our new range of efficient drivetrains can cut fuel bills by an additional 5% when compared to previous generations.
