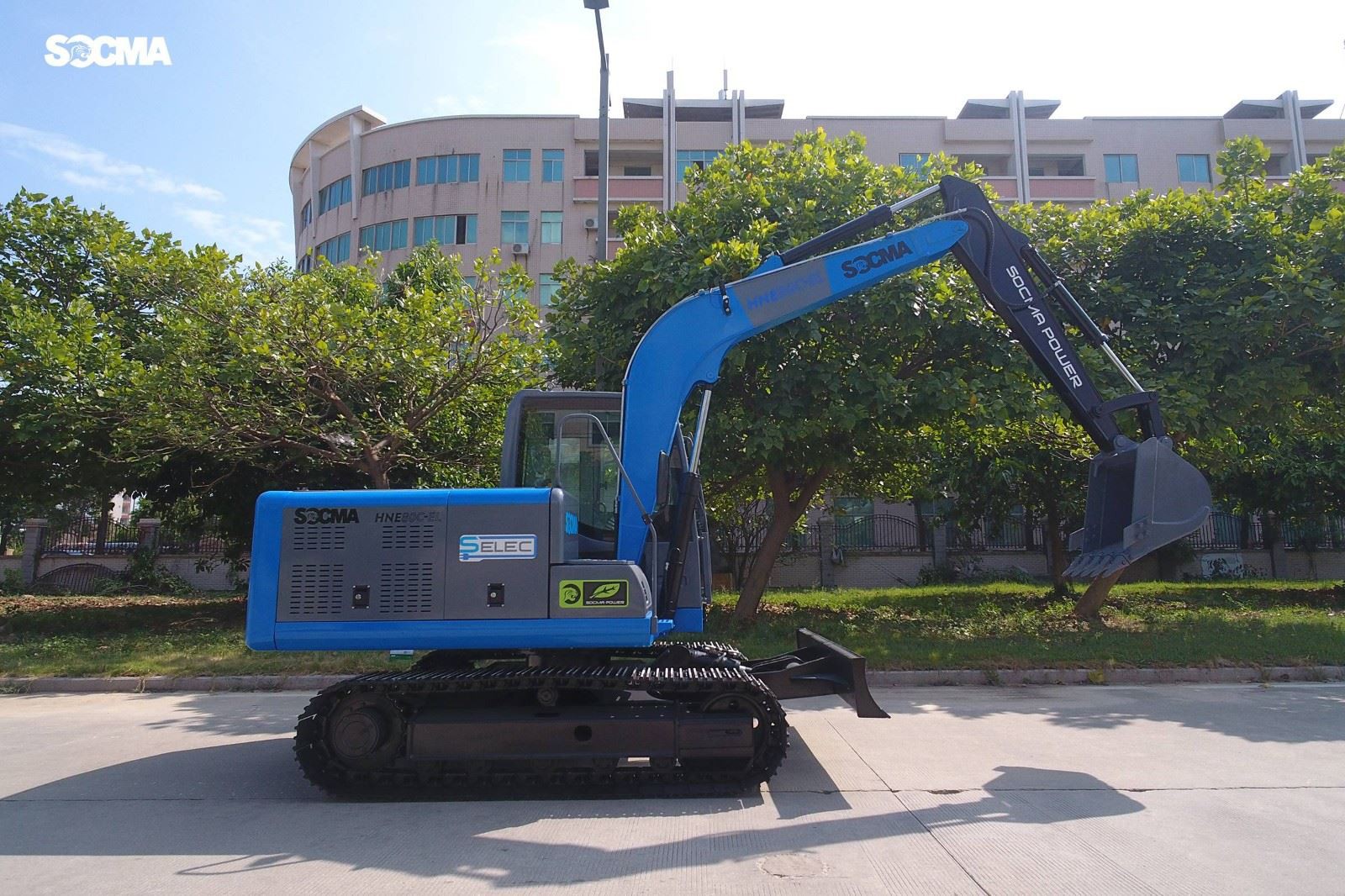

SOCMA 15ton Electric Crawler Excavator

15ton electric crawler excavator: Main application Range: Granaries Mining Municipal Tunnel construction Technical parameter:

Send Inquiry

Product Introduction

15ton electric crawler excavator:

Main application Range:

Granaries

Mining

Municipal

Tunnel construction

Technical parameter:

Description			Unit	HNE150C-EL
Overall Size	Overall Length		mm	7750
	Overall Height		mm	2760
	Track Distance		mm	2745
	Radius, Swing Center to Rear End		mm	2290
	Counterweight Ground Clearance		mm	880
	Track Gauge		mm	1960
	Overall Width		mm	2500
	Width of Upper Structure		mm	2490
	Track Shoe WidthStandard		mm	500
	Min.Ground Clearance		mm	395
Working range parameter	Max. Digging Reach		mm	8197
	Max. Digging Depth		mm	6039
	Max. Digging Height		mm	8651
	Max. Dumping Height		mm	5552
Performance parameters	Whole Machine	Operating Weight	kg	13900
		Bucket Volume	m3	0.5-0.7
		Pressure to the Ground	KPa	45
		Travel SpeedLow/High	km/h	3.1/5.3
		Rotation Speed	rpm	12.4
		Gradeability	°	35
	Working Device	Boom Length	mm	4600
		Arm Length	mm	3122
		Bucket Radius	mm	1328
	Digging Force	Max. Bucket Digging Force	kN	92.7
	Digging Force	Max. Arm Digging Force	kN	67.6
	Hydraulic system	Type		Negative flow system
		Hydraulic Tank Capacity	L	150
		Pressure	MPa	28
		Flow	L/min	300
	Main Pump Electric Motor Parameters	Motor model		HP129D8-G202W-R8U4
		Motor Type		Permanent magnet synchronous motor
		Rated power	kW	92
		Rated torque	N	440
		Highest frequency	HZ	133.3
		Rated speed	r/min	2000
		Rated voltage	V	380
		Rated current	A	175
	Battery	Type		Lithium iron phosphate battery
	Battery	Storage power	kwh	210
Note: Due to technological improvements, the above data are subject to change without prior notice.
