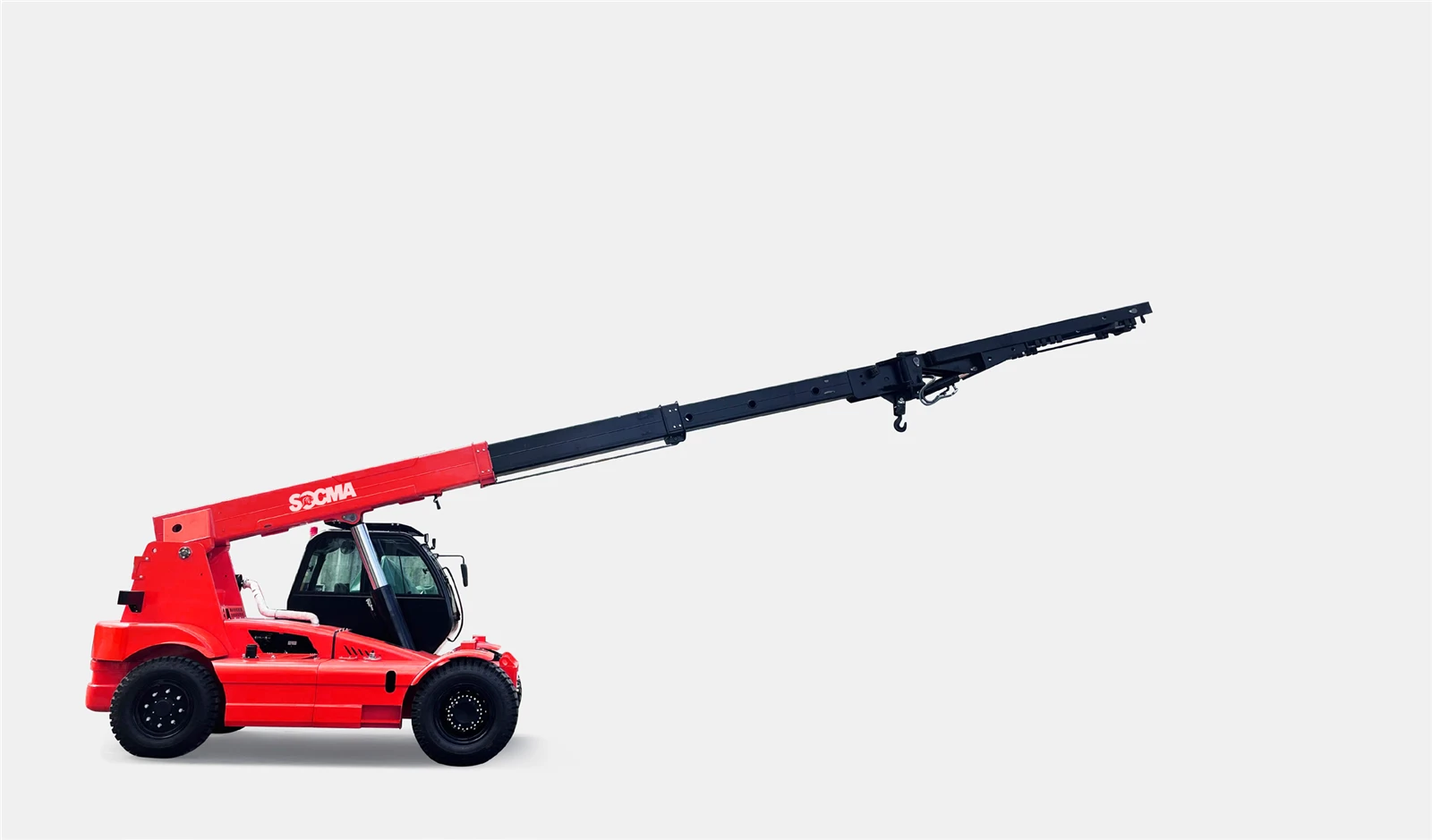

SOCMA 11ton Telehandler
2.Telescopic crane can be used as a general crane
3.With wide adaptablity and high efficiency
Fujian SOCMA Machinery Manufacture Co., Ltd. is one of the leading manufacturers and suppliers of socma 11ton telehandler in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please rest assured to buy customized equipment at competitive price from our factory.
1. SOCMA 11ton telehandler Introduction
The SOCMA TELESCOPIC FORKLIFT Series is an autonomously developed handling and lifting logistics equipment with several tasks that combine hydraulic, electrical, and mechanical aspects. Products from SOCMA's telescopic forklift range in standard, rotating, hoisting, box-in, mini and other catagories. They are tailored to meet specific customer requirements, giving you one-stop shopping for all your product need. SOCMA 11ton telehandler is a special telescopic hoisting machine for stones.
2. SOCMA 11ton telehandler Specifications
| Item | Specification |
| Rated load (kg) | 11000 |
| Operating weight (kg) |
13000 |
| Max. lifting height of the main hook (mm) | 7605 |
| Max. lifting height of the complete arm (mm) | 10300 |
| Wheel base (mm) | 2988 |
|
Front tread (mm) |
1638 |
| Rear read (mm) | 1845 |
| Min. groud clearance (mm) | 310 |
| Overall length (mm) | 5288 |
| Overall width (mm) | 2350 |
| Overall height (mm) | 2715 |
| Height of the cab (mm) | 2400 |
| Length of rear overhang (mm) | 1055 |
| Max. outreach of the main hook (mm) | 4800 |
| Max. outreach of the complete arm (mm) | 7900 |
| Tipping angle of hook, up/down (°) | 22°/24° |
| Tipping angle of big arm, up/down (°) | -14°/43° |
| Min. turning radius (mm) | 6800 |
| Max. gradeability (°) | ≥20% |
| Max. traveling speed (km/h) | 25 |
| Front tyre | 11.00-20 |
| Rear tyre | 9.00-20 |
3. SOCMA 11ton telehandler Applications
This telescopic crane loader is not only applicable to lifting the stone slabs in containers, but also can be used as a general crane, and can be widely used in factory, dock, freight yards, forestry, construction material,warehouses, logistics, and other industries, it is a loading and unloading machine with wide ability and high efficiency.
4. SOCMA 11ton telehandler Features
The chassis of the HNT110-2 telescopic crane loader is front-wheel drive, rear-wheel steering, rigid suspension; adopts hydro-mechanical transmission with two-speed forward and two-speed reverse, full hydraulic power steering; the working device is composed of the three-stage quadrilateral telescopic boom and boom quick change device and a hook.
