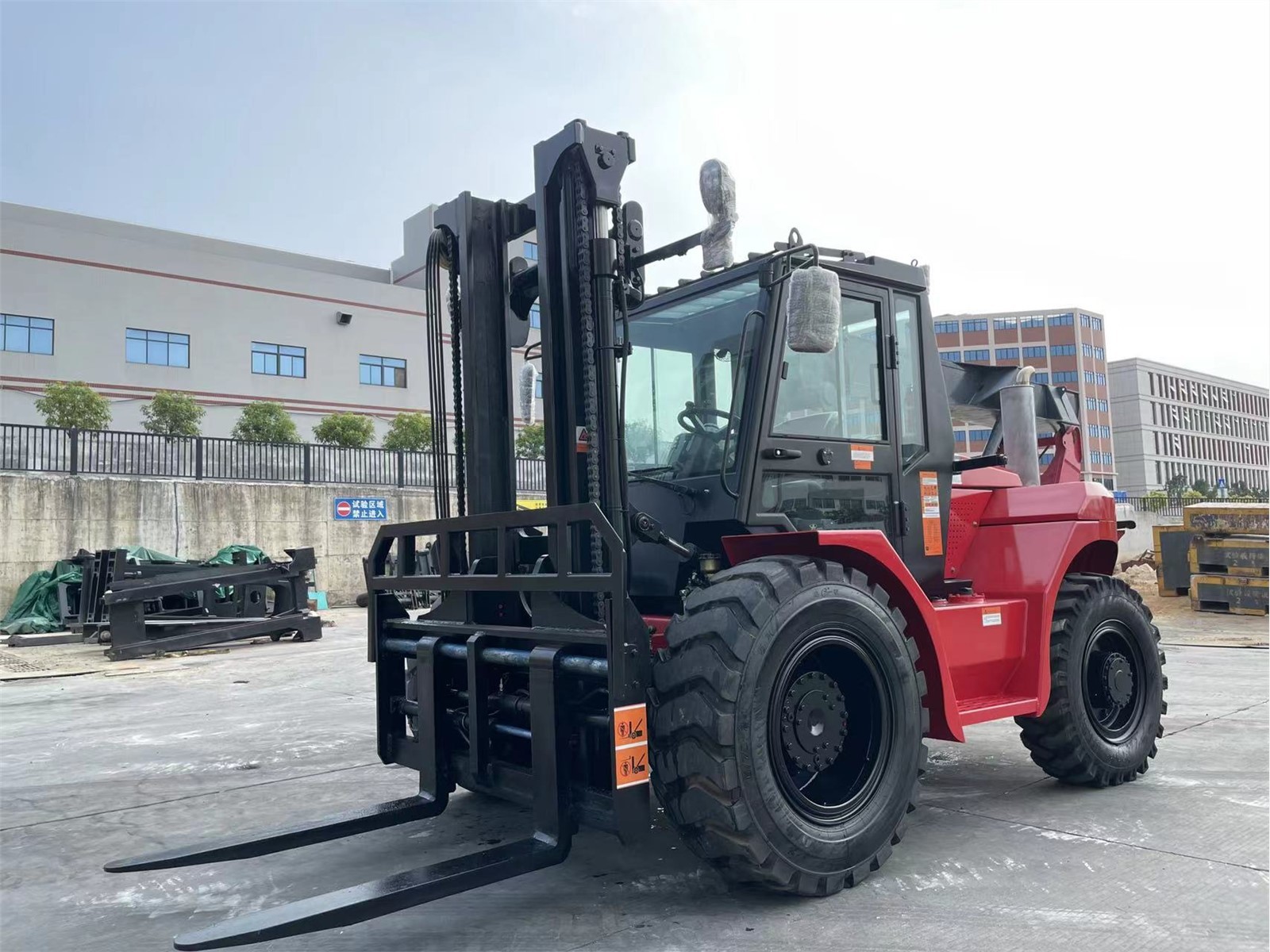

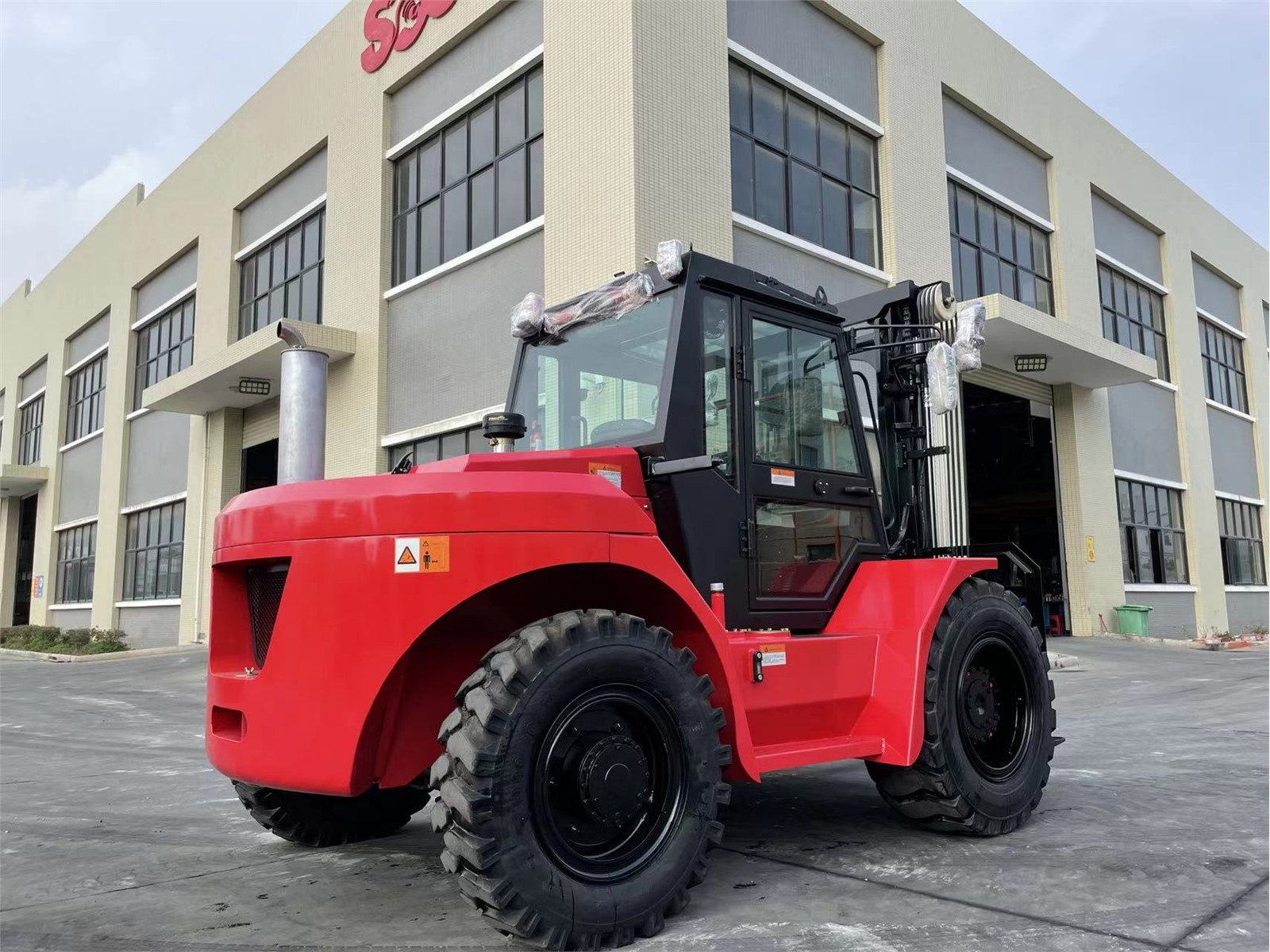

5ton Rough Terrain Forklift Four Wheel Driven
5t rough terrain forklift
With DF Cummins 4BTA3.9-C80 engine
With Customized lifting height
1200mm fork length
Four-wheel drive, two-wheel steering
Option With full cabin and AC
With Side shifter&Fork positioner
Brushes on the windshield and rear windows, window washers, spark arrestor etc.
Send Inquiry
Product Introduction
Technical parameter:
| Item | Specs. | Unit | SOCMA |
| HNF-50Y | |||
| Features | Rated Load | Q(t) | 5 |
| Load center | c(mm) | 600 | |
| Wheelbase | y(mm) | 2200 | |
| Weight | Self Weight | kg | 8700 |
| Chassis | Tyre Specs.:Front | 16/70-24-24PR | |
| Tyre Specs.:Rear | 10.00-20-16PR | ||
| Tires Qty, front/rear(X-drive wheels) | 2\2 | ||
| Wheel tread: Front | b10(mm) | 1870 | |
| Wheel tread: Rear | b11(mm) | 1840 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree(°) | 6\12 |
| Mast height(fork lowering) | h1(mm) | 2800 | |
| Mast lifting height | h3(mm) | 3000 | |
| Max. lifting height | h4(mm) | 4280 | |
| Height to head guard(height to the cab) | h6(mm) | 2600 | |
| Overall height(with forks) | l1(mm) | 5150 | |
| Fork front vertical surface to the rear end of the vehicle | l2(mm) | 3900 | |
| Overall width | b1/b2(mm) | 2280 | |
| Fork dimension | s/e(mm) | 1200X150X60 | |
| Fork carriage width | b3(mm) | 1940 | |
| Mast min ground clearance(with load) | m1(mm) | 230 | |
| Wheelbase center min ground clearance(with load) | m2(mm) | 350 | |
| Min. Turning radius | Wa(mm) | 4800 | |
| Travel speed(with load/without load) | km/h | 23/26 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 300/320 |
| Max.Lowering speed(with load/without load) | mm/s | 360/340 | |
| Traction | N | 4000 | |
| Gradeablity(with load/without load) | ％ | 20/22 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine | Brand | Dongfeng Cummins | |
| Model | 4BTA3.9-C80 | ||
| Cylinder No. | |||
| Others | Transmission gears(Front/rear) | 2\2 |
