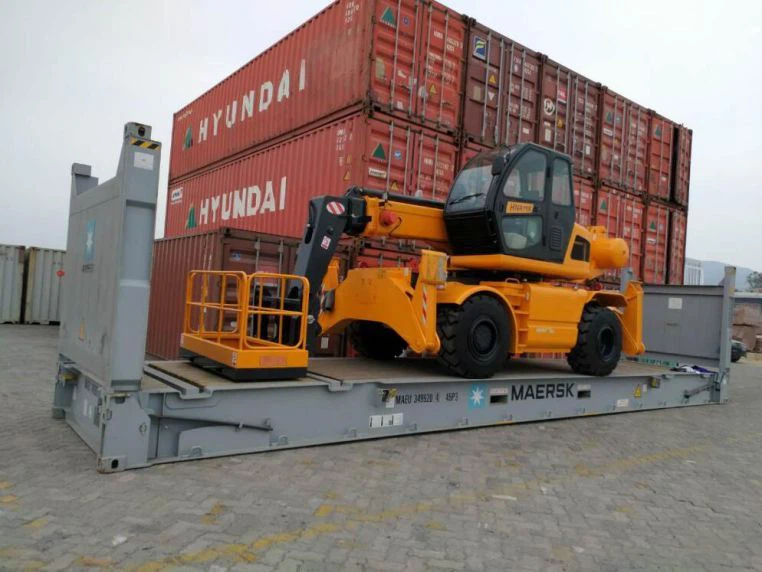

360 Degree Rotate 4ton Telehandler
360degree rotary, three-stage arm
DF Cummins Engine (National III)
Full cab with AC
Two wheel drive, two wheel steering
HNTR4015 is a multi-purposed telescopic forklift with rough terrain ability. It is with three section boom with 360 degree rotate chassis, the max. Lifting height is 15m, max. Load capacity is 4000kg, max. Horizontal reach is 10500mm
Parameter-Standard Configuration
Performance | SOCMA HNRT4015 | |
Basic parameter | Max. Lifting height (without trigger) | 15m |
Rated load capacity (lifting) | 4000kg | |
Max. Horizontal reach | 10.5m | |
Rated load @ Max. Horizontal reach (with out trigger) | 800kg | |
Load center | 500mm | |
Operating weight (unloaded with fork) | 16000 kg | |
Max. Travailing speed (km/hour) | 28 km/h | |
Swinging speed | 3 rpm(1500rpm) | |
Transmission system | Transmission type | Hydraulic static transmission |
Hydraulic (high speed / low speed) | 2 / 2 | |
Transmission gears | 2F/2R | |
Gradeability | 30% | |
Traction force | 80kN | |
System capacity | Hydraulic oil tank capacity | 300L |
Fuel tank capacity | 200L | |
Engine | Model | DF Cummins QSB3.9-C125-30 |
Rated power | 93kW/2200rpm | |
Torque | 480 Nm / 1350r/min | |
Fuel type | Diesel | |
Emission standard | National Ⅲ | |
Intake cooling | Water cooled | |
Hydraulic system | Pressure | 28 MPa |
flow | 300 L/min | |
Steering system | Steering gear type | load sensing full hydraulic steering |
Pressure | 16 MPa | |
Rear axle steering type | Transverse hydraulic cylinder steering structure | |
Steering angle | 40° | |
Brake type | Service brake | Clamp-disc brake |
Brake air pressure | 0.684-0.785 MPa | |
Parking brake | Air push drum brake | |
Main dimension | Overall height | 3513mm |
Overall width | 2550mm | |
Overall length(with fork) | 7638mm | |
Wheel base | 2800mm | |
Front wheel tread | 2030mm | |
Rear wheel tread | 2030mm | |
Ground clearance (out trigger) | 340mm | |
Turning radius (out side) | ≥5800mm | |
Operating position | Central | |
Seating type | Car type | |
Aerial working platform | Length*width*height | 1200×800×970mm |
Out trigger type | Hydraulic out trigger No. | 2F/2R |
Working boom | Telescopic working boom | 3-setion |
Fork | Length*width*thickness | 1000×122×50mm |
Max. Distance between two forks | 710mm | |
Front/Rear tilt degree | 12°/ 120° | |
Standard tire(inflatable) | (Front/Rear) Wheel Number | 2/2 |
(Front/Rear) driving wheel Number | 2/0 | |
(Front/Rear) tire dimension | 45×16-20 （36PR） | |
